10/100 BASE Ethernet Cable Connection Female Jack 8P8C RJ45 With Transformer KRJ-SH105GYLENL

Categories RJ45 1X1 21.3mm TAB-UP
Brand Name: DGKYD
Model Number: KRJ-SH105GYLENL
Certification: RoHS/CE/UL/FCC/CE/ISO9001/ISO14001
Place of Origin: DongGuan of China
MOQ: 1 piece
Price: Please contact us to get the latest price.
Payment Terms: T/T, D/P, D/A, L/C, Western Union, MoneyGram
Supply Ability: 100K pcs/day
Delivery Time: 10 days
Packaging Details: Tray in Carton
Modular Jack Type: RJ45 with integrated magnetics
Speed: Cat 5
Latch: Up
Mount Style: Through Hole
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

10/100 BASE Ethernet Cable Connection Female Jack 8P8C RJ45 With Transformer KRJ-SH105GYLENL

Ethernet Cable connection jack RJ45 8P8C Single Port cylindrical pin with led

Product Specification Document

KRJ-SH105GYLENL.pdf


Part NumberKRJ-SH105GYLENLBrandDGKYD/OEM/ODM
Product Type Connector-ModularConnector StyleJack
Jack TypeRJ45Connector Type Modular Jack
Latch StyleStandardLatchTAB-UP
FilterWith FilterLED OptionWith LED
LED ColorGreen-YellowPanel StopsWithout Panel Stops
ShieldedWith metal shieldApplies To Printedout Circuit Board
Port Configuration 1X1 PortsNumber of Positions 8
Jack Configuration1X1Terminals per Port8
Shield MaterialCopper Alloy preplated with NickelPCB Mounting Orientation Side Entry (Right Angle)
Contact Mating Area PlatingGold 6uContact Base Material Phosphor Bronze
Solder Tail Contact Plating Material Tin-Lead over NickelPCB Mounting Style Through Hole
Termination Method to PC Board Through Hole-Press-FitBoard LockWith/Without Board Lock
Housing Material PA66 PolyesterHousing ColorBlack
Housing Material  TemperatureStandardUL Flammability Rating UL 94V-0
  • 10/100Base-Tx RJ45 single port 1X1 with LEDS, right angle
  • Single port 1X1 Tab-Down RJ45 with internal magnetics
  • Internal magnetics are 100% electrically tested for HI-POT and functionality
  • Suitable for CAT5&6 fast Ethernet Cable or better UTP
  • 350uHminimum OCL with 8mA bias current
  • High performance for maximum EMI suppression
  • Minimum 1500Vrms isolation per IEEE 802.3 requirement

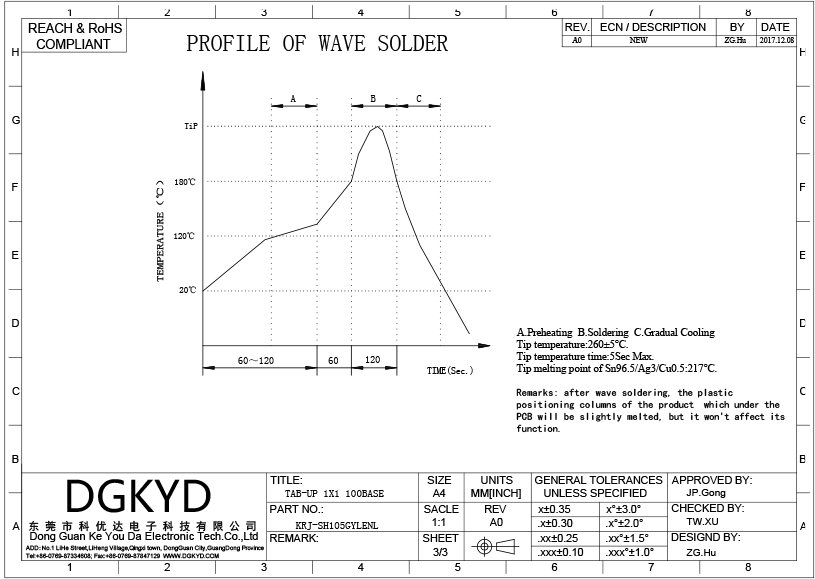

  • ROHS-6 peak wave solder temperature rating 260℃
  • Operating temperarure range :-40℃ to +85℃
  • Storage temperature range :-40℃ to +85℃
  • Number of positions:8
  • Number of contacts loaded:8
  • Shield:YES
  • Rohs compliant

Applications:

• Integrated RJ45 connector main used to :

• 10/10/1000M net card,PCMCIA net card,USB Hub,network switch,router,fiber optic transceivers,

optical transceiver,IP phone,internet set-top box,internet camera,net bridge,computer,telecommunication,

MODEM,HomePNA,DSL/ADSL and so on.

For example:
