| Categories | RJ45 1X1 21.3mm TAB-UP |
|---|---|
| Place of Origin: | DongGuan of China |
| Brand Name: | DGKYD |
| Certification: | RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 |
| Model Number: | KRJ-SH204HF |
| MOQ: | 1 piece |
| Packaging Details: | Tray in Carton |
| Delivery Time: | 10 days |
| Payment Terms: | T/T, D/P, D/A, L/C, Western Union, MoneyGram |
| Supply Ability: | 100K pcs/day |
| Price: | Please contact us to get the latest price. |
| Current Rating:: | 1.5A |
| Voltage Rating:: | 125V |
| Packaging Method: | Tray & Box |
| Connector Mounting Type: | Board |
| Housing Material: | PA66 Black |
| Contact Plating: | Glod plating 6u/15u/30u/50u |
| LED Color: | Yellow & Green |
| Gender: | Gender |
| working temperature: | -40°C~+85°C |
| Company Info. |
| Keyouda Electronic Technology Co.,ltd |
| Verified Supplier |
| View Contact Details |
| Product List |
KRJ-SH204HF Shielded Tap-up 1000 BASE Single port cat6 RJ45 Modular Jack with internal magnetics
Paramters
| Part Number | KRJ-SH204HF | Brand | DGKYD/OEM/ODM |
| Product Type | Connector-Modular | Connector Style | Jack |
| Jack Type | RJ45 | Connector Type | Modular Jack |
| Latch Style | Standard | Latch | TAB-UP |
| Filter | With Filter | LED Option | With LED |
| LED Color | L-Green / R-Yellow | Panel Stops | With Panel Stops |
| Shielded | Metal shielded | Applies To | Printed Circuit Board |
| Performance Speed | 100M BASE-TX | Grounding Options | Panel Ground and PCB Ground |
| Port Configuration | Single port | Number of Positions | 10 |
| Jack Configuration | 1X 1 | Terminals per Port | 8 |
| Shield Material | Copper Alloy preplated with Nickel | PCB Mounting Orientation | Side Entry (Right Angle) |
| Contact Mating Area Plating Material | Gold 6U | Contact Base Material | Phosphor Bronze |
| Solder Tail Contact Plating Material | Tin-Lead over Nickel | PCB Mounting Style | Through Hole |
| Termination Method to PC Board | Through Hole-Press-Fit | Board Lock | With/Without Board Lock |
| Housing Material | PA66 Polyester | Housing Color | Black |
| Housing Material Temperature | Standard | UL Flammability Rating | UL 94V-0 |

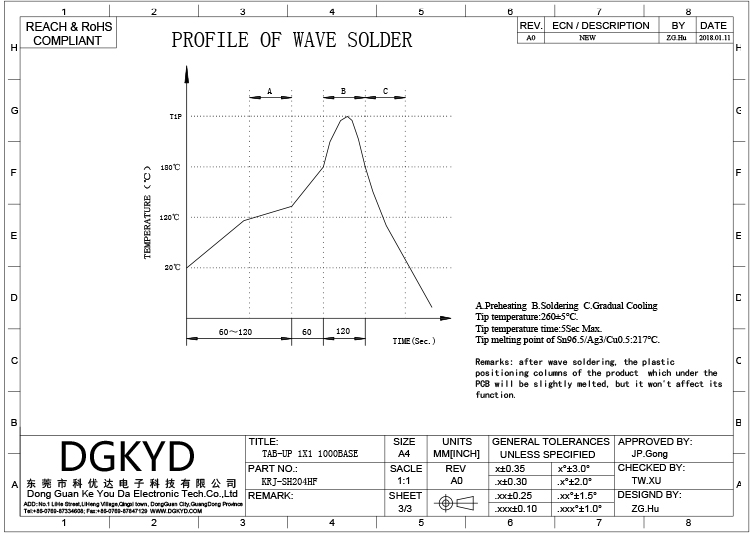

Drawing
Our Service
World’s Leader Supplier Of Integrated RJ45 Connector And Discrete
Magnetic Transformers
100% Guarantee Qualtiy
•Manufactured Under Strict Controls.
•100% Tested (Not Just Batch Tested)
•DGKYD Is OEM Of FOXCONN For 6 Years
•Successful Customer: PANASONIC/FOXCONN/HUAWEI/ZTE…
Competitive Price And Service
•More Competitive Price Than Pulse Tyco Halo And Amphenol
•Delivery Time:1-2 Weeks After Orders
•Free Samples Are Available
•Provide New Design For Customer Requirements
DGKYD Corporate Policy
•The Corporate Goal Is To Achieve The Highest Level Of Customer
Satisfaction
Through Continuous Improvements In Quality, Delivery And Service
• DGKYD Is Committed To And Expects Quality Performance From Every
Employee
• The Company Standard Is Defect-Free Products And Services
|
