IEC 60601-2-52 Rough Handling And Threshold Impact Test Device For Movement Parts Test

IEC 60601-2-52 Rough Handling And Threshold Impact Test Device For Movement Parts Test

Product Information:

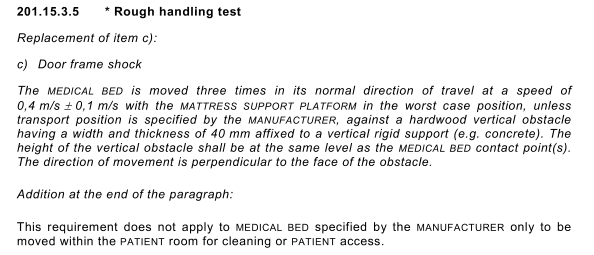

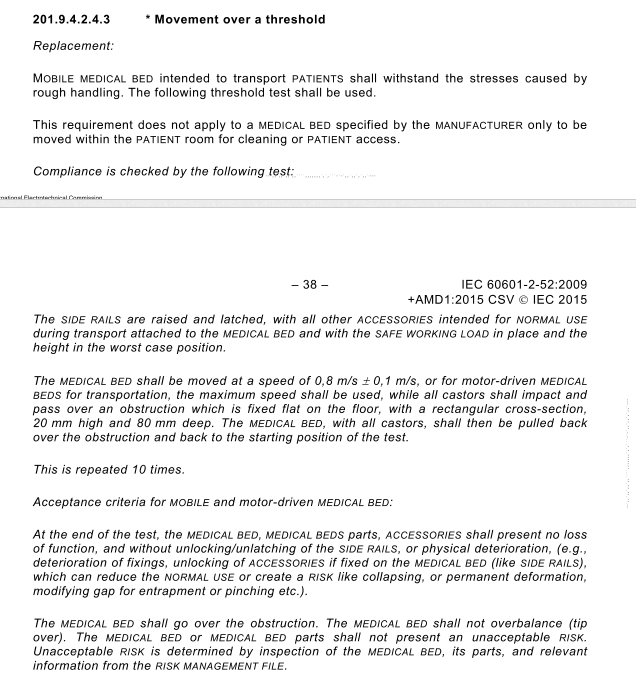

1. Standard: conform to IEC60601-1:2012, YY9706.252-2021 clause 201.9.4.2.4.3 and 201.15.3.5, IEC60601-2-52:2015.

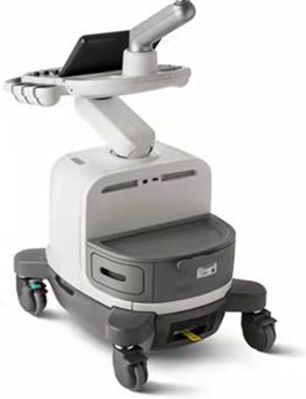

2. Samples and restrictions: Mobile ME equipment or moving parts of ME equipment.
3. Application: Whether the stress generated by mobile ME equipment or moving parts of ME equipment when subjected to rough handling and movement will cause unacceptable risks to the equipment, its mechanical strength shall be assessed. It is also used for the balance verification test of mobile ME equipment weighing more than 45kg crossing the door frame to test its stability.
4. Test principle: The motor-driven manipulator pushes the sample on the horizontal platform at a speed of 0.8m/s±0.1m/s to carry out the upper step impact test, lower step impact test, door frame impact test, and threshold crossing test.

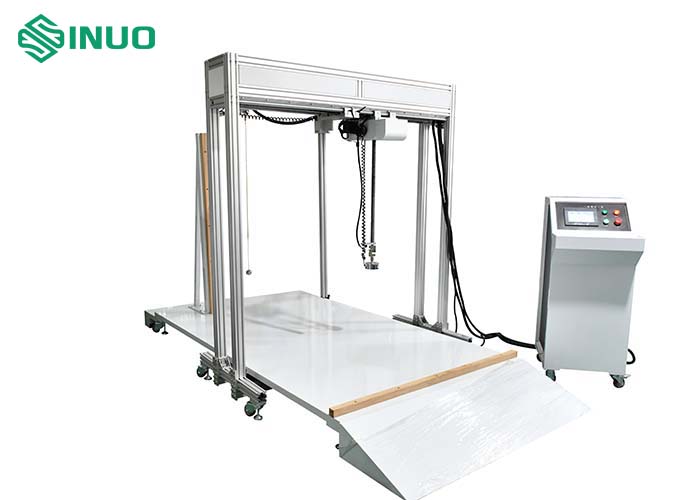

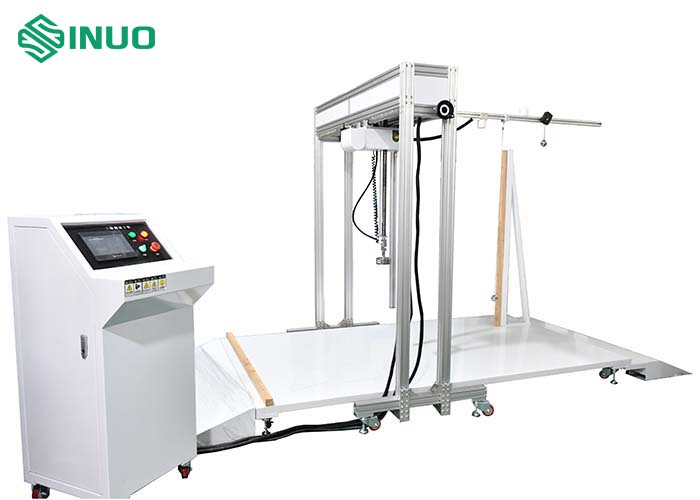

5. Equipment structure and characteristics: The device includes an extended work surface (track), with a 40mm high step and a 40mm threshold (switching installation) arranged in the middle of the table, and a 40mm wide hardwood at the end; including a servo motor, reducer, and guide rail drive mechanism.

Technical Specifications:
