High Distribution Precision Stator Needle Winding Machine With Dual Stations

High Distribution Precision Dual Station Needle Winding Machine For Motor Stator XT-02D

Product Introduction :

The motor stator coil winding machine is aimed at Inverter brushless motor manufacturing, adopts double-station needle winding design technology, Mainly used for multi-pole stator winding.

manual feeding, automatic clamping die, Multiple taps (screen setting), wire clamping, and wire cutting can be realized during the winding process.

Each action cycle will wrap 2 stators, greatly improving production efficiency, and reducing labor intensity.

The number of slots and cycles can be set by man-machine interface; Electric by PLC, display, servo motor control, set, and display, safe and reliable.

(2) Application:

The automatic motor winding machine is especially suitable for Inverter washing machine motors, Inverter cleaner motors, and another BLDC/brushless motor.

Function and Characteristics:

1. For multi-pole BLDC motor stator winding, the machine allows for manual loading and unloading, automatic clamping, winding, and shearing.

2. The frame is constructed with a thickened aluminum profile, and the table plate is made of cast iron to absorb vibration. This design ensures minimal vibration even at high winding speeds.

3. Tooling and fixture parts utilize a downward positioning mode, providing stable and reliable tightening.

4. The wire clamping and cutting structure is compact, allowing for simultaneous wire clamping and cutting.

5. The machine enables quick change-over of tooling, facilitating the rapid adjustment of stator and winding parameters through the HMI to adapt to different stator requirements.

6. It features PLC control and fault display.

7. The machine also offers double stations and high-speed needle winding.

The stator is stationary during winding. All needle movements are motorized and programmable and managed in direct drive mode (no cam system, no belts, no lead screw).

It is possible to wind:

• Inner straight slot stators
• Inner skewed slot stators
• Outer stators straight and skewed slot

Product parameters

Applicable industries:

The motor stator automatic winding machine is suitable for manufacturers of household appliances such as washing machines, fan motors, ceiling fan motors, hub motors, vacuum cleaners, mixers, hair dryers, cameras and household electric fans.

Basic information about XINGTE

Experience
XINGTE was established in 2007, with more than 17 years R & D experience in the coil winding area

Plant Size
XINGTE is headquartered in Shenzhen, with a factory area of more than 30,000 square meters, which can ensure our Strong productivity

Service
XINGTE has more than 230 technical service and after-sales staff, worldwide service points worry-free after-sales service

Patents & certificates

Patents & certificates:
XINGTE obtained 120+ Patents and related certificates

Production Capacity
XINGTE has more than 600 experienced employees, which can guarantee our Production capacity and fast delivery

Technology
XINGTE has more than 130 experienced engineers, which can ensure our strong R & D ability, also can guarantee our customization capability

Our factory

Our machine pictures

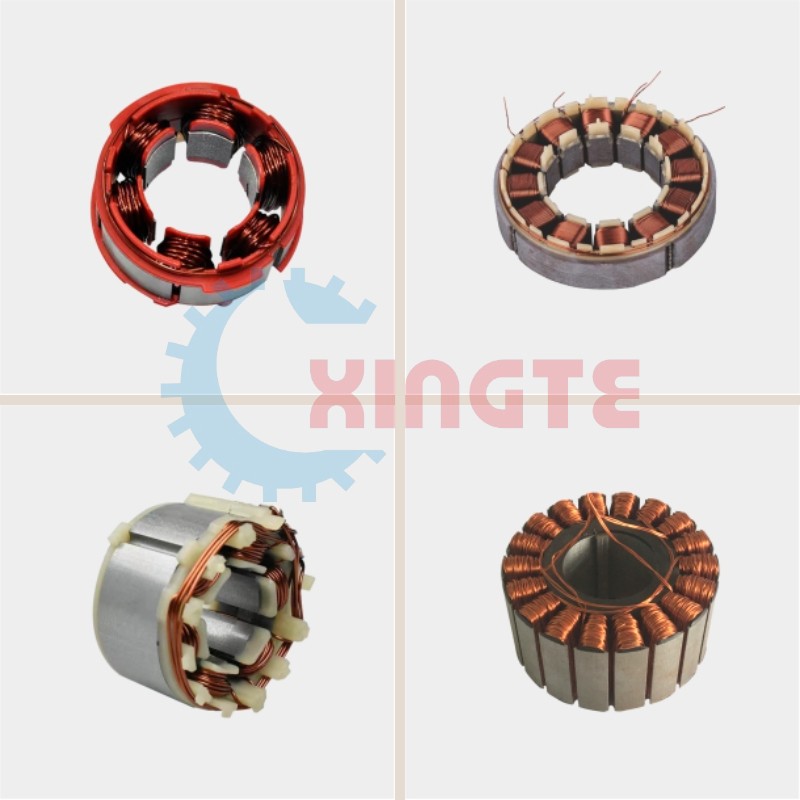

Stator coil samples
