| Categories | Smart Water Pressure Sensor |
|---|---|
| Brand Name: | Clouds |
| Model Number: | YD32 |
| Certification: | CE ROHS |
| Place of Origin: | China |
| MOQ: | 1 |
| Price: | 1-10PCS :USD8.0000/pc 10-20pcs USD12/pc |
| Payment Terms: | L/C, D/P, T/T, D/A, D/P, T/T |
| Supply Ability: | 40000/month |
| Delivery Time: | 5-7days |
| Packaging Details: | standard export package |
| Company Info. |
| Xi'an Yunyi Instrument Co., Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |
Description:
The robust construction of our product ensures resilience against vibration, shock, extensive temperature fluctuations, RFI, and other severe environmental conditions typically encountered in industrial and OEM applications. The extensive range of options includes various process connections, electrical connections, as well as all standard industry pressure ranges and output signals, fulfilling diverse application needs.

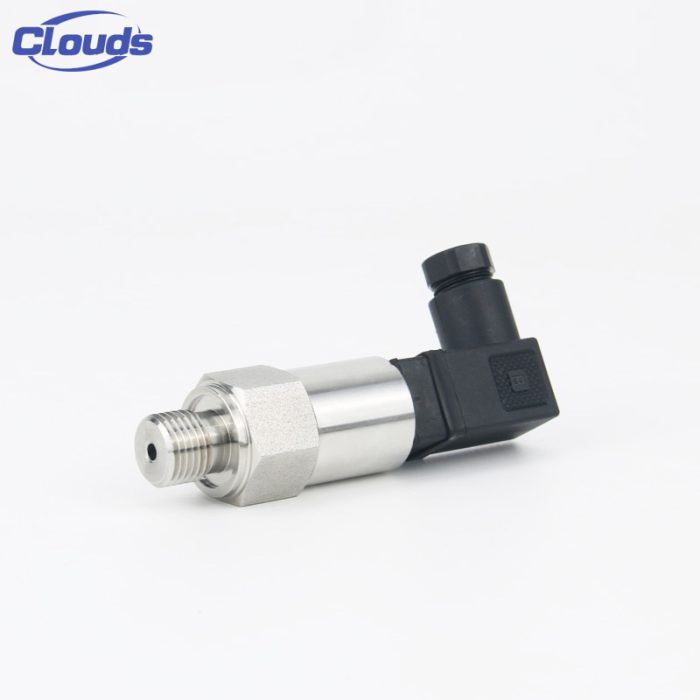

The YD32, equipped with a ceramic measuring cell, is specifically designed for handling extremely high pressures, with nominal pressures ranging from 0 to 600 bar. The ceramic sensing element offers exceptional burst/overpressure protection, making it highly resilient to mechanical stress. It operates without any wear, tear, or fatigue, ensuring long-term stability. This stability guarantees safe operation and reliable measurement results even after 100 million pressure cycles.
Specification:
| Item | Description/Options |
|---|---|
| Pressure Measurement | Gauge/Absolute pressure optional |
| Safe Overload | 150% F.S. |
| Burst Pressure | 300% F.S. (P≤100bar); 200% F.S. (P≤400bar); 150% F.S. (P=600bar) |
| Accuracy | ≤ ±1.0%F.S (Typical); ≤ ±0.5%F.S (By Customized) at 25℃ |
| Total Error Band | N/A |
| Stability | 0...50 °C max. ≤±1.0%FS; -20...80 °C max. ≤±2.0 %FS |
| Working Temp. | -20℃~80℃ (corrosive medium); -40℃~80℃ (non-corrosive medium) |
| Storage Temp. | -40℃~125℃ (Nitrile rubber sealing ring); -30℃~150℃ (fluororubber rubber sealing ring) |
| Temperature Compensation | 0℃~50℃ |
| Medium Compatible | Compatible with 304, 316 Stainless Steel according to customized |
| Electrical Wire | 2 Wires, 3 Wires |
| Output | 4-20mA, 0-5V, 0-10V, 0.5-4.5V ratiometric |
| Power Supply | 7-30Vdc, 8-30Vdc, 13-30Vdc, 5Vdc±5% |
| Insulate Resistance | >100M Ω @50V dc |
| Zero Temp. Drift | ≤0.02%F.S/℃/year |
| Electrical Connection | Terminal Box (DIN43650 Hirschmann Connector, IP65), Direct cable outlet IP67; M12 4 Pins connector P67; Packard Connector IP65 |
| Pressure Connection | 1/8’’NPT male, 1/4’’NPT male, 1/4’’NPT female, G1/2’’ male, G1/4’’male/female, 7/16’’-20 UNF male (optional) |
| EMC Standard | EN 61326-1:2013; EN 61326-2-3:2013, EN 61000-6-2:2005; EN61000-6-4:2007+A1 |
| IP Rating | IP65...IP67 by model |
| Response Time | ≤20ms |
| Certificate | CE Certificate |
