| Categories | Smart Water Pressure Sensor |
|---|---|
| Brand Name: | Yunyi |
| Model Number: | YD-2088 |
| Certification: | CE |
| Place of Origin: | China |
| MOQ: | 1pc |
| Price: | USD55-USD85/PC |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability: | 200PCS/week |
| Delivery Time: | 7days |
| Packaging Details: | Carton box |
| Item: | 2088 Explosion Proof Smart Water Pressure Sensor Transmitter Pressure Sensor |
| Model: | YD-2088 |
| Measuring medium: | Liquid, gas |
| Measuring range: | -100kpa~0~100mpa |
| Accuracy: | ±0.2%F.S |
| Signal output: | 4-20mA |
| Supply voltage: | 24VDC |
| Stability: | Six months ±0.1 URL |
| Company Info. |
| Xi'an Yunyi Instrument Co., Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |

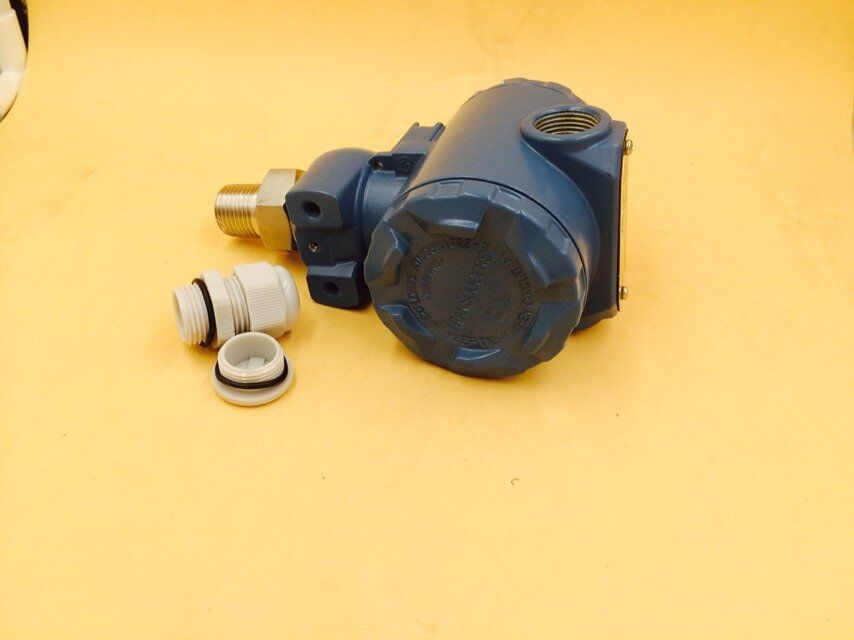

2088 Explosion Proof Smart Water Pressure Sensor Transmitter Pressure Sensor
Description Smart Water Pressure Sensor
2088 Explosion Proof Smart Water Pressure Sensor Transmitter Pressure Sensor is a pressure transmitter with extremely high reliability and superiority developed by our company with the introduction of international advanced sensor technology and production equipment. The sensitive original is the original imported quartz film pressure sensor core. The whole machine has been assembled and strictly tested by standard processes to meet the technical indicators of similar original imported products and have both consistency, and achieve the characteristics of reliable compatibility in industrial production. (Note: According to different occasions, the sensor core can also be equipped with silicon piezoresistive core and ceramic core).
Specification Smart Water Pressure Sensor
| Through current | Rated range: 4-20mA Limit range: 24mA |
| Temperature range | Rated operating range: 0-40℃ Limit working range: -20~50℃ |
| Relative humidity | 20%~80%RH |
| Display range | -1999~1999 |
| Accuracy grade | ±0.2%FS+1 word |
| Display mode | black LCD characters, character height 8.5mm×character width 4mm, backlight can be added |
| Panel size | diameter 38mm×16mm height |
| Chassis size | diameter 48mm×2mm thickness |
| Fixing method | screw to fix the chassis |
Features Smart Water Pressure Sensor
Wide pressure measurement range (-0.1~1.0MPa/100MPa/300MPa
optional);
Wide temperature measurement range
(-60℃/-45℃...+85℃/+125℃/150℃/300℃ optional);
Wide measuring range of medium, suitable for various gases, liquids
and steams of stainless steel and titanium alloy;
Communication mode: analog 4~20mA or 1~10V output with HART Modbus
485 communication;
Laser marking, strong recognition;
Sealing method: end face seal or double "O" seal ring seal;
Strong expansion function, adjustable range, analog quantity,
switch quantity, digital communication optional;
The integrated pressure-sensitive diaphragm has no oil filling, no
sticking, and strong resistance to vibration and impact;
|
