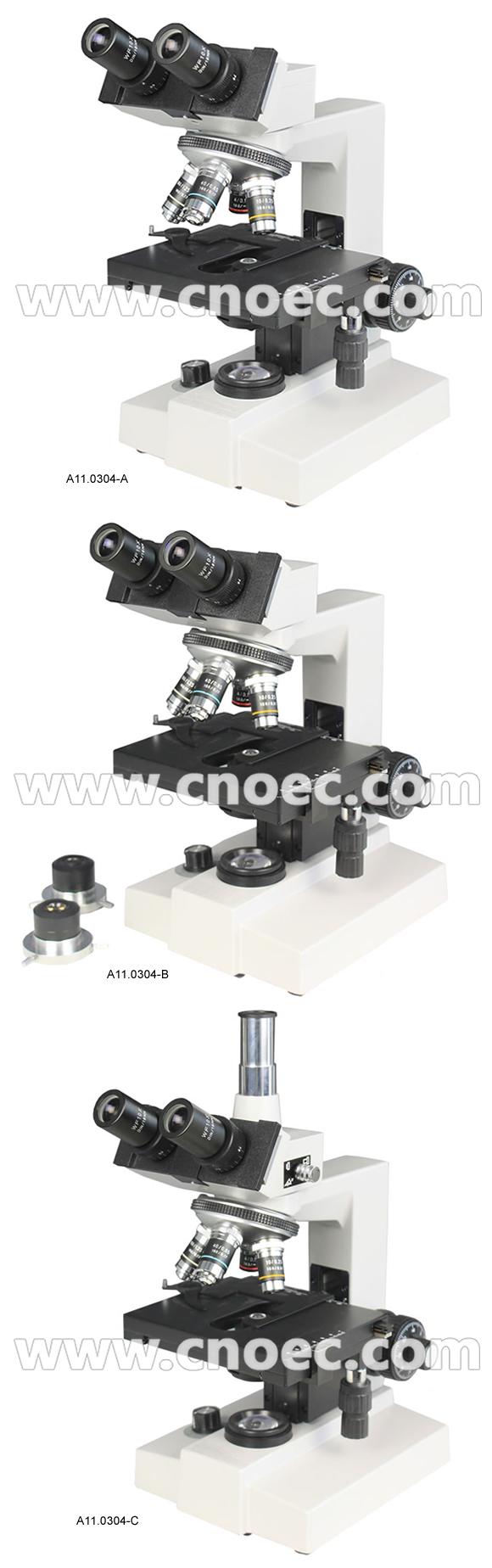

40x - 1000x Binocular / Trinocular Biological Microscope with diaphragm Objective A11.0304

40x - 1000x Binocular / Trinocular Biological Microscope with diaphragm Objective A11.0304


A11.0304 Student Microscope,

--Achromatic Objectives
--WF10x/18mm
WF16x/11mm Wide Field Eyepiece
--Binocular, Trinocular Head Optional

--Mechanical stage


Specification
A11.0304 Biological Microscope
A
B
C
Head
Binocular Head, inclined 30°, interpupillary distance 55-75mm
Trinocular Head, inclined 30°, interpupillary distance 55-75mm
Eyepiece

WF10x/18mm

WF16x/11mm
NosepieceQuadruple nosepiece
ObjectiveAchromatic Objective 4x/NA 0.1
Achromatic Objective 10x/NA 0.25
Achromatic Objective 40x(s)/NA 0.65
Achromatic Objective 100x(s,oil)/NA.1.25
Achromatic 100x/0.9-1.25(O,S), with diaphragm
StageMechanical stage size 160x130mm, moving range 76x50mm, minimum vernier division 0.1mm
FocusingCoaxial coarse & fine focusing knob, coarse focusing range 20mm, fine focusing division 0.002mm
CondenserDark field condenser( dry & immersion)
N.A.1.25 Abbe condenser, up/down range 15mm
FilterBlue filter , Yellow filter, Ground glass
Light Source6V 20W Halogen lamp, brightness adjustable
Optional Accessory
Item No.
EyepieceWF20xA51.0301-20
ObjectiveAchromatic 20x (S)A52.0301-20
Achromatic 60x (S)A52.0301-60
Plan 4xA52.0303-04
Plan 10xA52.0303-10
Plan 20x(S)A52.0303-20
Plan 40x(S)A52.0303-40
Plan 60x(S)A52.0303-60
Plan 100x(O,S)A52.0303-100
FluorescentA57.0301 Epi-Fluorescent Unit
--B(Blue), G(Green) exciting light filter system
--100W super high pressure spherical mercury lamp
--Ultraviolet light resist screen
A57.0371-01
A57.0302Epi-Fluorescent Unit
--B(Blue), G(Green), U(Ultraviolet), V(Violet) exciting light filter system
--100W super high pressure spherical mercury lamp
--Ultraviolet light resist screen
A57.0372-02
