| Categories | Thermal Conductive Glue |
|---|---|
| Brand Name: | Ziitek |
| Model Number: | TIE™ 280-12AB |
| Certification: | RoHs |
| Place of Origin: | China |
| MOQ: | 2kg/LOT |
| Supply Ability: | 1000KG |
| Delivery Time: | 2-3 work day |
| Packaging Details: | 1kg/can |
| Color: | Black |
| Viscosity@25℃ Brookfield: | 35000 cPs |
| Specific Gravity: | 1.6 g/cc |
| Thermal Impedance @10psi: | 0.36 ℃-in²/W |
| Dielectric Constant: | 4.2 MHz |
| Service temperature: | -40℃ to +130℃ |
| Company Info. |
| Dongguan Ziitek Electronic Materials & Technology Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

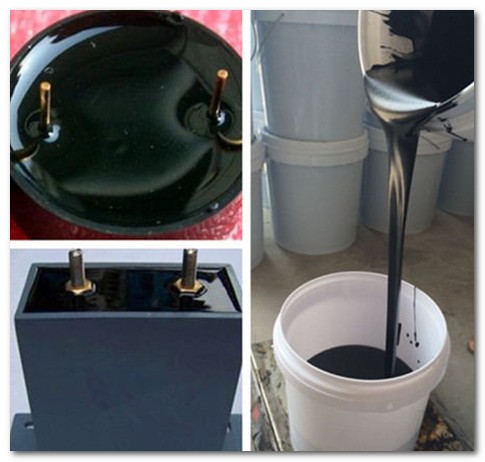

Two Component Epoxy Thermal Conductive Glue for Potting LED Lighting Heat Spreader
TIE™ 280-12AB is a two compound, high thermal conductive, low temperature cured, long pot life, fire resistant epoxy encapsulant compound. It is design for potting of capacitors and electrical devices.
Features
> Good thermal conductive: 1.2W/mK
> Excellent insulation and smoothly sourface.
> Low shrinkage
> Low viscosity, expediting air releaseed.
> Excellent in solvents and water proof.
> Longer life time.
> Excellent thermal shock efficiecy and impact resistance
Application
> Automotive starters potting; General potting Thermal detector potting
> Ferrite adhesion; TIP type LED; Good adhesion to aromatic polyester
> Relay sealant; Good adhesion to rubber, ceramics PCB and plastics
> Power transformers and coils; Potting capacitors Potting of small electrical devices
> Adhesion to metal glass and plastic LCD & substrates adhesion; Coating and sealant; Coil ; IGBTS; Transformer; Fire retardant
> Optical / medical component adhesive
| Typical Uncured Material TIE™ 280-12A (Resin) | |
| Color | Black |
| Viscosity@25℃ Brookfield | 3,000 cPs |
| Specific Gravity | 1.6 g/cc |
| Shelf life @25℃ in sealed container | 12 months |
| TIE™ 280-12B (Hardener) | |
| Color | Black |
| Viscosity@25℃ Brookfield | 5,000 cPs |
| Shelf life @25℃ in sealed container | 12 months n |
| Mix Ratio (By weight) TIE™ 280-12A : TIE™ 280-12B = 100 : 100 | |
| Viscosity @25℃ | 4,000 cPs |
| Working pot life (250 g @25℃) | 45 min |
| Specific Gravity | 1.6 g/ccn |
| Cure Schedule | |
| Cure 12 hours at 25℃ | |
| Cure 30 minutes at 70℃ | |
| Cured Properties | |
| Hardness @25℃ | 85 Shore D |
| Service temperature | -40℃ to +130℃ |
| Glass transition temperature Tg | 92℃ |
| Elongation | 0.10% |
| Coefficient of thermal expansion, / ℃ | 3.0 X 10-5 |
| Fire resistance UL | Meet 94 V-0 |
| Moisture absorption % wt gain 24 hours water immersion @25℃ | 0.1 |
| Thermal | |
| Thermal Impedance @10psi | 0.36 ℃-in²/W |
| ELECTRICAL AS CURED | |
| Dielectric Strength | 300 volts / mil |
| Dielectric Constant | 4.2 MHz |
| Dissipation factor | 0.029 MHz |
| Volume resistivity, ohm-cm @ 25℃ | 3.0 X 1012 |
|
