Black Highly Thermal Conductive Epoxy Glue Two-Component Epoxy
Adhesive Excellent Heat

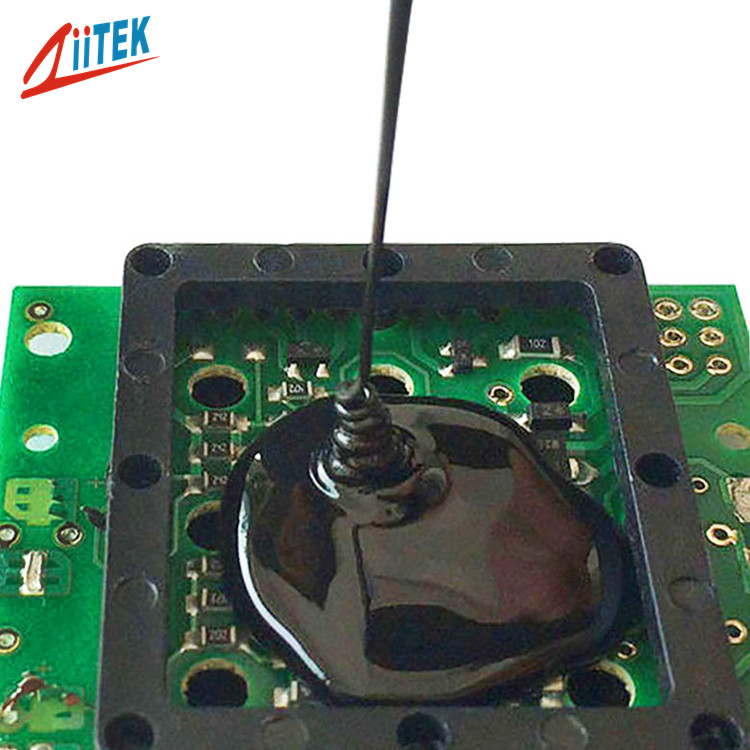

TIE™280-12AB is a two compound, high thermal conductive, low temperature cured,
long pot life,fire resistant epoxy encapsulant compound. lt is
design for potting of capacitors and electricaldevices.
TIE280-12AB-Series-Datasheet (2).pdf
Feature
> Good thermal conductive: 1.2W/mK
> Excellent insulation and smoothly sourface.
> Low shrinkage
> Low viscosity , expediting air releaseed.
> Excellent in solvents and water proof.
> Longer life time.
> Excellent thermal shock efficiecy andimpact resistance
Applications
> Automotive starters potting; General potting;
> Thermal detector potting
> Ferrite adhesion; TIP type LED; Good adhesion toaromatic
polyester
> Relay sealant; Good adhesion to rubber, ceramics,PCB and
plastics
> Power transformers and coils; Potting capacitors;Potting of
small electrical devices
> Adhesion to metal glass and plastic;LCD & substrates adhesion;
Coating and sealant;Coil ; IGBTS;Transformer; Fire retardant
> Optical / medical component adhesive
| Typical Properties of TIE280-12AB Series | |||
| Typical Uncured Material | |||
| TIETM280-12A(Resin) | Mixing ratio (weight ratio) A:=1 :1 | ||
| Color | Black | ||
| Viscosity @25℃ Brookfield | 15000 cPs | Viscosity @25℃ Brookfield | 10000 cPs |
| Operating time (@25℃) | 45 mins | ||
| Shelf life @25℃ in sealed | 12 months | specific Gravity | 1.6 g/cc |
| Mixture Color | Black | ||
| TIE280-12B(Hardener) | Cure Schedule | ||
| Color | Black | Cure at 25C | 3 hrs |
| Viscosity @25℃ Brookfield | 7000 cPs | ||
| Shelf life @25℃ in sealed container | 12 months | Cure at 7o°c | 30 mins |
| Cured Properties | |||
| Hardness @25℃ | 85 Shore D | ||
| Operating temperature | -40℃ ~160℃ | ||
| Glass transition temperature Tg | 92℃ | ||
| Rate of tension | 0.10% | ||
| Coefficient of thermal expansion, /℃ | 3.0x 10^(-5) | ||
| Fire resistance uL | 94 V-0 | ||
| Moisture absorption % wt gain 24 hours water immersion @25℃ | <0.1% | ||
| Thermal Conductivity | 1.2 W/m-K | ||
| Dielectric Breakdown Voltage | 300 volts / mil | ||
| Dielectric Constant@1MHz | 4.2 | ||
| volume resistivity, ohm-cm @ 25℃ | 3.0x 10^13 | ||
Package & Delivery:
1kg/can
5KG A/B each.
10KG A/B each.
Lead Time :Quantity 200KG 3-5 working days.
Est. Time(days): To be negotiated.
Comapany Profile
Ziitek Electronic Material and Technology Ltd. is a R&D and production company, we have many production lines and processing technology of thermal conductive materials, owns advanced production equipment and optimized process, can provide various thermal solutions for different applications.
FAQ:
Q: Are you trading company or manufacturer ?
A: We are manufacturer in China.
Q: How long is your delivery time?
A: Generally it is 3-7 work days if the goods are in stock. or it is 7-10 work days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra cost?
A: Yes, we could offer samples free of charge.
|
