Durable Aramid Fiber Braided Gland Packing For Valves & Pumps Seal

Categories PTFE Packing
Brand Name: 3A Rubber
Model Number: 3A3004
Certification: ROHS/FCC/SGS
Place of Origin: China
MOQ: 10pieces
Price: negotiation
Payment Terms: T/T, L/C, Paypal, Western Union
Supply Ability: 10000kgs per month
Delivery Time: 10 working days after received your payment
Packaging Details: Packed in cartons
Material: PTFE and aramid yarn fiber
Color: yellow
Structure: lattice braid
PH range: 0-14
Working temperature: -150 ~ +650°C
Size: 3-50mm x 3-50mm x 5, 10, 15kgs
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

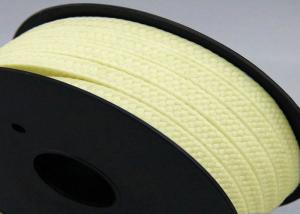

Durable Aramid Fiber Braided Gland Packing For Valves & Pumps Seal

aramid fiber braided gland packing for valves & pumps

Packaging & Delivery

Packaging Details:per 5 or 10 kgs in one roll, carton box, export wooden box or pallets
Delivery Detail:against purchase quantity

Specifications

1. Material:PTFE & aramid fiber
2. Temperature resistance:-50 ~ +650 degree C
3. PH range:2~12
4. Application:pumps in all industry


Detailed Introduction

Aramid fiber packing is braided from high quality Dupont aramid fiber with PTFE impregnated and lubricant additive. It shows good chemical resistance, high elasticity and very low cold flow. It can resist severe media and higher pressure. The packing is lubricated with silicone based compound for quick and easy break-in.


Product Features

  • It is wear resistant but may damage the shaft if not used properly.
  • A minimum shaft hardness of 60HRC is therefore recommended.
  • Superior performance
  • Lower frictional factor

MaterialAramid Fiber (with or without PTFE impregnated)
Temperature Range-100 up to +280 oC
Rotating25 bar
Reciprocating100 bar
Static250 bar
Shaft Speed25m/s
PH2~12
DensityAppr. 1.4g/cm3

Typical Application

  • This is a universal packing which can be used for pumps in all types of industry.
  • Chemical, petrochemical, pharmaceutical, food and sugar industries, pulp and paper mills, etc.
  • A durable packing able to withstand granular and abrasive applications.
