Brand Name: | HWA |
Model Number: | PR4 |
Certification: | RoHS |
Place of Origin: | China |
MOQ: | 1000pcs |
Payment Terms: | T/T, Western Union |
Supply Ability: | 100,000pcs |
Delivery Time: | 15 to 20 days |
Packaging Details: | Standard CTN package or according to customer’s requirement |
power: | 50W~2000W |
extra-high-heating-efficiency: | fin pitch: 1.2m/m, 1.68m/m |
Extra-low-air-resistance: | Fin pitch: 2.0m/m, 2.6m/m |
surface temperature: | 50℃~280℃ |
origin of place: | Guangdong |
material: | ceramic, aluminum |
dimension: | customized |
power source: | electric |
Voltage: | 220V |
material of heat sink: | aluminum |
Company Info. |
Shenzhen Hwalon Electronic Co., Ltd. |
Verified Supplier |
View Contact Details |
Product List |

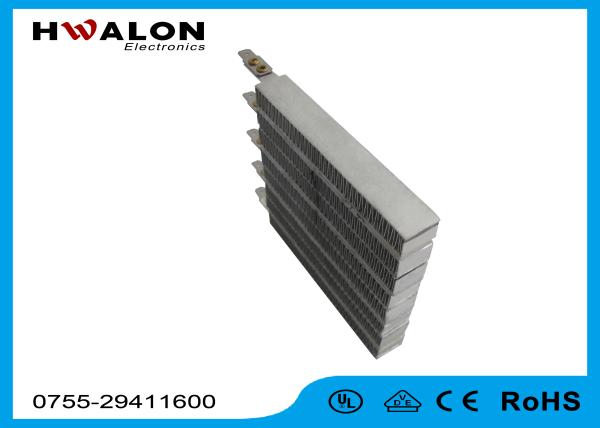

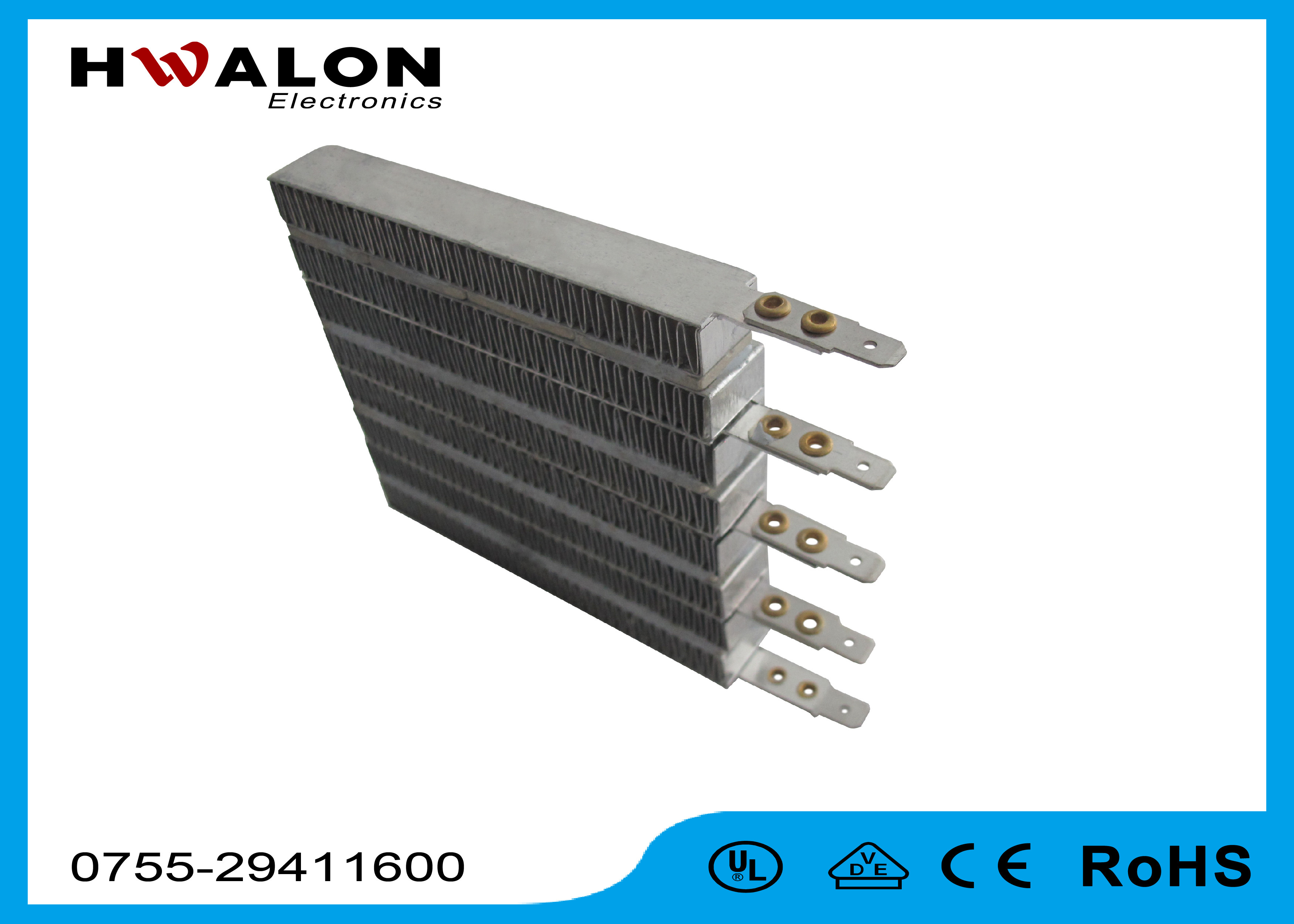

Facial Sauna / Humidifier PTC Air Heater Ceramic Heating Element
With Safety Fuse Protection
Specifications:
Models | Dimension(mm) | Aluminum tubes | Fin width(mm) | Fin pitch(mm) |
MH | 26*90*L | 3 | 90 | 1.2(S), |
MSH | 26*65*L | 3 | 65 | 2.6(B), 1.68(M) |
SH | 26*65*L | 2 | 65 | 1.68(M) |
OH | 26*30*L | 1 | 30 | 1.68(M) |
SS | 148*44.5*15/ 148*22.5*15/ 120*107*15/ 96*88.5*15/ 96*22.5*15/ 25*22.5*15/ 45*44.5*15 | N/A | N/A | N/A |
Input current: 2A to 30A
Rated voltage: 24V to 240V
Applications:
applications | hair dryer, clothes dryer, iron, laminating machine, adhesive
sealing machine, 3C products and other outdoor electronic devices,
air conditioner, hand dryer |
Description:
1. Does not cause oxygen shortage when used for a long time;
2. Internal safety-fuse protection;
3. Current will automatically cut-off to prevent abnormal large
current or other external factors causing safety concerns;
4. Water-proof, no electricity leakage or cause short circuit;
5. Heating power and self-regulating function is in correlation to
the heat dissipation rate.
6. The higher the temperature, the more power efficient;
7. When heated under no airflow, does not crack, burst or burn;
Competitive Advantage:
1. No thermostat required;
2. Self regulating heating control;
3. Long service life;
4. High reliability, impossible to overheat.
5. Very low air resistance, high efficiency;
6. No smell, no radiation;
facial sauna and humidifier use ceramic PTC Air Heater 1000W 220V
