| Categories | PTC Ceramic Air Heater |
|---|---|
| Brand Name: | HWA |
| Model Number: | PR4 |
| Certification: | RoHS |
| Place of Origin: | Guangdong,China |
| MOQ: | 1000pcs |
| Price: | Negotiation |
| Payment Terms: | T/T, Western Union,Paypal |
| Supply Ability: | 100,000pcs |
| Delivery Time: | 15 to 20 days |
| Packaging Details: | Standard CTN package or according to customer’s requirement |
| Voltage: | 220V |
| Application: | Anti - Condensate Device |
| Heater Material: | Aluminum Material |
| Heater Shape: | Square Size |
| Power: | 400W |
| Heater Size: | 48 × 50 × 30mm |
| Target Market: | Europe,North America |
| Company Info. |
| Shenzhen Hwalon Electronic Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

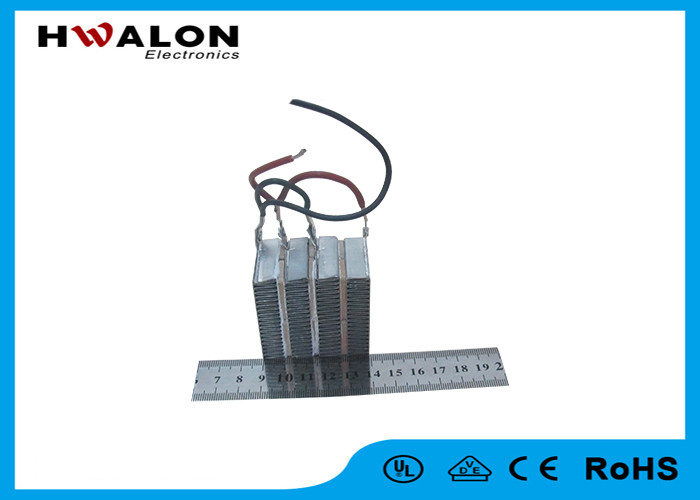

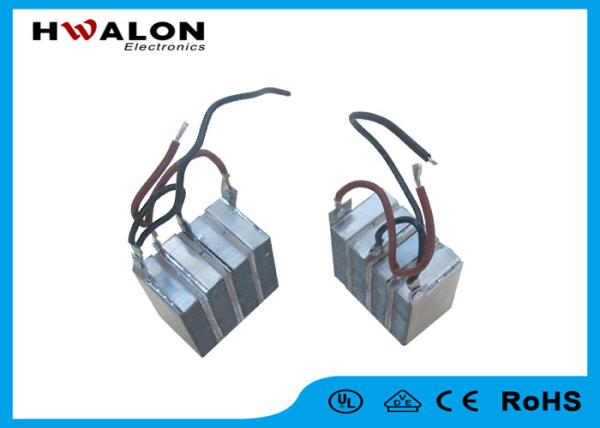

220V 400W Anti - Condensate Device PTC Air Heater With Terminal / Colorful Wire
| Item | Parameters |
| Heater Shape | Square shape |
| Heater Size | 48 × 50 × 30mm |
| Heater Material | Aluminum |
| Design | Ripple Design |
| Inner PTC Element Shape | Rectangular size |
| Inner PTC Element Material | Ceramic |
| Power | 400W |
| Voltage | 220V/240V |
This PTC Heater is used for Anti - Condensate Device.
It also can be used in:
| Air Cleaner | Body Dryer |
| Central Air-conditioner | Biology heating |
| Massage apparatus | Physical treatment |
1. With the charcteristics of constant temperature,the PTC Heater does not need the temperature-controlling system.
2. If the PTC Heater is used to heat the cold wind,it will not be
destroyed when the wind is stopped.
3. If the PTC Heater is used to heat the liquid (eg: water),it will
not be destroyed when the liquid is burnt to be dry.
4. Not sensitive to voltage fluctuating, and wide range of
operating voltage.
5. Restore automatically after invalidation.
Description:
| 1. | Does not cause oxygen shortage when used for a long time; |
| 2. | Internal safety-fuse protection; |
| 3. | Current will automatically cut-off to prevent abnormal large current or other external factors causing safety concerns; |
| 4. | Water-proof, no electricity leakage or cause short circuit; |
| 5. | The higher the temperature, the more power efficient; |
| 6. | When heated under no airflow, does not crack, burst or burn |
Specifications:
| PTC Air Heater Models | ||||
| Models | Dimension(mm) | Aluminum tubes | Fin width(mm) | Fin pitch(mm) |
| MH | 48 × 50 × 30mm | 3 | 90 | 1.2(S), 2.6(B), 2.0(N) |
Each product will be packed in carton.
The outer cartons of the goods, which white plastic strap is
pasted, to keep from busting out once the goods is facing creaking
and striking.
In general, the goods can be sent to you by Express,by sea,any way
you like.
Delivery:
15 ~ 20 days is needed for mass production after payment received. Then send out as customers' demands.
|
