Place of Origin: | China |
Brand Name: | Shuanglong |
Model Number: | SLDF |
Certification: | CE |
Bag Material: | Plastic |
Machine Type: | Sealing Machine |
Bag Type: | Shopping Bag, Flat Bag |
Computerized: | Computerized |
Main Markets: | North America, South America, Southeast Asia, Africa, Mid East, Eastern Asia |
Type: | Side Sealing Bag Making Machine |
Packaging Details: | Export Standard Packing |
Delivery Time: | Within 25days after receiving deposit |
Payment Terms: | T/T |
MOQ: | 1 Set |

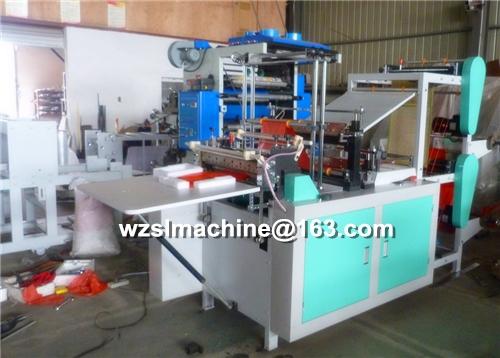

Double Layer Sealing and Cold Cutting Bag Making Machine
Skype: yangshiyan310
What's App: +86-13958831773
Email: wzslmachine at 163.com
Use:
It is suitable for cutting & sealing both high and low pressure
natural/ color film. It's a most ideal equipment for producing
shopping bag, flat bag.
Characteristic:
1. It adopts micro computer to control, servo motor to pull
material; And producing piece number can be set up freely.
2. It adopts imported photoelectrical cell to track printing; If
lose sign, the machine stops automatically.
3. Natural color bag can be produced by two pieces of production
line simultaneously, which will improve output obviously.
Main Technical Parameter | |||
Model | LDF-6002 | LDF-8002 | LDF-10002 |
Producing Length | < 1000mm | < 1000mm | < 1000mm |
Producing Width | < 500mm× 2 | < 700mm× 2 | < 900mm× 2 |
Thickness of Film | 0.01-0.10mm | 0.01-0.10mm | 0.01-0.10mm |
Producing Speed | 30-120pcs/min × 2 | 30-120pcs/min× 2 | 30-120pcs/min× 2 |
Main Power | 5.5kw | 7.5kw | 7.5kw |
Power Source | 220V 50Hz | 220V 50Hz | 220V 50Hz |
Weight | 990kg | 1100kg | 1200kg |
Overall Dimensions (L× W× H) | 3300× 1150× 1700mm | 3300× 1250× 1700mm | 3300× 1450× 1700mm |
Packing Dimensions (L× W× H) | 2500× 1250× 2000mm | 2500× 1450× 2000mm | 2500× 1650× 2000mm |
![]() |
