| Categories | Bag Making Machine |
|---|---|
| Place of Origin: | China |
| Brand Name: | Shuanglong |
| Model Number: | SLDF |
| Certification: | CE |
| Bag Material: | Plastic |
| Machine Type: | Sealing Machine |
| Bag Type: | Shopping Bag, Flat Bag |
| Computerized: | Computerized |
| Main Markets: | North America, South America, Southeast Asia, Africa, Mid East, Eastern Asia |
| Type: | Side Sealing Bag Making Machine |
| Packaging Details: | Export Standard Packing |
| Delivery Time: | Within 25days after receiving deposit |
| Payment Terms: | T/T |
| MOQ: | 1 Set |

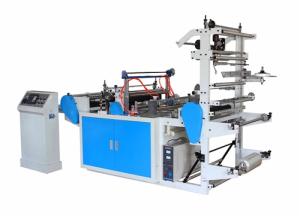

Computer Control Hot Cutting and Side Sealing Bag Making Machine
Skype: yangshiyan310
What's App: +86-13958831773
Email: wzslmachine at 163.com
Use:
It is suitable for heat-cutting & heat-sealing all kinds of natural
color films and color films such as: BOPP, OPP, PE etc.
It can make normal type, pillow type and envelope type.
Characteristic:
1. The main motor adopts frequency conversion motor to adjust the
speed.
2. It adopts microcomputer to control, servo motor to pull
material, which will accurate the sealing and cutting location.
Automatic counting and settable counting alarm. The machine will
stop automatically when the color mark is lost.
3. Feeding by DC motor and film potentiometers add the
synchronization between feeding and main motor.
4. The sealing and cutting blade is a kind of special tool steel,
uneasy deformation.
5. The conveyor belt adpots the imported driven strap and DC motor
to adjust the speed,
Which make the process of receiving bags steady and reliable.
6. It adopts pneumatic equipment to punch. Rubberizing
simultaneously.
| Main Technical Parameters | |||
| Model | BF-650 | BF-800 | BF-1000 |
| Producing Width | 50-600mm | 70-600mm | 80-1000mm |
| Producing Length | 100-600mm | 150-750mm | 150-950mm |
| Producing Speed | 30-140 (pcs/min) | 30-120 (pcs/min) | 30-100 (pcs/min) |
| Thickness of Film | 0.01-0.10mm | 0.01-0.10mm | 0.01-0.10mm |
| Main Power | 4.5kw | 5kw | 5.5kw |
| Weight | 1100kg | 1300kg | 1400kg |
| Overall Dimensions (L×W×H) | 4700×1250×1850mm | 4700×1400×1850mm | 5000×1600×1850mm |
| Packing Dimensions (L×W×H) | 3000×1400×2050mm | 3000×1500×2050mm | 3300×1670×2050mm |
| Optional equipment | 1. puncher 2. conveyor 3. yaskawa or Panasonic servo motor 4. guesset 5. E.P.C | ||
|
