CNHTC 30 - 50 Ton Sinotruk Howo Dump Truck With Large Load Capacity 30000 Kg

Categories Heavy Duty Dump Truck
Brand Name: Sinotruk howo
Model Number: ZZ3257N3647A
Certification: ISO/CCC
Place of Origin: China
MOQ: 1 Unit
Price: USD 36000-39800 Per Unit
Supply Ability: 800 per month
Delivery Time: 25 working days after received payment
Packaging Details: Nude, but with wax sprayed.
Dimension(mm): 8214 x 2496 x 3386
cargo body size(mm): 5400 x 2300 x 1400
Lift type of carriage: Ventral / Front lifting
wheel base(mm): 3625+1350
Loading Weight(kg): 30000
Engine: WD615.47
Horse power: 371HP
Emission: EURO 2
Transmission: HW19710
Front axle: HF9
Rear axle: HC16
Tire: 1200R20
Cab: HW76
Steering system: ZF8118
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

CNHTC 30 - 50 Ton Sinotruk Howo Dump Truck With Large Load Capacity 30000 Kg


CNHTC 30-50 ton Sinotruk howo 6x4 dump truck with large load capacity

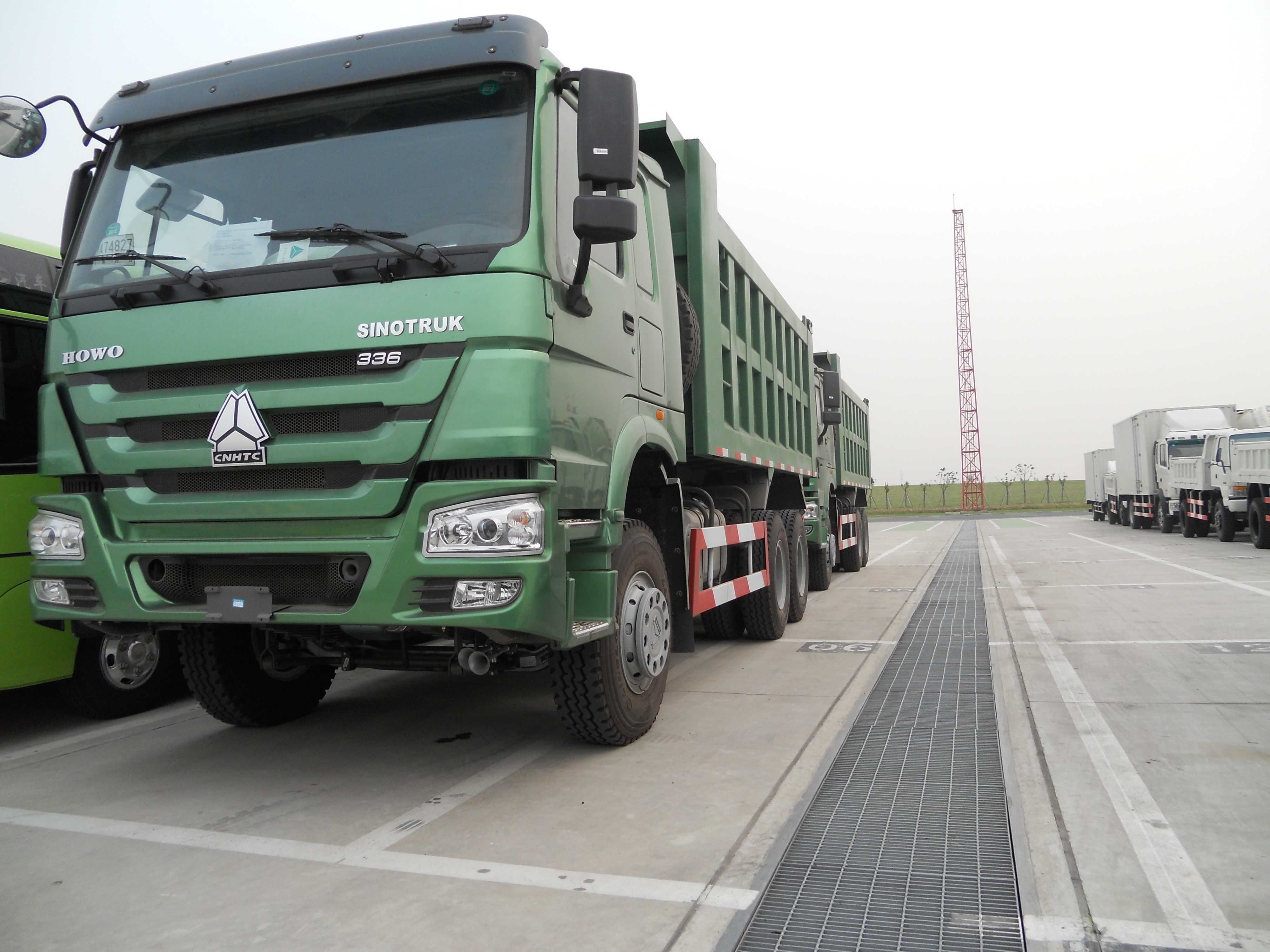

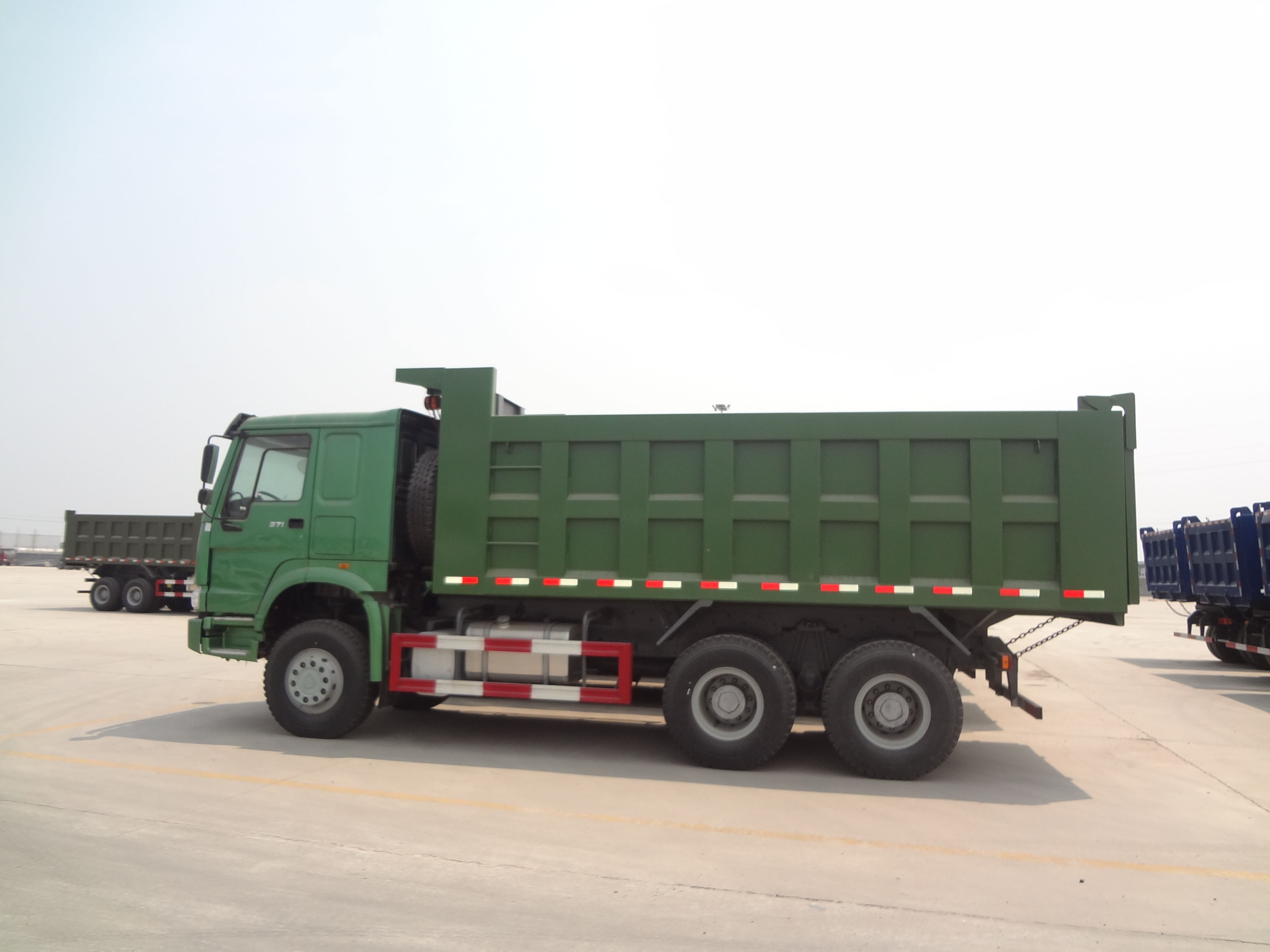

picture of product:



Specifications:


Howo dump truck basicMadeSINOTRUK
SeriesHOWO
Howo dump ModelZZ3257N3647A
Howo dump Driving Type6x4
Howo dump EngineHowo dump Engine modelWD615.47
Howo dump Engine Type6-cylinder in-line with water cooling, turbo-charging and intercooling,4-stroke direct injection diesel engine
Howo dump Maximum output371 hp (247 Kw) at 2200 rpm
Howo dump Displacement9.726 L
Bore126 mm
Stroke130 mm
Compression ratio29.8 hp/l
Specific fuel consumption195 g/kWh
Howo dump TransmissionModelHW19710(Fuller technology)
speeds10 speeds
Howo dump AxleFront AxleHF9
Rear AxleHC16
Howo dump Fuel tankAluminium fuel tank300 L capacity with locking fuel cap
Howo dump SteeringModelZF8118, hydraulic steering
Howo dump TyreRadial Tyre12.00R20
Howo dump Driver's CabFlat roof cab with bedall steal forward control,2-arm windscreen wiper system with three speed,laminated windscreen, damped adjustable driver's seat, with heating and ventilating system, adjustable steering wheel,air conditioner
Howo dump Dimensions mmWheel base3600+1350
Overall dimmensions8145*2496*3386
Dimension of the rear dump body5400*2300*1400(17M3)
Howo dump PerformanceMaximum driving speed (km/h)75
Maximum gradeability (%)40
Minimum ground clearance (mm)314
Minimum turning circle (m)20
Fuel consumption (l/100 km)28

Use:

1.Dump truck is used in short-distance transport.

2.Dump truck is mainly used to transport sand,stone, construction waste and other bulk cargo. And it usually be driven in bad road condition and construction site.

3. Mature dumper truck chassis, rebuilding dump special device, easy loading and fast unloading.
4. High efficiency, low cost, new technique, low fuel consumption, enduring service life.
5. Easy and safe to load, environmental and sanitary, applicable to collect and remove garbage in the cities, towns and communities.


Competitive Advantage:

1. The price is competitive; we are the direct channel to supply car carrier semi trailer.

2. Powerful engine and reinforced axle

3. All colors are available according to your choice.

4. Fast production period, and quick arrangement of delivery.

5. Professional Sales Team of trucks. Our target is not selling trucks; we help customers choose the best suitable trucks as per customer’s situation.
6. Professional team for spare parts and aftersales services.

7. Technique support and training.

8. Customization service, as per your request, we will customize our production for you.


Transportation:

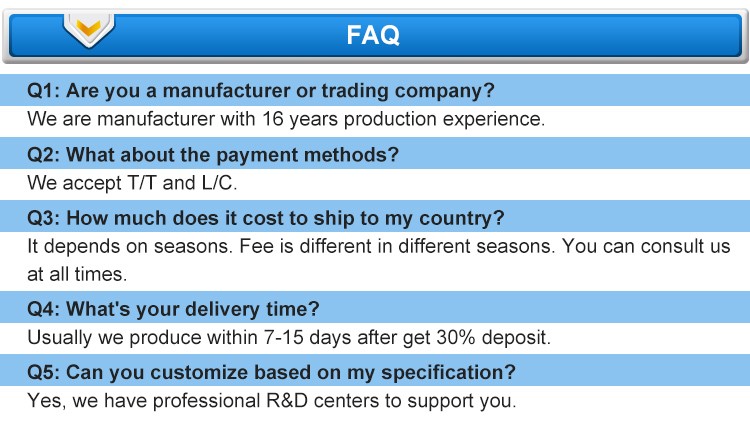

FAQ:
