| Categories | Stainless Steel Welded Pipe |
|---|---|
| Brand Name: | MTSCO |
| Model Number: | MTSCOSSSP17 |
| Certification: | ISO 9001 & PED & AD2000 |
| Place of Origin: | CHINA |
| MOQ: | negotiable |
| Price: | 2400-12000USD/TON |
| Payment Terms: | T / T ; L / C |
| Supply Ability: | 500 Tons / Month |
| Delivery Time: | 30 Days |
| Packaging Details: | Plywood Case / Bundles |
| Material: | TP310S |
| Size: | 2 Inch Sch10s(60.3mm-2.77mm) |
| NDT: | Eddy current or Hydraulic test |
| Inspection: | 100% |
| Surface: | Pickling & Annealing |
| Process: | ERW , EFW Etc |
| Company Info. |
| Jiaxing MT stainless steel co.,ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

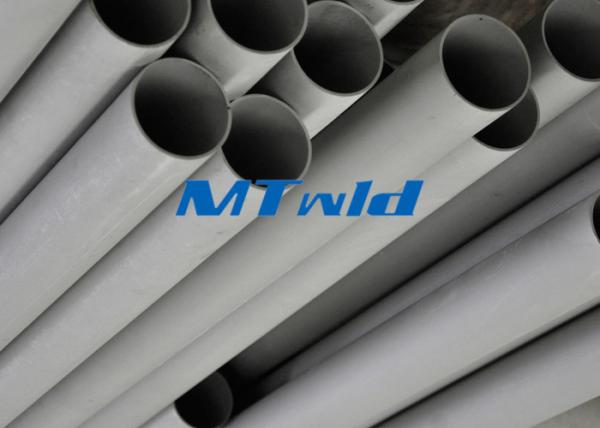

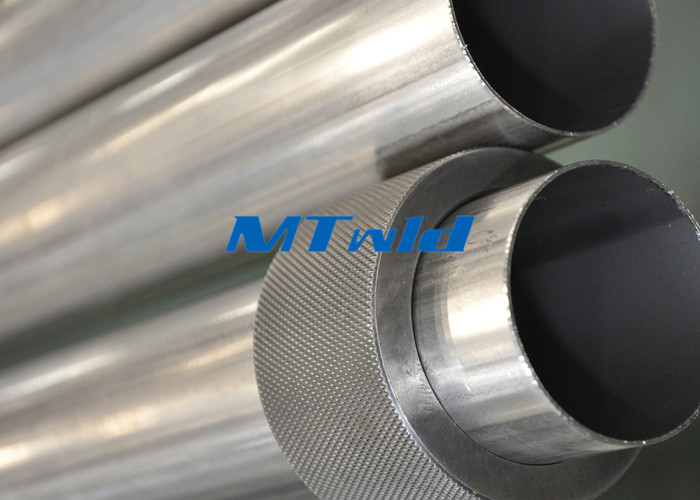

TP310S Stainless Steel Welded Pipe 2 Inch Sch10s
Standards :
ASTM A269 - 10 : Standard Specification for Seamless and Welded Austenitic Stainless Steel Tubing for General Service
ASTM A312 / A312M - 12 : Standard Specification for Seamless ,
Welded , and Heavily Cold Worked Austenitic Stainless Steel Pipes
ASTM A789 / A789M - 10a : Standard Specification for Seamless and
Welded Ferritic / Austenitic Stainless Steel Tubing for General
Service
ASTM A790 / A790M - 11 : Standard Specification for Seamless and
Welded Ferritic / Austenitic Stainless Steel Pipe
Specifications :
| DN | NPS(Inch) | D(mm) | SCH5S | SCH10S | SCH40S | STD | SCH40 | SCH80 | XS | SCH80S | SCH160 | XXS |
| 50 | 2 | 60.30 | 1.65 | 2.77 | 3.91 | 3.91 | 3.91 | 5.54 | 5.54 | 5.54 | 8.74 | 11.07 |
| 65 | 2 1/2 | 73.00 | 2.11 | 3.05 | 5.16 | 5.16 | 5.16 | 7.01 | 7.01 | 7.01 | 9.53 | 14.02 |
| 80 | 3 | 88.90 | 2.11 | 3.05 | 5.49 | 5.49 | 5.49 | 7.62 | 7.62 | 7.62 | 11.13 | 15.24 |
| 90 | 3 1/2 | 101.60 | 2.11 | 3.05 | 5.74 | 5.74 | 5.74 | 8.08 | 8.08 | 8.08 | - | - |
| 100 | 4 | 114.30 | 2.11 | 3.05 | 6.02 | 6.02 | 6.02 | 8.56 | 8.56 | 8.56 | 13.49 | 17.12 |
| 125 | 5 | 141.30 | 2.77 | 3.40 | 6.55 | 6.55 | 6.55 | 9.53 | 9.53 | 9.53 | 15.88 | 19.05 |
| 150 | 6 | 168.30 | 2.77 | 3.40 | 7.11 | 7.11 | 7.11 | 10.97 | 10.97 | 10.97 | 18.26 | 21.95 |
| 200 | 8 | 219.10 | 2.77 | 3.76 | 8.18 | 8.18 | 8.18 | 12.70 | 12.70 | 12.70 | 23.01 | 22.23 |
| 250 | 10 | 273.10 | 3.40 | 4.19 | 9.27 | 9.27 | 9.27 | 15.09 | 12.70 | 12.70 | 28.58 | 25.40 |
| Industry & Advantage | Application | a) For fluid & gas transport |
| b) Structure & machining etc | ||
| Advantages | a) Advanced technology of cold draw machine | |
| b) Advanced annealing machine | ||
| c) Better mechanical property | ||
| d) More precise dimension | ||
| e) Perfect inspection method and inspection equipment etc |
Test :
1 . X-ray , Size test , Length test
2 . Chemical Analysis ( Photoelectric Emission Spectroscopic ) etc
Material Grade :
| American Standard | TP304 , TP304L , TP310S , TP316 , TP316L , TP316Ti , TP321 , TP347 , 904L , S31803 Etc |
| European Standard | 1.4301 , 1.4306 , 1.4845 , 1.4401 , 1.4404 , 1.4571 , 1.4541 , 1.4550 , 1.4539 , 1.4462 Etc |
| German Standard | X5CrNi18-10 , X2CrNi19-11 , X12CrNi25-21 , X5CrNi17-12-2 , X5CrNi17-12-3 , X2CrNiMo18-14-3 , X6CrNiTi18-10 , X6CrNiTb18-10 Etc |
|
