| Categories | Stainless Steel Welded Pipe |
|---|---|
| Brand Name: | MTSCO |
| Model Number: | MTSCOSSSP20 |
| Certification: | ISO 9001 & PED & AD2000 |
| Place of Origin: | CHINA |
| MOQ: | negotiable |
| Price: | 2400-12000USD/TON |
| Payment Terms: | T / T ; L / C |
| Supply Ability: | 500 Tons / Month |
| Delivery Time: | 30 Days |
| Packaging Details: | Plywood Case / Bundles |
| Material: | TP316 TP316L TP316Ti , 300 Series Stainless Steel |
| Type: | Welded |
| NDT: | Eddy current or Hydraulic test |
| Inspection: | 100% |
| Surface: | Pickling & Annealing |
| Process: | ERW , EFW Etc |
| Company Info. |
| Jiaxing MT stainless steel co.,ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

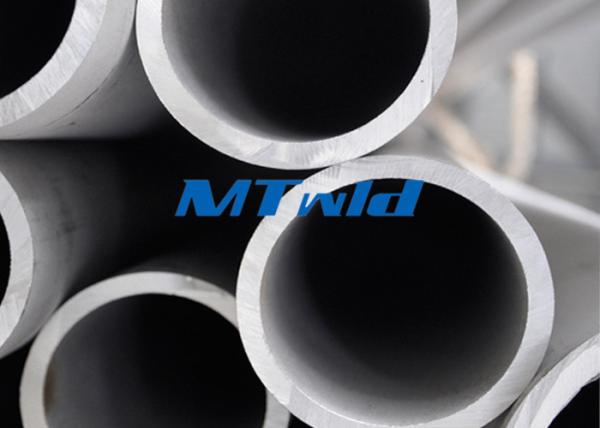

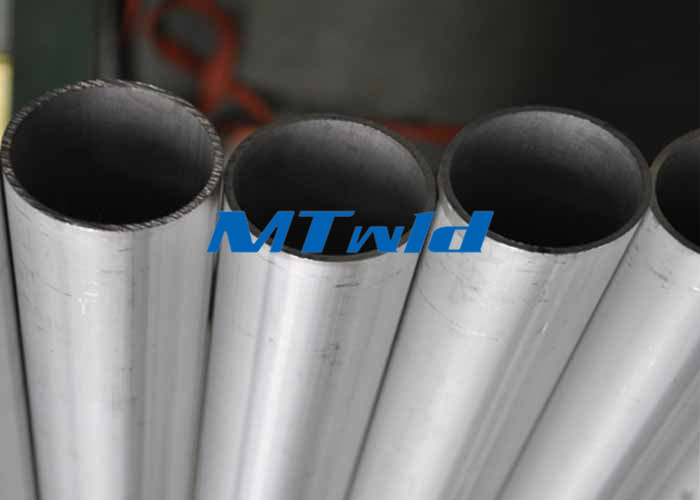

TP316 / 316Ti ERW / EFW Stainless Steel Welded Pipe For Fluid Industry
Standards :
ASTM A269 - 10 : Standard Specification for Seamless and Welded Austenitic Stainless Steel Tubing for General Service
ASTM A312 / A312M - 12 : Standard Specification for Seamless ,
Welded , and Heavily Cold Worked Austenitic Stainless Steel Pipes
ASTM A789 / A789M - 10a : Standard Specification for Seamless and
Welded Ferritic / Austenitic Stainless Steel Tubing for General
Service
ASTM A790 / A790M - 11 : Standard Specification for Seamless and
Welded Ferritic / Austenitic Stainless Steel Pipe
| C(max) | Si(max) | Mn(max) | P(max) | S(max) | Cr | Ni | Mo | Ti | N(max) | |
| 316Ti/1.4571 | 0.080 | 1.00 | 2.00 | 0.045 | 0.030 | 16.0-18.0 | 10.0-14.0 | 2.0-3.0 | 0.7>5x(C+N) | 0.1 |
ASTM A269 Chemical Composition :
| Elements | 304L(wt%) S30403 | 304(wt%) S30400 | 316L (wt%) S31603 | 316 (wt%) S31600 |
| (C) Carbon, max | 0.035 | 0.08 | 0.035 | 0.08 |
| (Mn) Manganese, max | 2 | 2 | 2 | 2 |
| (P) Phosphorus, max | 0.045 | 0.045 | 0.045 | 0.045 |
| (S) Sulfur, max | 0.03 | 0.03 | 0.03 | 0.03 |
| (Si) Silicon, max | 1 | 1 | 1 | 1 |
| (Ni) Nickel | 8.0 - 12.0 | 8.0 - 11.0 | 10.0 - 14.0 | 10.0 - 14.0 |
| (Cr) Chromium | 18.0 - 20.0 | 18.0 - 20.0 | 16.0 - 18.0 | 16.0 - 18.0 |
| (Mo) Molybdenum | N/A | N/A | 2.0 - 3.0 | 2.0 - 3.0 |
| (Fe) Iron | Bal. | Bal. | Bal. | Bal. |
| (Cu) Copper | N/A | N/A | N/A | N/A |
| (N) Nitrogen | N/A | N/A | N/A | N/A |
| Price Item : | FOB, CFR, CIF or as negotiation |
| Payment : | T/T, LC or as negotiation |
| Delivery Time : | 30 working days after received your deposit (Normally according to the order quantity) |
| Package : | Iron case; woven bag or as per customer’s requirement |
| Quality Requirement : | Mill Test Certificate will be supplied with shipment, Third Part Inspection is acceptable |
|
