| Categories | Car Carrier Trailer |
|---|---|
| Brand Name: | Fudeng |
| Model Number: | SDFD1709 car carrier trailer |
| Certification: | CE, ISO, CCC, SGS, ADR |
| Place of Origin: | Shandong, China |
| MOQ: | 1 set |
| Payment Terms: | L/C, T/T or negotiate |
| Supply Ability: | 600 sets per month |
| Delivery Time: | 25-40 days after 30% deposit |
| Packaging Details: | Paint and wax spraying |
| Material: | Carbon Steel |
| Usage: | Transport small car |
| Color: | White, yellow, red, green, blue customized |
| Pattern: | Fudeng logo or as customer's request |
| Suspension: | Mechanical or air suspension |
| Capacity: | 20-50 ton available |
| Axle: | 2 or 3 or 4 |
| Condition: | New |
| Price: | negotiation |
| Car transport trailer Specifications | |
| Body | |
| Dimension | 25000*2800*3950 mm (shrink) |
| Payload | 12 sets small car |
| Tare weight | About 12 Ton |
| Chassis | |
| Frame | Welding design or Special design I beam, connected by bolts and nuts, T700 high-intensive steel material |
| Frame Beam | Upper plate is 14mm and lower is 16 mm, middle is 8 mm. height is 500 mm |
| Axle | 3 axles, 13T American type FD brand |
| Landing Gear | Standard 28T JOST brand |
| King Pin | 2.00(5.0) or 3.5(9.0) JOST brand |
| Suspension | Mechanical suspension |
| Leaf Spring | 90mm(W)*16mm(T)*10 Layer |
| Pneumatic Braking System | 6 air chamber, 3 axles synchronization Chinese brand |
| Rim | 8.25-22.5, |
| Tire | 12.00 R 22.5 Chinese brand |
| Accessories | One standard tool box |
| Electric | 24V 7-pin standard socket; Standard Tail lamp with turn signal, brake light & reflector, Side lamp etc. |
| Packing and shipping | |
| Painting | Complete Chassis sand blasting to clean rust, 2 coat of anticorrosive prime, 1coats of final paint |
| Shipping Terms | By Bulk Cargo |

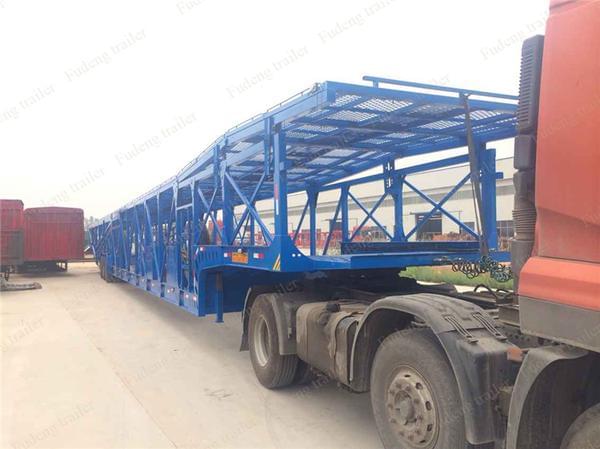

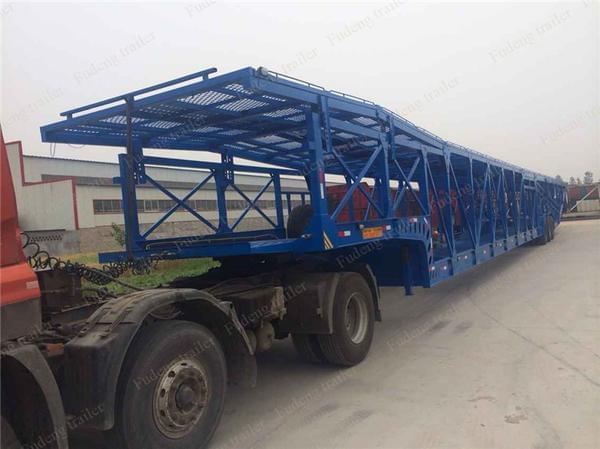

Long car transport trailer. Can load 12 sets small car
|
