| Categories | Car Carrier Trailer |
|---|---|
| Brand Name: | FUDENG Brand |
| Model Number: | Car carrier trailers |
| Certification: | CCC / ISO / SGS / BV |
| Place of Origin: | Shandong,China(Mainland) |
| MOQ: | One unit Car carrier trailers |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 500Units per Month |
| Delivery Time: | 20-30days after deposit |
| Packaging Details: | Nude packed, RORO or Bulk Cargo Shipping |
| Product name: | Car carrier trailers |
| Axles: | Fuwa/BPW/Chinese brand |
| Number of cars: | 8 To 24 Sets |
| Usage: | Transport cars |
| Suspension: | Mechanical suspension |
| Color: | Customized |
| Material: | Steel |
| Length: | Customized Dimension |
| Price: | negotiation |

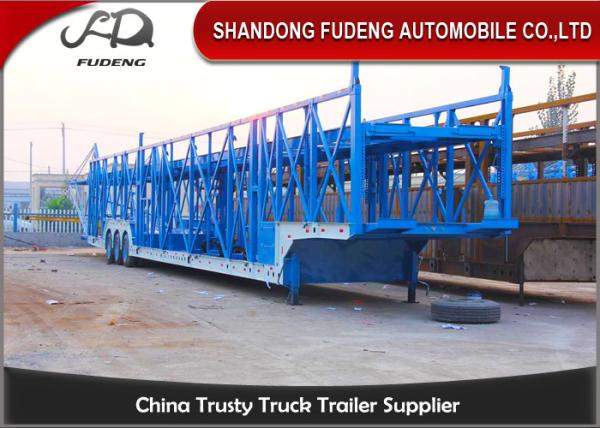

Double Floor Steel Chassis Auto Vehicle Transporter Truck Semi Trailer
Car carrier trailers Description :

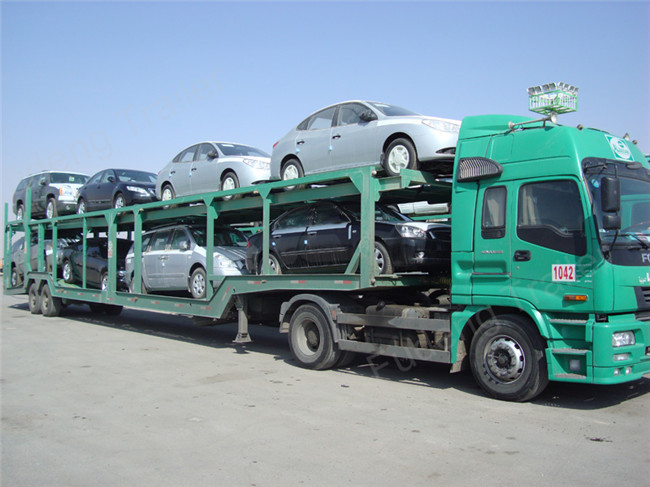

A car-carrying trailer, known variously as a car carrier trailer, car hauler, auto transport trailer,
etc., is a type of trailer or semi-trailer designed to efficiently transport passenger vehicles via truck.
Like other semi-trailers, most commercial car-carrying trailer attach to the tractor using a fifth
wheel coupling. Trailers can either be enclosed, possessing walls like a conventional box trailer,
which affords the shipped vehicles more protection at the cost of lower capacity; or open, as in the commonly seen skeletal tube steel design, which exposes the vehicles to the elements but allows for greater carrying capacity.
Car carrier trailers Specification:
10 Car/SUV Transportation Semi Trailer (These configurations are just for your reference,we will design&produce as your specific requirements.) | |
| Model | FLY9321TDP |
| Tire No. | 4 |
| Axle No. | 2 |
| Tire specification | 11R22.5 |
| Rear tread(mm) | 1840/1840 |
| Outside Dimension L×W×H | 17000x2400x3000 mm |
| Main Frame | Q345B manganese plates, automatic submerged arc welded |
| Floor | Steel Sheet 3mm thickness or diamond plate |
| Suspension | Steel leaf spring suspension system |
| Rated load | 30-50 T |
| Wheel Rim | 8 |
| Pin Size | 2' and 3.5' inter-changeable Pin |
| Spare Wheel Carrier | One set of spare wheel carrier including a riser. |
| Braking System | 2-Line compressed air brake system on all wheels with additional parking brake. |
| Brake Air Chamber | Automatic Air Chambers |
| Electrical System | 1. Voltage: 24v 2. Receptacle: 7 ways(7 wire harness) |
| Accessory | One tooling box with a set of standard trailer tool |
| Landing gear | Capacity of 28ton,factory brand |
| Lights System | LED electrical system to international standards includes taillights, sidelights and direction indicators. |
| Loading Capacity | Two floors,5cars each floor; 10cars in total. |
Car carrier Trailer Model.
10 sets car carrier trailers.
Welcome to visit our factory!
|
