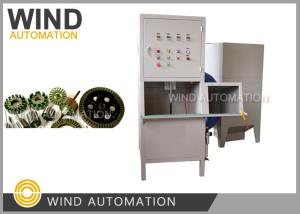

Armature Coating Manual Fluidizing Machine Fluidized Powder Bed Insulation

Armature Coating Manual Fluidizing Machine Fluidized Powder Bed Insulation WIND-HDP

1. Main device dimension

Depth 1250mm * W1300mm(Including powder cleaning area 500mm)*H2100mm

With 1.2mm thickness A3 cold rolled steel and square pipe

2. Lifting device driven by cylinder 1 set

3. Fluidized powder bed device 1 set,made of A3 cold rolled steel

4. Powder vibration device 1set

5. Environment friendly device including First stage recycling system 1set,

Filter 2pcs,Cleaning device for filter 1set ,Air gun 1pc

6. Grating Protection device 1set

7. Second stage recycling system Dimension (L830*W830*H1700mm)

Filter 4pcs , Motor power 2.2KW

Environment friendly Second stage catch the remain powder if any and ensure the exhaust air is clean

8. Electric device 1set

Electric controlling system are with DC24, safe

Button,Indicator, Contactor,Relay are Schneider

Pneumatic Unit Airtek

Please click below link to watch experiment of manual powder coating process

https://youtu.be/_91oyrmMrMI
