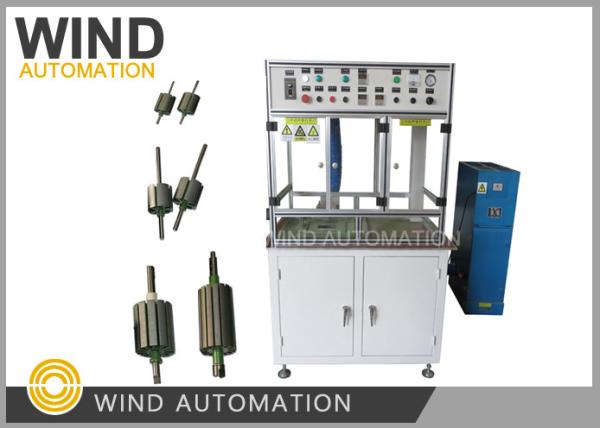

Epoxy Resin Powder Coating Machine Small Motor Armature Rotor Electrostatic

Small Motor Armature Rotor Electrostatic Epoxy Resin Powder Coating Machine WIND-APC-L

(1) Application:

For small amont armature powder coating,kinds of armature prototype laboratory experiment use

(2) Competitive Advantages:

1. This power coating machine which one respected user 3M is using for power experiment for user

2. Machine don’t have special requirement for electrostatic epoxy resin

3. The machine is easy to operate

(3) ​Working Process:

1. Operator assemble fixture for armature and load it on to driving connection rod

2. Press the Start button, armature begin to rotate,

Electrostatic open and epoxy resin powder become fluid at same time ,

The resin mist begin to fly to armature stack and stick to surface

3. After coating, electrostatic fluidization stop,

The scraping device stretch out and begin to scrap and remove the resin on armature OD

4. After powder coating, fetch out the armature and put the armature in oven

(Oven is not included in quotation , Usually 180～200℃ ,30minutes, per powder characteristic)

(4) Parameter:

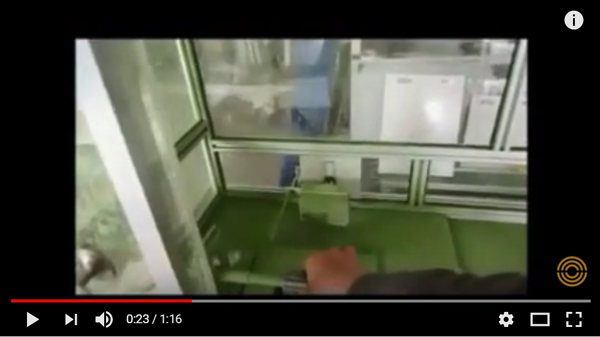

Please click below picture to view video
