120 Watt Folding Solar Panels High Transmissions Low Iron Tempered Glass Front Sheet

Categories Polycrystalline Solar Panel
Brand Name: OLLIN PV
Model Number: OL-72M-120
Certification: CE ROSH ISO
Place of Origin: zhejiang Pr, China
MOQ: one unit
Price: Negotiable
Supply Ability: 1200UNITS PER WEEK
Delivery Time: 20DAYS
Packaging Details: heavy duty padded carry bag
cell material: Monocrystalline silicon
cell color: black
frame: anodized aluminum alloy
front sheet: high transmissions low iron tempered glass
back sheet: TPE quality plastic
Main market: Asia Africa Southeast Asia
Junction box: JB with 0.9m wire and connector
Max. Power:: 60W 80W 120W 180W 240W
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

120 Watt Folding Solar Panels High Transmissions Low Iron Tempered Glass Front Sheet

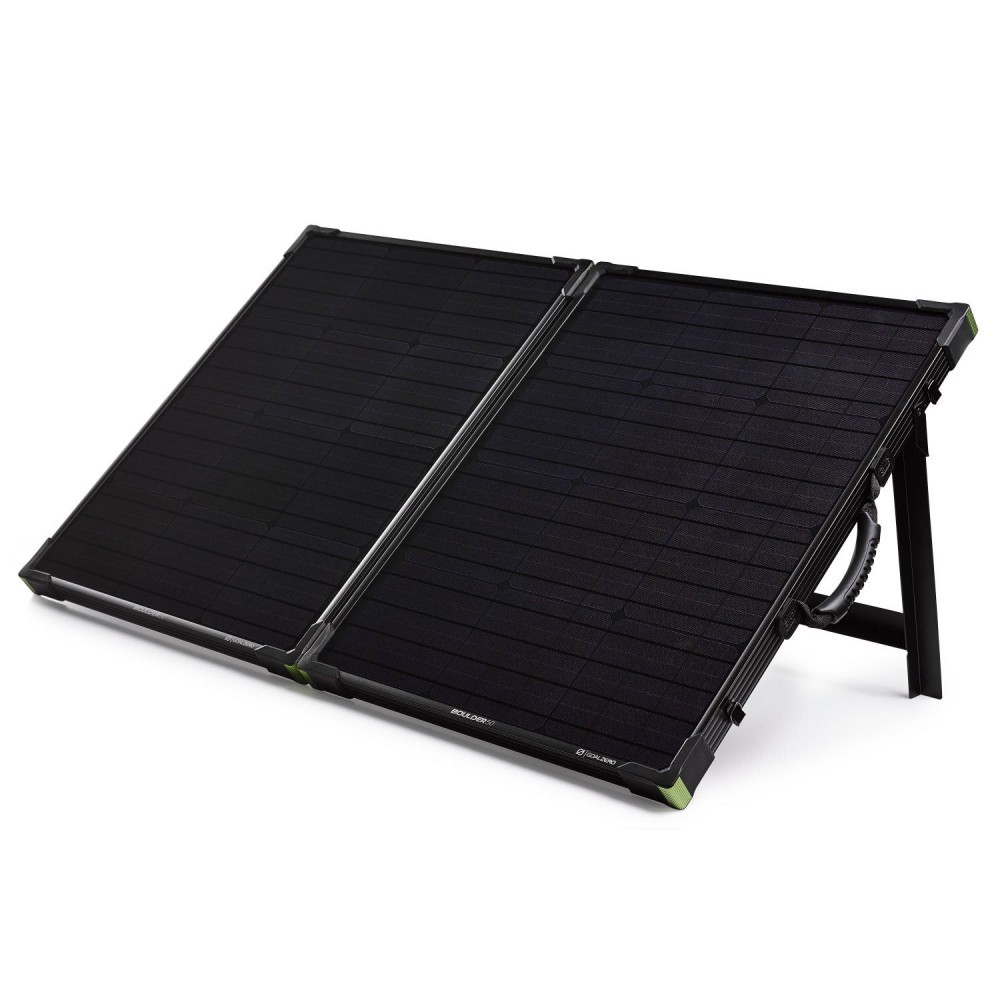

all black color 120Watt Mono folding solar panel with heavy duty padded carry bag


Product Information:


Identification


mono-crystalline folding solar panels with sturdy aluminum frame


heavy duty aluminumn handle*2


heavy duty steel safety fasteners*2


adjustable and strong support legs*2 with anti-slip rubber feet


MPPT WATER-PROOF CONTROLLER 12V/24V with LED indications


5-meter lead with MC4 male and female connectors and alligator clamps


connecting cable with connectors to 5-meter lead


Specs:


1. 60w*2pcs,total 120w output power for charging


2. 10A,12V solar charge controller


3. 5 Merters cable


TypeFolded sizeWeightSpecification
Max-powerVolatage at PmaxCurrent at PmaxOpen- Circuit Voltage

Short- Circuit

Current

ModuleMMKGWVAV

A

OLPV-200W1200*540*70202001810.5322

11.37

OLPV-190W1901810.1522

10.96

OLPV-180W180189.6222

10.38

OLPV-170W1000*540*7016170189.4422

10.2

OLPV-160W160188.8922

9.6

OLPV-150W150188.3322

9

OLPV-120W810*540*7014120186.6722

7.2

OLPV-110W110186.1122

6.6

OLPV-100W610*540*6010100185.5622

6

OLPV-90W9018522

5.4

OLPV-80W80184.4422

4.8

OLPV-60W420*540*60960183.3322

3.6


Note:


(1) solar panels in the back of the production line will mark scraping gum residue is normal and does not


affect the use of power


(2) Note that when using the included, do not use a hard object bump the panel surface, one side affect the


appearance and life


How to choose the correct voltage for your products:


Basic principle:


(1) The solar panel voltage is best to be 1.5times higher than the storage battery, in order to fully charge the


battery, such as:


3.7V Lithium Battery ===== 3.7*1.5=5.55V. =====> The optium voltage for solar panel charging this lithium


battery is 5.5V, you can choose 6V. Voltage lower than 5V is not a good idea for fast charging;


12V Lead acid battery ==== 12V*1.5=18V ====> The optium voltage for solar panel is 18V, 17.5V is also


OK. But voltage lower than 17V will not be a good idea for fast charging.


(2) The voltage of solar panel is not the higher, the better, because during our R&D, we must consider the


charging current, and the battery protection. If the charging voltage is too high, the battery might be


damaged. And when the voltage is too high, the charging current would be weak, and the charging speed


would become too slow.


3.7V Lithium Battery ===== The solar panel voltage better not be higher than 6V.


12V Lead acid battery ===== The solar panel voltage better not be higher than 18V, because of the above


two reasons.


Do you understand above now, please? If there is any other question, you can feel free to ask me anytime.
