Roof Mounted Colorful Polycrystalline Solar Panel Off - Grid Power Generation System

Categories Polycrystalline Solar Panel
Brand Name: OLLIN PV
Model Number: OL-72P-300
Certification: CE ROSH ISO
Place of Origin: zhejiang Pr, China
MOQ: one unit
Price: Negotiable
Supply Ability: 1500UNITS PER WEEK
Delivery Time: 20DAYS
Packaging Details: 0NE PCS PER CARTON OR 25PCS PER PALLET
cell material: Polycrystalline silicon
cell array: 6*12
cell color: blue
frame: anodized aluminum alloy
front sheet: high transmissions low iron tempered glass
back sheet: TPE quality plastic
Main market: Asia Africa Southeast Asia
Junction box: JB with 0.9m wire and connector
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

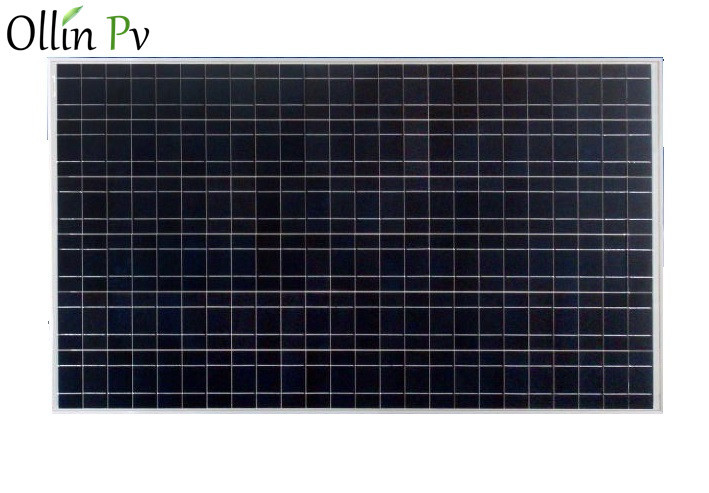

Roof Mounted Colorful Polycrystalline Solar Panel Off - Grid Power Generation System

Off-grid power generation system colorful Polycrystalline Solar Panel 300watt For roof mounted


300Wp Poly Crystalline Solar Panel


Product features:

1. High-transmittance low-iron tempered glass, anti-aging EVA, excellent weathering resistance TPT

2. Anodized quality aluminum frame, beautiful appearance

3. Wind resistance, pressure resistance, high conversion efficiency

Product field:

1. ON - Gird power generation system

2. Off - grid power generation system

3. Building-integrated power generation facilities

Specifications:

ELECTRICAL PERFORMANCE
Module typePLM-310P-72
Power output290295300305310
Power output tolerances0-3
Voltage at Pmax37.1437.5838.0838.3238.47
Current at Pmax7.817.857.887.968.06
Open-circuit voltage44.8444.9245.1045.3045.47
Short-circuit current8.388.478.498.528.60
OPERATING CONDITIONS
Max.system voltage1000V
Limiting reverse current15A
Operating temperature range-40℃ to 85℃
Max.static load front5400Pa
Max.static load back2400Pa
Max.hailstone impact (diameter/velocity)25mm/23m/s
MECHANICAL CHARACTERISTICS
Front cover(material/thickness)Low-iron tempered glass / 3.2mm
Backsheet(color)white
Cell(quantity/material/dimensions)72 / monocrystalline silicon / 156*156mm
Frame(material/color)Anodized aluminum alloy / silver
Junction box(protection degree)>= IP65
Cable&Plug connectors900mm / 4mm² &MC4 compatitible / IP67
Module Dimensions (L /W /H )1956mm*992mm*40mm
Module Weight21.6kg



WHY CHOOSE US?

1. Excellent efficiency, Easy Installation & Maintenance


2. Outstanding performance in Low-Light


3. High transparent, Low-Iron, Tempered Glass


4. Ability to withstand High Wind-Pressure and Snow-Load


5. Advanced module sealing technology to eliminate leakage and frame deformation


6. Ability to meet customized customer's specific requirements



Company Profile:

We are a professional manufacturer specialized in Solar Panels with more than 8 years of

experience. Our main products include: Mono and Poly Solar Panel, Solar power system, Solar

charger controller, Inverters, Solar LED lights, and so on.

What we can provide: High quality and very competitive price, fast delivery and best service!

A trustable and reliable supplier for your business. We have already exported our products around

the world includes Russian, Middle East, South American, Southeast Asia and so on.

For any details, please don't hesitate to contact me any time!
