Type: | Backhoe Loader |
Dimension(Long * Breadth * High): | 9000*2300*2900mm |
Operating weight: | 5800kg |
Loading Bucket Capacity: | 0.8cbm |
Max dumping height: | 4390mm |
Turning Radius: | 2585mm |
Company Info. |
BILON HEAVY INDUSTRY (GUANGZHOU) CO.,LTD |
Verified Supplier |
View Contact Details |
Product List |

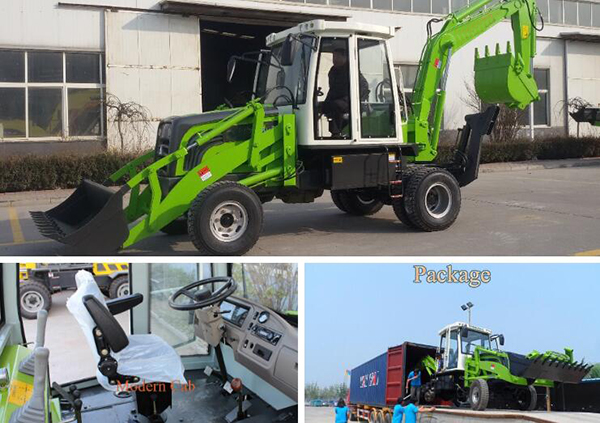

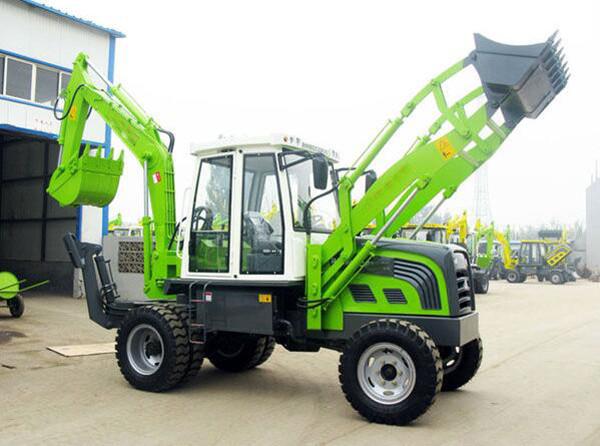

Mini Tractor Backhoe 6 Ton Chinese Backhoe Loader Backhoe Loader Brands
The machine is with strong driving force , flexible and simple
variable speed operation because we choose the most mature
hydraulic turque converter travelling system . The 4WD system
insure the outstanding moving capacity.

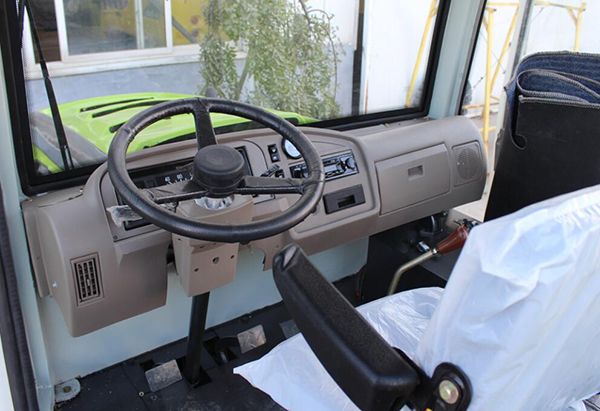

Double-way Four-pincers brake is more safe and reliable . It has
spacious driving operation space , better vision and comfortable
seat. Equipped with various working facilities to meet different
customer demands . 780 owns reasonable power distributing system ,
excellent overall system and extraordinary operation efficiency .
Operating Weight | 5800kg | Overall Dimension | 9000*2300*2900mm |
Bucket Capacity | 0.3cbm | Load Bucket Capacity | 0.8cbm |
Wheel Base | 2600mm | Ground Clearance | 240mm |
Engine Type | YTO | Rated Power | 51.5 / 74.9/83kw |
Drive Method | Hydraulic 2WD/4WD | Tire Type | 8.25-16/9.00-16 |
Accessories | Hammer,Auger,Quick Hitch, Grader,Narrow Bucket, Tilt Bucket | Starting Type | Electric 24V |
Travel Speed | 40km/h | Hydraulic Main Pump | TAIFENG |
Hydraulic System | 16MPa | Hydraulic System Flow | 63L/min |
Axle | DONGFENG | Bucket Digging Force | 40kn |
Arm Digging Force | 33kn | Working Fuel Consumption | 8.2L/H |
Max Digging Height | 6080mm | Max Dumping Height | 4390mm |
Max Digging Depth | 3400mm | Max Digging Radius | 5800mm |
Max Loading Height(loader part) | 3500mm | Max Dumping Height(loader part) | 3200mm |
Max Loading Depth(loader part) | 15mm | A/C | Optional |
Packing Way | 2 units in a 40HQ | Certificates | CE ISO |
![]() |
