GPON ONU 1GE For FTTH Support CLI WEB Management for Upstream 1.244Gbps Downstream 2.488Gbps DC12V 0.5A Realtek9601B

Categories GPON ONT
Brand Name: Opti-s
Model Number: OS-GU01G
Certification: CE/ROHS/ISO9001
Place of Origin: China
MOQ: 1
Price: negotiable
Payment Terms: T/T;Paypal
Delivery Time: 5-8 work days after payment
IEEE Standards: IEEE 802.3, 802.3u, 802.1Q
Wavelength: Upstream:1310nm;Downstream:1490nm
Data Rates: Upstream:1.244Gbps;Downstream:2.488Gbps
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

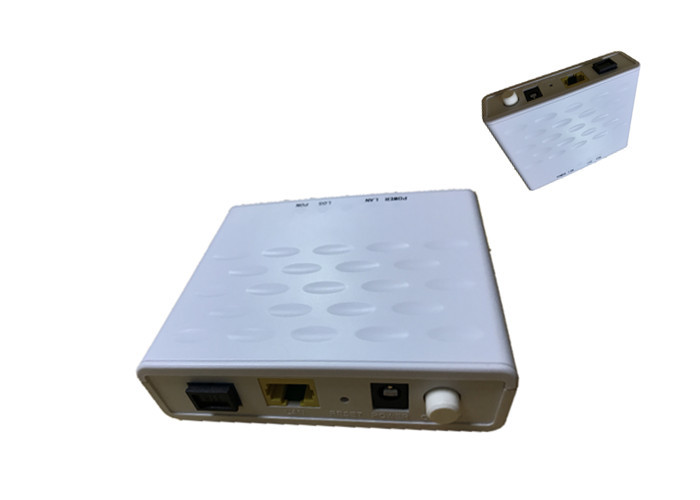

GPON ONU 1GE For FTTH Support CLI WEB Management for Upstream 1.244Gbps Downstream 2.488Gbps DC12V 0.5A Realtek9601B

GPON ONT 1GE


1.Overview

GPON ONT 1GE conforms to the GPON technical standard defined by ITU-T G.984, and meets the technical requirements of GPON equipment from multiple operators in China. It is a residential gateway device with routing functions for GPON ONU and LAN Switch for residential and SOHO users.

It provides one GPON PON interface, while downlink provides 1*1000base-t. It can realize optical access solutions such as FTTH (Fiber To The Home) and FTTB (Fiber To The Building). It fully integrates the reliability, maintainability and security design of carrier-grade equipment, and provides customers with the last kilometer of broadband access to residential and corporate customers.


2.Hardware Specification


PON InterfaceInterface TypeSC/PC, CLASS B+/C
RateUplink: 1.25Gbps; Downlink: 2.488Gbps
User-Side Interface1*10/100/1000BASE-T
Size (mm)100(L)×90W)×22(H)
Maximum Power Consumption<8W
Weight200g
Operating EnvironmentTemperature: -10°C ~ +55°C
Humidity: 5% ~ 95% (no condensation)
Power SupplyExternal Power Adapter 12V/0.5A
Power-Adapter Input100-240V AC, 50/60Hz
Power Interface Size

metal inner diameter: φ2.5±0.1mm; outer diameter: φ5.5±0.1mm

length: 9.0±0.1mm


3.Software Feature


FeatureGPON ONU 1GE
GPON feature
  • Compliant with ITU-T G.984 GPON standard
  • FEC (Forward Error Correction) in both upstream and downstream
  • Dynamic bandwidth status report
  • 802.1p mapper for upstream
  • QoS scheduling based on SP or WRR between GEM port and T-CONT
  • Downstream multicast GEM port and broadcast GEM port
Ethernet Feature
  • Support Auto-speed and MDI/MDIX auto detection
  • Internal L2 switch
  • Advanced data processing function, such as VLAN label processing, flow classification and packet filtering.
OAM feature

Standard OMCI (the embedded operations channel) compliant with ITU-T G.988

  • Alarm reporting, performance monitoring
  • Remote software upgrade through OMCI
