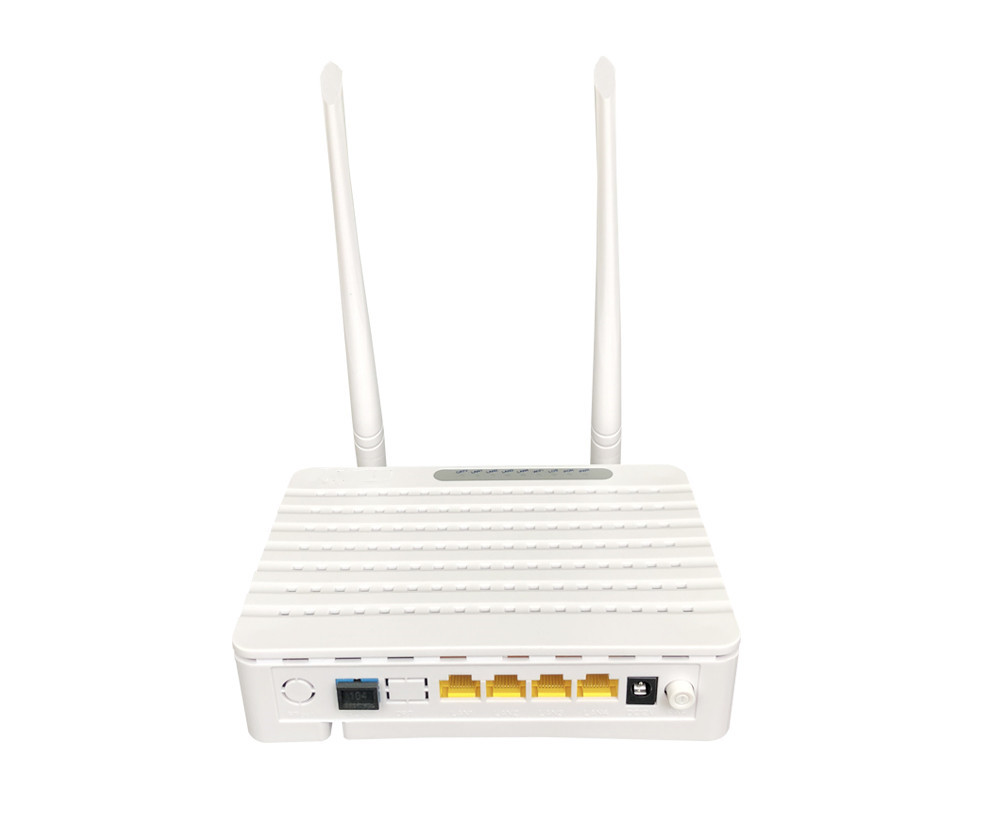

GPON ONT/HGU(1GE+3FE+WIFI)
1GE+3FE+WIFI conforms to the GPON technical standard defined by ITU-T G.984, and meets the technical requirements of GPON equipment from multiple operators in China. It is a residential gateway device with routing functions for GPON ONU and LAN Switch for residential and SOHO users.
The uplink of 4FE+WIFI provides one GPON PON interface, while downlink provides four Ethernet and WIFI interfaces. It can realize optical access solutions such as FTTH (Fiber To The Home) and FTTB (Fiber To The Building). It fully integrates the reliability, maintainability and security design of carrier-grade equipment, and provides customers with the last kilometer of broadband access to residential and corporate customers.
| PON Interface | Interface Type | SC/PC, CLASS B+ |
| Rate | Uplink: 1.25Gbps; Downlink: 2.488Gbps | |
| User-Side Interface | 1*10/100/1000BASE-T; 3*10/100BASE-T | |
| Size (mm) | 135(L)×110(W)×30(H) | |
| Maximum Power Consumption | <8W | |
| Weight | 200g | |
| Operating Environment | Temperature: -10°C ~ +55°C | |
| Humidity: 5% ~ 95% (no condensation) | ||
| Power Supply | External Power Adapter 12V/1A | |
| Power-Adapter Input | 100-240V AC, 50/60Hz | |
| Power Interface Size | metal inner diameter: φ2.5±0.1mm; outer diameter: φ5.5±0.1mm length: 9.0±0.1mm | |
| WLAN Module | Built-in / external dual antenna, antenna gain 5dbi | |
| Support 2.4GHz, 300M transmission rate | ||
| Standard Compliance | Compliant with ITU-T G.984 GPON standard FEC (Forward Error Correction) in both upstream and downstream Dynamic bandwidth status report 802.1p mapper for upstream QoS scheduling based on SP or WRR between GEM port and T-CONT Downstream multicast GEM port and broadcast GEM port |
| GPON | Support ONU registration mechanism |
| Support DBA | |
| Support ONU software batch upgrade, scheduled upgrade, real-time upgrade | |
| Support standard OAM and extended OAM management functions | |
| Support the maximum effective transmission distance of 20 km | |
| Support long illuminating detection and optical power detection | |
| WLAN | Support WPA2-PSK/WPA-PSK encryption |
| Support client isolation | |
| Support 4 * SSID | |
| Support for 802.11 BGN mode | |
| Support maximum rate of 300M | |
| Multicast | IGMP V2 Proxy/Snooping |
| Management & Maintenance | Support web management |
| Support CLI/Telnet management | |
| Support port loopback detection |
|
