| Categories | EPON ONT |
|---|---|
| Brand Name: | Opti-S |
| Model Number: | OS-EU01GW |
| Certification: | CCC/RHOS/ISP9001 |
| Place of Origin: | China |
| MOQ: | 1 |
| Price: | Negotiable |
| Payment Terms: | T/T;Paypal |
| Delivery Time: | 5-8 work days after payment |
| Optical Wavelength: | TX 1310nm, RX 1490nm |
| DC power supply: | DC 12V/1A, external AC-DC power adaptor |
| Port: | 1*10/100/1000base-T,1*WIFI |
| Company Info. |
| Opti-Solution |
| View Contact Details |
| Product List |

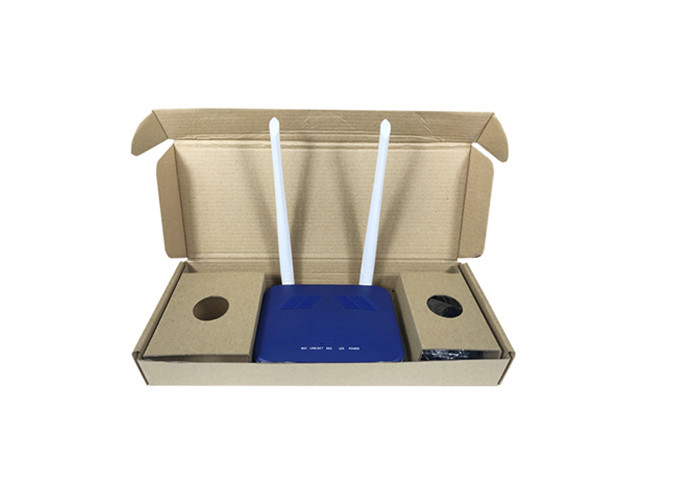

EPON ONT(1GE+WIFI)
Introduction
EPON ONT is designed for fulfilling FTTH (Fiber To The Home) and triple play service demand of fixed network operators. The box is based on the mature Gigabit EPON technology, which has high ratio of performance to price, and the technology of 802.11n WiFi (2T2R). It is highly reliable and easy to maintain, with guaranteed QOS for different service. And It is fully compliant with technical regulations such as IEEE802.3ah and technical requirement of EPON Equipment (V2.1 and above version) from China Telecom.
Special features
lPlug and play, integrated auto detecting, auto configuration, and auto firmware upgrade technology.
lSupport rich QinQ VLAN, DHCP Server/Relay and IGMP/MLD snooping multicast feature.
lSupport fiber transceiver diagnostic monitoring, fiber transmitter disable remotely.
lFully compatibility with OLT based on Broadcom chipset etc.
lSupport 802.11n WiFi (2T2R) function.
lSupport NAT, Firewall function.
lSupport IPv4 and IPv6 dual stack
lThe WAN port supports bridge, router and bridge/router mixed mode.
Technical parameters
| Technical items | Descriptions |
| Chipsets | RTL |
| Optical interface | 1 EPON interface, SC single-mode/single-fiber, Downstream rate 1.25Gbps, Upstream rate 1.25Gbps |
| Optical Wavelength | Tx 1310nm, Rx 1490nm |
| Optical interface | SC/PC |
| RX sensitivity | < -27dBm @ 1490nm |
| WLAN | Compliant with IEEE802.11b/g/n, 300Mbps, 2T2R one internal antenna and one external antenna |
| WLAN throughput | 1000 Mbps @ 40users, 1518bytes, no-encryption 107Mbps @ 40users, 512bytes, encryption |
| LAN interface | 1*10/100/1000Mbps |
| Router throughput | Upstream: >390Mbps @ 1518bytes, Downstream: >390Mbps @ 1522bytes |
| DC power supply | DC 12V/1A, external AC-DC power adaptor |
| Button | RST, Power, WiFi, WPS, Pair |
| Power consumption | ≤ 10W |
| Operating condition | Operating temp: 0 ~ +45℃,Operating humidity: 10~90% (non-condensed) |
| Storing condition | Storing temp: -30 ~ +60℃,Storing humidity:10~90%(non-condensed) |
| Dimension | 137mm*117mm*30mm(length*width*height) |
| Net weight | 0.4Kg |
Data Service Functions
1) Full speed non-blocking switching.
2) 2048 MAC address table.
3) 64 full range 4095 VLAN ID
4) Support VLAN QinQ, transparent, tag, translation, trunk, etc.
5) Integrated port monitoring, port mirroring, port rate limiting, port SLA, etc.
6) Support auto polarity detection of Ethernet ports (AUTO MDIX).
7) Integrated IEEE802.1p QoS with four level priority queues.
8) Support IPv4 IGMP snooping and IPv6 MLD snooping.
9) Support bridging, router and bridging/router mixed mode.
WiFi service
1) Integrated 802.11b/g/n, 300Mbps, 2T2R.
2) Support 128 connections.
3) Support WEP and WPA/WPA2 security protocols.
|
