Name: OSEU01GS 1GE Plastic Shell EPON Optical Network Terminal With External Power Adapter Huawei ZTE Fiberhome compatible
Brand: Opti-s
Price: 1 USD

Home > Radio & TV Broadcasting Equipment >

OS-EU01GS 1GE Plastic Shell EPON Optical Network Terminal With External Power Adapter Huawei ZTE Fiberhome compatible

Categories	EPON ONT
Brand Name:	Opti-s
Model Number:	OS-EU01GS
Certification:	ROHS/CCC/ISO9001
Place of Origin:	China
MOQ:	1
Price:	negotiable
Payment Terms:	T/T;Paypal
Delivery Time:	5-8 work days after payment
Packaging Details:	1pcs / box, 50 boxes / carton
chip:	ZTE
power:	12V/0.5A DC
management:	web

Contact Now

Add to Cart

Company Info.

Opti-Solution

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

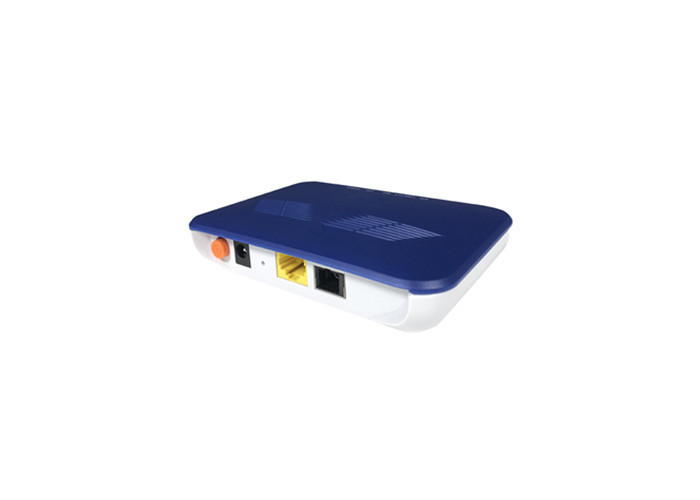

OS-EU01GS 1GE Plastic Shell EPON Optical Network Terminal With External Power Adapter Huawei ZTE Fiberhome compatible

Plastic ZTE chipset 1 single Pon Port GE EPON ONU Moden apply in Broadband network

OS-EU01GS is a new EPON ONU production of Our Company which passive optical network terminal series. It provides one 10/100/1000Mbps base-T interface, one optical interface, and it is very impact. Suitable for home and small business users, can meet the FTTH high-speed data transmission of the application.

Key Features

It takes the PTMP (point to multipoint)network topology, effectively collects and converges scattered Ethernet services, and provides the 10/100/1000M Ethernet standard RJ45 interface, smoothly interconnects with existing networks.
The Dynamic Bandwidth Allocation (DBA) mechanism enables all users to share the 1Gbps bandwidth reasonably, guaranteeing a reliable QoS.
Supports IGMP multicast, effective use of broadband;
Supports multicast VLAN;
Supports China Telecom CTC protocol;
Full management through an Operation Administration Maintenance (OAM) protocol based on IEEE802.3ah, including configuration, alarm, performance monitoring, fault isolation and security management, etc. It supports remote management through OLT and local console management as well.
Supports FEC and DBA;
Supports IEEE802.1Q VLAN protocol;

Supports IEEE 802.1p protocol;
Supports remote loopback and network status diagnosis；
Supports flow statistics；
Supports storm control;
Support NAT;
Support PPPOE;
Support DHCP Server Client;
Support Route;

Technical Parameter

Module	OS-EU01GS
Module	OS-EU01GS
User nterface	1 10/100/1000M RJ45 port.
User nterface	1 10/100/1000M RJ45 port.
	Transmission speed :upstream/downstream symmetrical 1Gbps
	Network coverage radius: 20KM
PON	Optical receive sensitivity:≥-27dBm
	Continuous light power: 0dBm~+4dBm
	Security: SFU authentication mechanism
	Compliant with IEEE 802.3ah
	YD/T 1475-2006
	IEEE 802.1D, Spanning Tree
Protocol	IEEE 802.1Q, VLAN
	IEEE 802.1w, RSTP
	IEEE 802.1w, RSTP
	IEEE 802.3ad (LACP)
	Ethernet–II, Ethernet-SNAP
	Support NAT
	Support NAT
Route	Support PPPOE
	Support PPPOE
	Support Server Client
	Support Server Client
	Support Route

	Port-based VLAN
	Port-based VLAN
VLAN	GVRP
	IEEE 802.1Q VLAN
	Backpressure flow control(half-duplex)
	IEEE 802.3x flow control(full-duplex)
QOS	Prevent Head Of Line
	Prevent Head Of Line
	IEEE 802.1p, CoS
	IEEE 802.1p, CoS
	WR,SP and FIFO queue scheduling algorithm
	Port rate limit
	IEEE 802.1x,access control based upon Port; support local and remote RADIUS.
Safety	CHAP,EAP certification;
	Storm control, port protection,
	Various management modes such as Web, TELNET
Management

	Debug function.
	Debug function.
Size	105mm(L) ×85mm(W) ×25mm(H)
Size	105mm(L) ×85mm(W) ×25mm(H)
	Operating temperature:0℃～60℃;
Environment	Operating humidity:10%～85% non-condensing
	Operating humidity:10%～85% non-condensing
	Storage temperature:-40℃～80℃;
	Storage temperature:-40℃～80℃;
	Storage humidity:5%～95% non-condensing
Power supply	110～240VAC 12V/0.5A DC
Power supply	power interface size:2.1mm/5.5mm
	power interface size:2.1mm/5.5mm
Power Consumption	2.5W
