24 Watt Rimless LED Slim Panel Light Aluminum PC 0.9PFC 80LM IP20 Dimmable

Categories LED Slim Panel Light
Brand Name: ADO
Model Number: AD-RL-PAL-16W/24W/30W
Certification: ROHS CE FCC 3C
Place of Origin: China(mainland)
MOQ: One Carton
Price: Negotiation
Payment Terms: PayPal, Western Union, T/T, L/C
Delivery Time: 5 - 8 work days
Packaging Details: 50 pieces in one carton
Power: 16W / 24W / 30W
Shape: Round Square
Size: 120mm / 175mm / 225mm
CRI: 80RA
Luminous Efficiency: 80LM/W
CCT: 3000K 4000K 6500K
PFC: 0.9
Material: Aluminum+PC
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

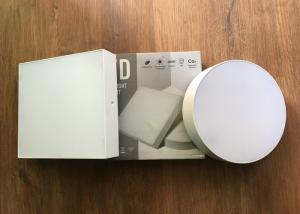

24 Watt Rimless LED Slim Panel Light Aluminum PC 0.9PFC 80LM IP20 Dimmable


16W Rimless LED Slim Panel Light 120MM Aluminum SMD2835 6500K 1280LM 80RA


1. 16W LED Slim Panel Light Technical Data:

ModelAD-RL-SPAL-16WMaterialAluminum+PC
ShapeSquareBeam angle120°
InstallationSurface MountedOperation temperature-20℃~+60℃
EmittingBack LightingMounting height1-4 meters
Power16WLighting Distance2-3meters
CCT3000K, 4000K, 6500KWarranty2 years
Input VoltageAC85-265VIP rankIP20
Luminous Efficiency80LM/WCertificateCE RohS
LED BrandTaiwan EpistarLED ChipSMD2835*90LEDS
Lumen1280LM ± 50 LMDiameter120mm*120mm
CRI80RAHeight

35mm


2. Packing Information:


PowerPCS/CartonCarton Size (CM)CBM/ CTN
16w50 PCS27.5*27.5*460.0347875
24w20 PCS38*38*23.50.033934
30w20 PCS48*48*23.50.054144

3. 16w, 24w and 30w led slim panel light specification:


ModelAD-RL-PAL-16wAD-RL-PAL-24wAD-RL-PAL-30w
Power16W24W30W
Size¢120mm¢175mm¢225mm
Height35mm35mm35mm
LED Chip90LED*SMD2835168LED*SMD2835240LED*SMD2835
Feature

1. Isolated wide voltage Driver
2.CRI: ≥80
3.Light Efficary: ≥80LM/W
4.warranty: 2 years
5.Ordinary color packaging

6. Shape: Round/ Square

7. Voltage: AC85-265V

8. LED Chip: Epistar SMD2835 0.2W

9. CCT: 3000K, 4000K, 6500K

10. Lifespan: 30000 hours

11. Warranty: 2 years

12. Material: Aluminum housing+PC cover

13. Certificate: CE RoHS

14. Installation: Surface Mounted


4. Application:


LED slim panel light are widely used in hotels, hotels, conference halls, clubs, villas and other high-end places for lighting and decoration. Partial lighting such as exhibition halls, art halls, museums, offices, and reading rooms; factories, offices, commercial uses, residential or public facilities, schools, hospitals, and other places that require energy-saving and high color rendering index lighting.


5. Advantages:


1. High quality and long life, can light up to 30,000 hours
2. Environment friendly, low heat, no IR or UV radiation, low consumption
3. High light transmittance>90% ,more soft light.
4. Safe power interface, easy to install and dismantle
5. Color rendering index>80%,soft brightness .

6. Working environment -20°C~45°C, suitable for unusual climate.

7. Save power more than 90% by ordinary lamp

8. No mercury or other hazardous materials, accord with RoHs.

9. No flash, strobe and glare


6. Quality Control:


100% of the lamps will be tested and keep lighting for 48 hours to test its quality reliability, and it’ll be 100% tested again before packing, all of our products will pass strictly QC procedure before shipping.


7. Shipping&Delivery:


1. Delivery time : Bulk order: 25days after confirmation

2. Sample: 7days after you requested

3. Delivery Terms: Bulk order: FOB / EXW / CIF

4. Trial order/ Sample : DHL, UPS, FedEx, EMS etc. Express Delivery
