Brand Name: | STATEMED |
Model Number: | STT9-CCD10 |
Certification: | CE, ISO |
Place of Origin: | CHINA |
MOQ: | 1 Set |
Price: | competitive |
Payment Terms: | L/C, T/T, Credit card, Western Union |
Supply Ability: | 300 Sets per month |
Delivery Time: | 10 working days after payment |
Packaging Details: | carton, wooden case |

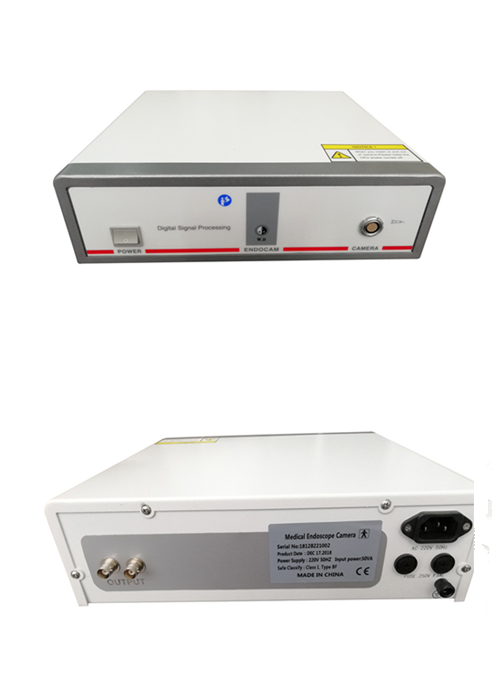

Product Name: | Endoscope CCD Camera |
White balance range: | 200-15000''K |
Image sensor: | SONY SUPER HAD CCD |
The output pixels: | PAL:795(H)*598(V) |
Scanning system: | PAL:752lines,50field/sce |
Signal-to-Noise: | ≥52dB |
Plus control: | Automatic |
Warranty: | 12 month |
Medical Endoscopy Camera System ENT Endoscopic CCD Video Camera
General Overwiew
● High definition: 1/3 CCD. The horizontal definition achieves 700
TV lines. (PAL 795H*596V)
● Easy operating: DSP adjustment.
● Convenience: CCD camera adopts separate model design. The CCD is
with waterproof structure.
● Two-channels output: Video signal adopts BNC Two-channels for
1.0Vp-p signals.
● Convenient power supply: 110-220V×10% input,50-60 Hz
● Watt: 25VA.
Camera | 1/3''D |
Pelx H×V | 795H×598V 410,000 |
Horizontal definition | 700TV lines |
Scan system(Either) | 752line/50 field /sec |
Minimum illumination | 0.5 lux XF 2.0 |
Synchronization manner | Inner-synchronization |
Signal-to-Noise | ≥52dB |
Plus control | Automatic |
Video output | 1.0Vp-p, 75Ωcomplex signal |
Adapter(Either) | OES or rigid |
Connection Cable | 2.5m normal. And special length needs order. |
Power | AC220/110+10% 50Hz-60Hz |
Watt | 25VA |
Deposited temperature | -20℃~+50℃ |
Work temperature | -10℃~45℃ |
Work humidity | 20~85% |
Function | Camera, white balance, video output, the waterproof grade of camera
up to IPX7. |
Other related models
Our Service
1. OEM service : Statemed offers OEM service for distributor to
establish long term business relationship.
2. Warranty: Statemed offers 18 months free after-sale service for
customers, and we are responsible for life-time repair.
3. Technical support: Statemed has professional technical staffs
for customers on the technical support, and responses within 12
hours.
4. Statemed offers one-stop-service, including design, manufacture, delivery and after-sales services.
![]() |
