94.5% Thermal Gas Fired Steam Boiler , 184- 450C Natural Gas Steam Furnace

Yinchen Manufacturer 184- 450C 94.5% thermal efficiency natural gas steam furnace

What is the Details of natural gas steam furnace?

Type	WNS0.5-1.0-Y(Q)	WNS1-1.0-Y(Q)	WNS2-1.0-Y(Q)			WNS3-1.25-Y(Q)	WNS4-1.25-Y(Q)	WNS5-1.25-Y(Q)	WNS6-1.25-Y(Q)	WNS8-1.25-Y(Q)	WNS10-1.25-Y(Q)	WNS10-1.6-Y(Q)	SZS20-2.5-450 Y(Q)
Rated Output (t/h)	0.5	1	2			3	4	5	6	8	10	10	20
Rated Steam Pressure (Mpa)	1.0	1.0	1.25			1.25	1.25	1.25	1.25	1.25	1.25	1.6	2.5
Steam Temperature (℃)	184	184	194			194	194	194	198	194	194	204	450
Thermal Efficiency (%)	92.2	92.4	92.5			92.5	92.8	92.8	93.2	93.5	93.8	94.2	94.5
Rated Oil/Gas Consumption (Kg/h)(Nm³/h)	30.5 38	61 76	122 151			185 230	243 300	306 379	362 400	485 598	610 755	611 756	1221 1510
Power Consumption (Kw)	2.96 (2.96)	4.4/8.9 (3.7)	7/20.2 (7)			9.5/22.7 (10.5)	13/26.2 (13.5)	14.5/28 (15)	23/45.4 (20.5)	24/37.5 (24)	39.5/52 (39.5)	39.5/52 (39.5)	58/65 (58)
Suitable Fuel	Light/ Heavy oil, Natural gas/ Town gas, Coke oven gas
Power Supply(AC)	380V 50Hz
Type of Burning	Pressure Atomization/ Pressurized Combustion
Adjustment Methods	Automatic

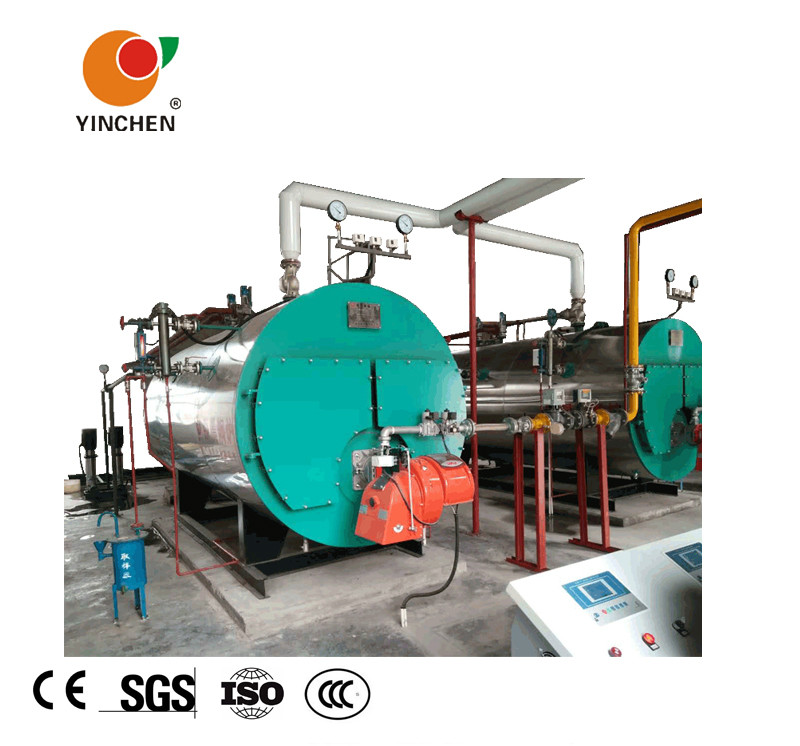

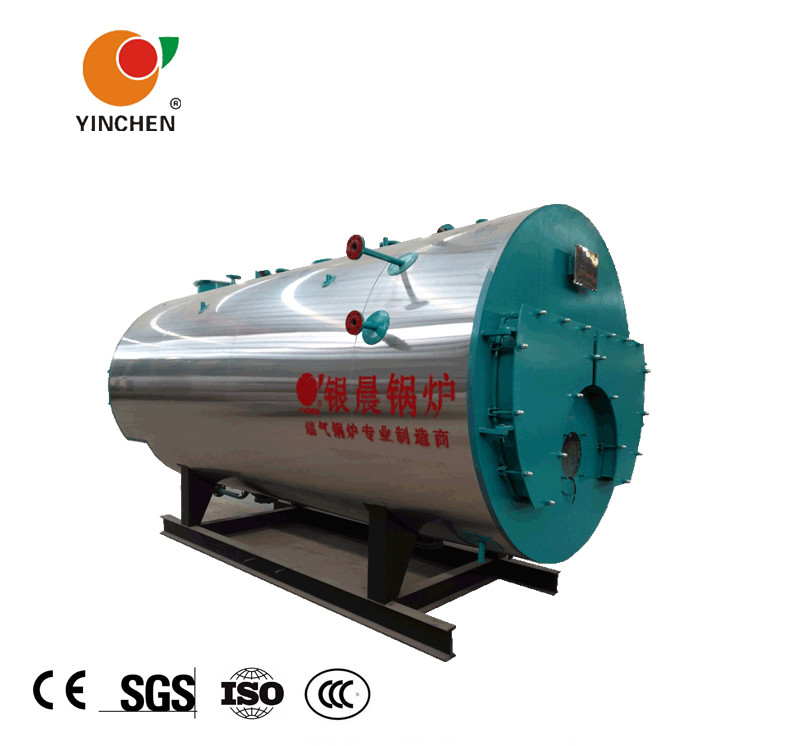

Product Pictures

1. Safety

2. Efficiency

3. Energy Saving

4. Environmental Protection

Automatic Protection Device

1. Monitoring of water level
2. Setting time
3. Electric leakage protection
4. Water shortage protection
5. Power abnormal protection
6. Over pressure protection
7. Intergrated gas manifolds and protection system
8. Flue gas monitoring device

Why Choose Us?

1. We will reply your inquiry in 7*24 hours.
2. Experienced staffs will answer all your questions in fluent and professional English.
3. Customized design is available.

Guarantee: One-year warranty and full-life service for all of our steam boilers;

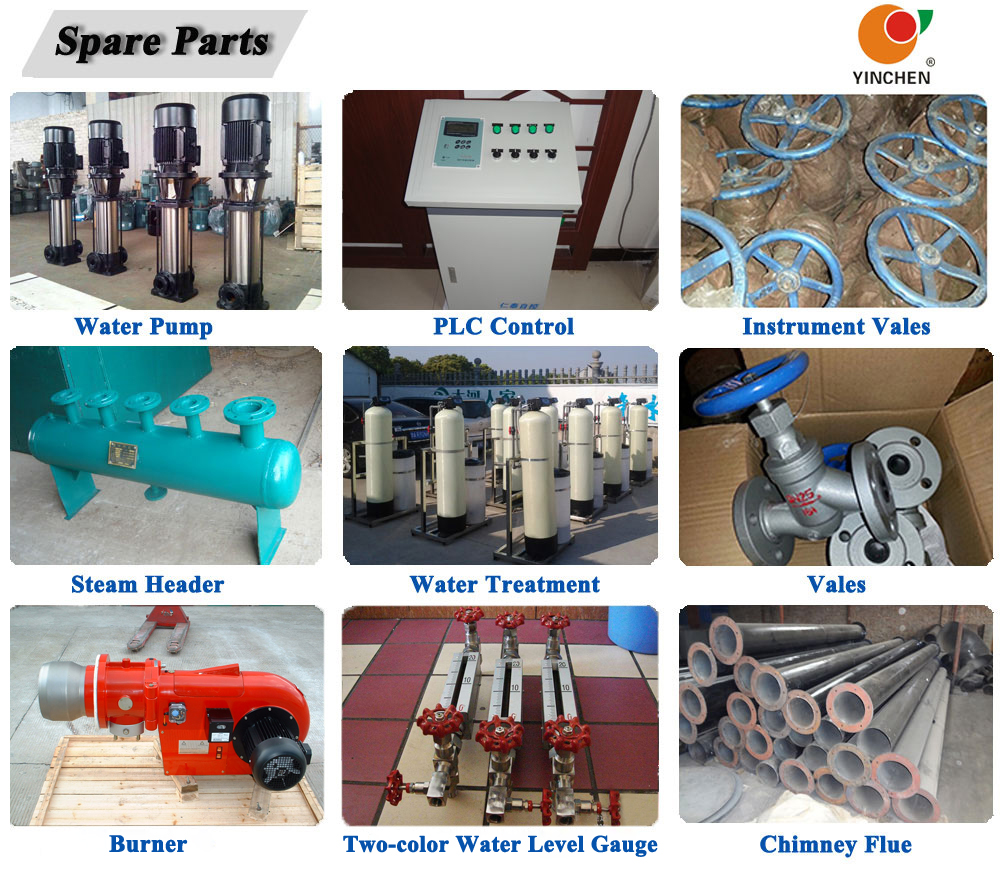

A full range of original spare parts are available for all YINCHEN boilers

Pre-sales Service: Based on customers’ request and budget, our experts make efficient, reliable

solutions, and we produce strictly following customers’ order. Every customer has the chance to visit

our workshops before placing the order. And we help to arrange cars, hotels, and the translators for

every visiting customer.

After-sales Service: Experienced technicians guidance is available on the phone, and on the internet.

One or more engineers will be dispatched to the installation site to help install the customers’ boilers.

We also provide necessary training about boiler operation and daily maintenance to local workers.

PACKING AND SHIPPING

Packaging	Standard Export Package:Regular packing or nude packing.
Transportation	By land or by sea, depended on the exporting area.

How to contact us ?

Send your Inquiry Details in the Below , Click "Send" Now !

Henan Yinchen Boiler Group is a professional boiler manufacturer,the company was founded on over 1976 years experience in the design and manufacture of industry advanced technology.
We have ISO9001:2008 international quality system certification,and are specialized in the production of steam boiler,hot water boiler,thermal oil heater,autoclave and other pressure vessels.
We have an independent R&D institution, We have 18 professional designers and engaging in the development of advanced boiler equipments.
We have professional test equipments and detection system.
Our products have been exported to South Asia,Southeast Asia,Middle East,Africa,and Europe,which indicating the company has achieved successful international development,and continuing to gain more market and customer's trust.
Yinchen boiler group offering the complete servicing,spares and planned maintenance, combed with in-depth technical support.
Yinchen brand has gained the global reputation through the guarantee of quality,unrivalled dependability,long term durability, unique innovation technology features, stable performance in heat generation and transfer systems and professional service.
