| Categories | Spiral Flute Tap |
|---|---|
| Brand Name: | STARRY |
| Model Number: | M3-M30 |
| Certification: | ISO9000 |
| Place of Origin: | CHINA |
| MOQ: | 100 PCS |
| Price: | Negotiable |
| Payment Terms: | T/T, L/C, Western Union, MoneyGram |
| Supply Ability: | 15000pcs per day |
| Delivery Time: | 35days |
| Packaging Details: | plastic box |
| Material: | HSS-4341;HSS-M2;HSS-M35 |
| Type: | tap |
| Surface: | Tin coated |
| Standard: | DIN376 |
| Precision: | 6H |
| Application: | Manual Tapping , Thread Tapping |
| Flute: | Spiral flute |
| Company Info. |
| Jiangsu Xingrui Tools CO.,LTD |
| Verified Supplier |
| View Contact Details |
| Product List |
| Chamfer | type B, 4 - 5 threads with progressive tap and interrupted threads |
| Operation method | Threading machine,CNC lathe,Milling and drilling machine,Lathe |

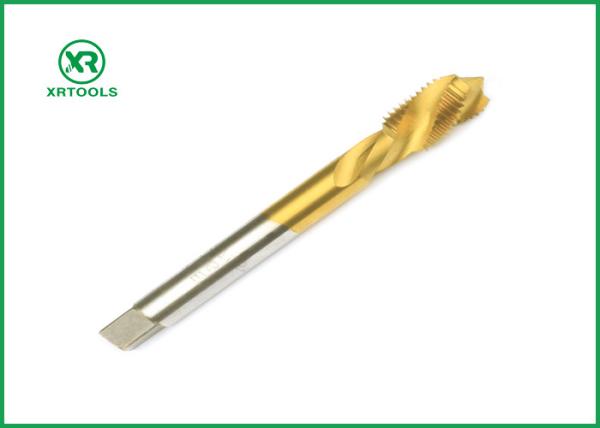

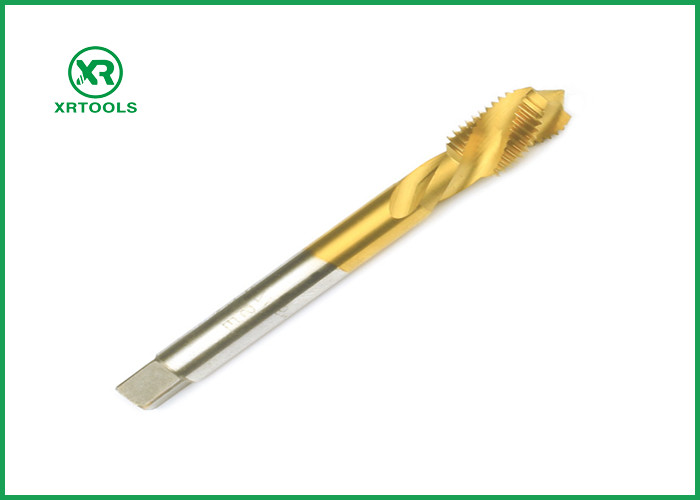

Product Name | DIN376 SPIRAL FLUTE TAPS |
Material | High Speed Steel 4341 6542 M35 and so on |
Hardness | HRC62-66 |
Surface treatment | Tin coated(We can supply differenk kinds surface treatment to you ) |
| Chamfer | type B, 4 - 5 threads with progressive tap and interrupted threads |
Operation method | Threading machine,CNC lathe,Milling and drilling machine,Lathe |
Application | Suitable for through hole tapping of carbon steels and nonferrous metals whose chips are produced in continuous coil form.These taps discharge chips through the hole. |

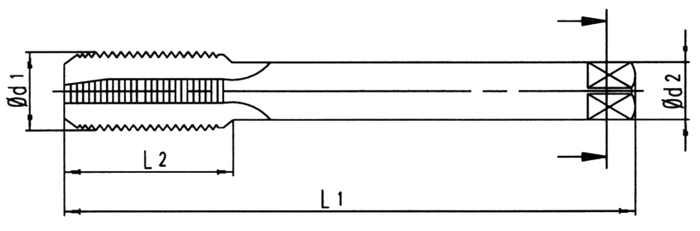

| d1 | p | L1 | L2 | d2 | k |
|---|---|---|---|---|---|
| mm | (pitch) | mm | mm | mm | (h12) mm |
| M3 | 0,5 | 56 | 10 | 2,2 | - |
| M4 | 0,7 | 63 | 12 | 2,8 | 2,1 |
| M5 | 0,8 | 70 | 14 | 3,5 | 2,7 |
| M6 | 1 | 80 | 16 | 4,5 | 3,4 |
| M8 | 1,25 | 90 | 18 | 6,0 | 4,9 |
| M10 | 1,5 | 100 | 20 | 7,0 | 5,5 |
| M12 | 1,75 | 110 | 24 | 9,0 | 7,0 |
| M14 | 2 | 110 | 26 | 11,0 | 9,0 |
| M16 | 2 | 110 | 28 | 12,0 | 9,0 |
| M18 | 2,5 | 125 | 30 | 14,0 | 11,0 |
| M20 | 2,5 | 140 | 32 | 16,0 | 12,0 |
| M22 | 2,5 | 140 | 32 | 18,0 | 14,5 |
| M24 | 3 | 160 | 34 | 18,0 | 14,5 |
| M27 | 3 | 160 | 38 | 20,0 | 16,0 |
| M30 | 3,5 | 180 | 45 | 22,0 | 18,0 |
Used for short screw -in length in through and blind hole. Suitable
for threading in low-alloyed steels, cast, nodular cast iron,
tempered, cast and the other metals.
1. Experience : We are a supplier of many brands in Germany. So we have the
confidence to provide you with the best service.
2. Quality Control : Quality Control System from STARRY Germany ensure our STARRY
Factory's products and service QUALITY which have strict processing
quality Control for every step.
3. Service : We offer OEM&ODM service.and we accept trial order. If you
find any problem. we'll find the suitable solution.
4. Product : We have confidence in the quality of our products.and the product
prices are also competitive.
Q1: Do you have your own brand?
A1: Yes, the brand name is STARRY Tools, we can provide OEM
services to our customers as well.
Q2: What's your target market?
A2: We mainly focus on Europe and South America right now.
Q3: What is the biggest advantage compared to the rivals?
A3: We are one of the strongest HSS Cutting tools supplier in
China.
Q4: What is your MOQ?
A4: 500 pcs
Q5: What about the payment and delivery time?
A5: Delivery time: All items are ready in stock and can be sent
within one week.
Payment: T/T.
100% protection for product quality, on-time shipment and payment
Q6: Can I get some samples?
A6: Yes, we are honored to offer you samples for quality check at
your freight cost.
Q7: How does your factory do regarding quality control?
A7: Quality is priority. We always attach great importance to
quality control from the very beginning to the end of the
production. Every product will be carefully tested before it's
packed for shipment.
|
