2 - 3 Pitch Hss M35 Spiral Flute Machine Tap , Right Hand Modified Bottoming Tap ISO529 Standard

Categories Spiral Flute Tap
Brand Name: STARRY
Model Number: 1/8inch to 1 inch
Certification: ISO9000
Place of Origin: CHINA
MOQ: 200 pcs
Price: Negotiable
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 15000pcs per day
Delivery Time: 35days
Packaging Details: plastic box
Material: Hss-4241;HSS-4341;HSS-4341;HSS-M2;HSS-M35
Produce Name: ISO529 Spiral flute machine tap
Size: UNC UNF BSW BSF
Type: tap
Surface: Fully Ground
Standard: ISO529
Precision: 6H
Application: Manual Tapping , Thread Tapping
Flute: spiral flute
Spiral Angle: 35°
Hardness: 61-66HRC
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

2 - 3 Pitch Hss M35 Spiral Flute Machine Tap , Right Hand Modified Bottoming Tap ISO529 Standard

ISO529/DIN371/376 Spiral Flute machine taps.




ISO529 Taps,Fully Ground,hardness HRC62-63°.
ISO 529 Machine Tap,fully ground,bright finished.
Form C: chamfer 2-3 pitch.
hardness HRC62-64°,Tolerence: 6H,Right Hand.
Suitable for tapping blind hole
Laser-printing as per customer's requirement.
Material: HSS M2/M35

HSS Spiral flute machine tap

Standard:

DIN/ANSI/JIS

Flute:

sprial flute

Thread/Pitch

Coarse/ Fine

Size:

M2-M60,BSW,UNC.

Hole type:

Sprial flute for blind hole

Working machine

Lathe, Radial Drilling machine, Bench Drill Machine, Pillar Drill machine, Vertical Milling machine


SIZEOVERALL LENGTHTHREAD LENGTH
1/8-404811
3/16-245816
3/16-325816
7/32-286217
1/4-206619
1/4-266619
9/32-326619
5/16-187222
5/16-227222
3/8-168024
3/8-208024
7/16-148525
7/16-188525
1/2-128929
1/2-168929
9/16-129530
9/16-169530
5/8-1110232
5/8-1410232
11/16-1111237
11/16-1411237
3/4-1011237
3/4-1211237
7/8-911838
7/8-911838
1-813045
1-1013045

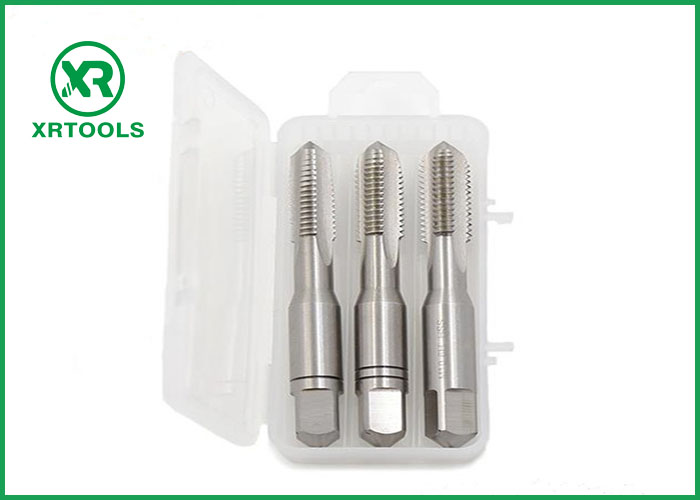

Packing:plastic box,1pcs one palstic box,we can supply rose brand plastic box also.then put in color inner box.
