1.6kv Mini Scanning Electron Microscope Sample Coating Ion Sputtering Coater

Categories Scanning Microscope
Brand Name: OPTO-EDU
Model Number: A50.7011
Certification: CE, Rohs
Place of Origin: China
MOQ: 1 pc
Price: FOB $1~1000, Depend on Order Quantity
Payment Terms: T/T, West Union, Paypal
Supply Ability: 5000 pcs/ Month
Delivery Time: 5~20 Days
Packaging Details: Carton Packing, For Export Transportation
Vacuum Chamber: Dia 100mm*H130mm
Specimen Stage: Dia 40mm(Hold 6 Specimen Cups)
Gold Sputtering Target: Dia 58mm*0.12mm(thickness)
Vacuum Gauge: Pirani Gage
Vacuum Protection Point: 20Pa With Microscale Inflation Valve
Working Gas: Argon or air with argon gas special air inlet and gas regulating in microscale
Sputtering Voltage: 1.6KV
Gross Weight: 48kg
Compliance: CE
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

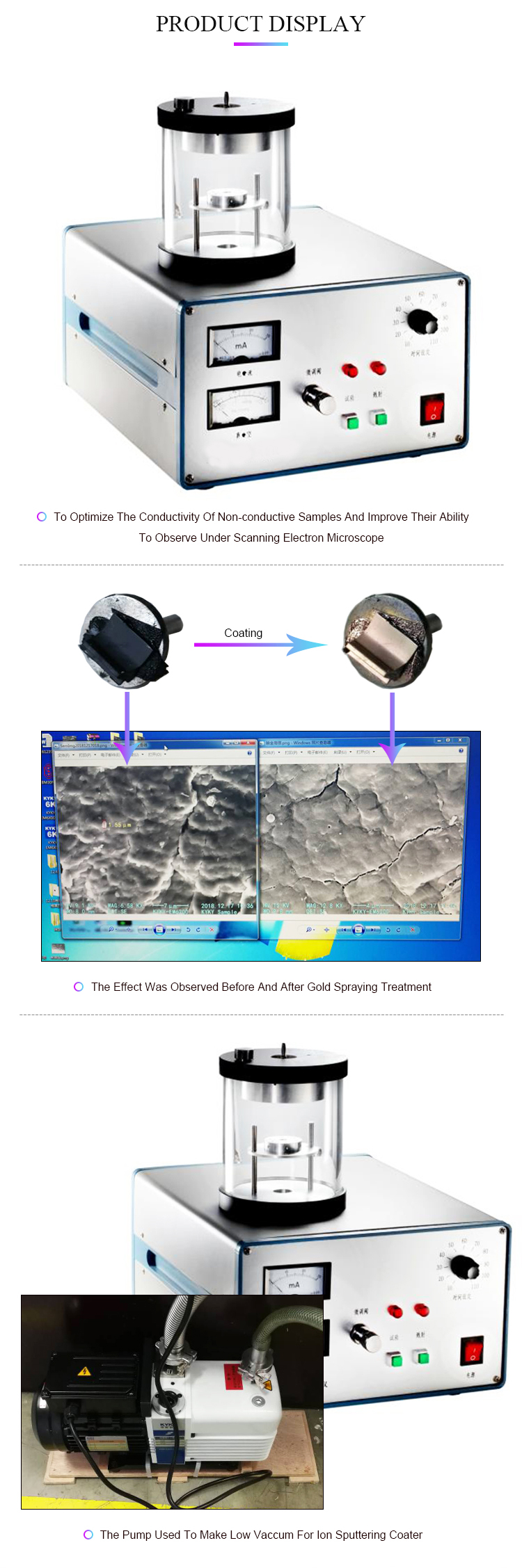

1.6kv Mini Scanning Electron Microscope Sample Coating Ion Sputtering Coater

--Glass processing chamber: ∮100mm; 130mm High.
--Specimen stage size: ∮40mm( Hold 6 specimen cups)
--Golden target size:
∮58mm*0.12mm(thickness)
--Vacuum detection: Pirani gage
--Vacuum protection:20 pa with microscale inflation valve
--Medium Gas:Argon or air with argon gas special air inlet and gas regulating in microscale.

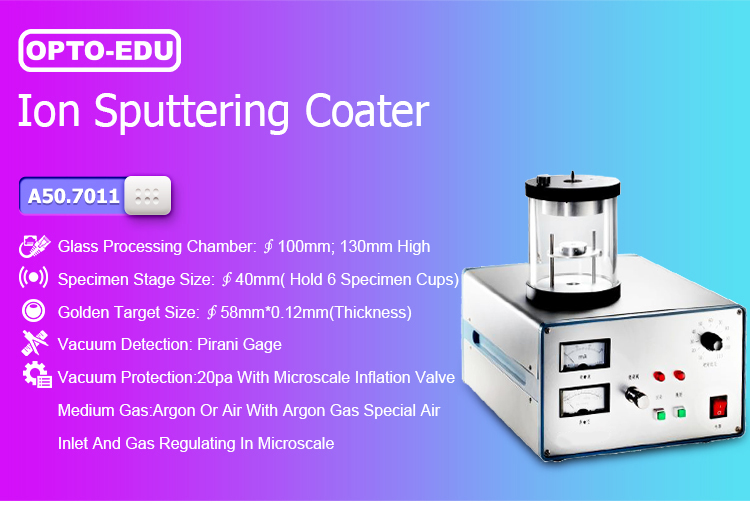

A50.7011 Ion Sputter Coater
Vacuum ChamberDia 100mm*H130mm
Specimen StageDia 40mm(Hold 6 Specimen Cups)
Gold Sputtering TargetDia 58mm*0.12mm(thickness)
Vacuum GaugePirani Gage
Vacuum PumpRotation Vane Pums: 2L / s
Vacuum Protection Point20Pa With Microscale Inflation Valve
Working GasArgon or air with argon gas special air inlet and gas regulating in microscale
Sputtering Voltage1.6KV
Gross Weight48kg
ComplianceCE
