APO DIC Metallurgical Optical Microscope Halogen Lamp Illumination

Categories Metallurgical Optical Microscope
Place of Origin: China
Brand Name: CNOEC, OPTO-EDU
Certification: CE, Rohs
Model Number: A13.0910
MOQ: 1 pc
Price: FOB $1~1000, Depend on Order Quantity
Packaging Details: Carton Packing, For Export Transportation
Delivery Time: 5~20 Days
Payment Terms: T/T, West Union, Paypal
Supply Ability: 5000 pcs/ Month
Eyepiece: High Eyepoint Plan PL10x/25mm, Diopter Adjustable
Objective: LWD Infinity Plan Metallurgical BF/DF DIC Semi-APO Objective
Nosepiece: BD Sextuple Nosepiece (With DIC Slot)
Working Stage: 4" Three Layer Mechanical Stage, For Transmit & Reflect Light
Reflect Light: BF/DF Reflect Illumination
Polarizing For Reflect Light: Fixed Polarizer Flashboard
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

APO DIC Metallurgical Optical Microscope Halogen Lamp Illumination


APO DIC Metallurgical Optical Microscope Halogen Lamp Illumination

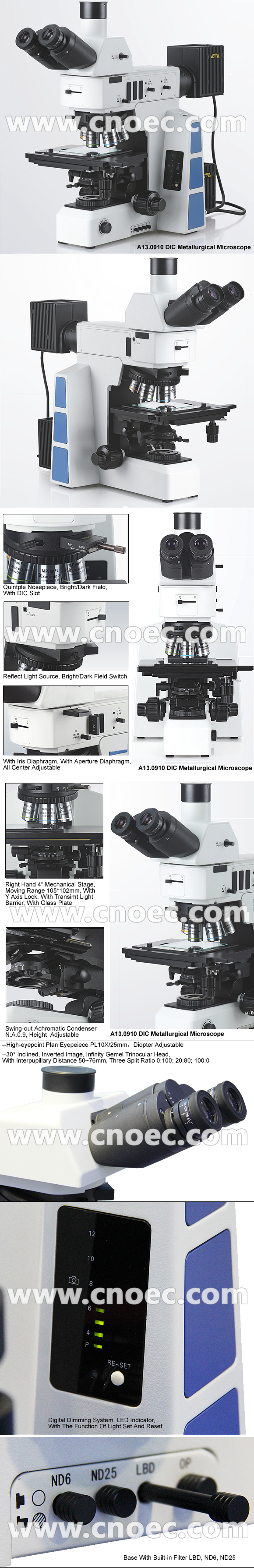

A13.0910 DIC Metallurgical Microscope, APO , newly developed in 2014!
--Infinity Optical System, Semi-Aprochromatic, Fluorescent Objectives
--BF Nosepiece, With Socket For DIC
--Large Double Layer Mechanical Stage, 187*166mm
--Swing-Out Achromatic Condenser, N.A.0.9
--12V100W Halogen Lamp, Center Adjusted,
--Digital Dimming System, With LED Indicator

--Reflect BF/DF Light Source, With Iris Diaphragm


A13.0910 Upright Metallurgical Microscope, BF/DF, DIC, Semi-APO, PolarizingRRTCata. No.
Infinity
Optical System
BF/DF, Bright Field/Dark Field, Reflect Light
BF/DF, Bright Field/Dark Field, Transmit & Reflect Light
PL, Polarzing
DIC, Different Interference Contrast
Head30° Inclined Erect Image Infinity Gemel Trinocular Head, Interpupillary Distance 50~76mm, Light Spiltting Ratio Switch E100:P0/E0:P100,A53.0913-T30E
30° Inclined, Invert Image Infinity Gemel Trinocular Head, Interpupillary Distance 50~76mm; Light Splitting Ratio Switch R:T=100:0 or 20:80 or 0:100A53.0913-T30
5-35° Tiltable, Inverted Image, Infinity Gemel Trinocular Head, Interpupillary Distance 50~76mm; Light Splitting Ratio 50:50 or 100:0 or 0:100A53.0913-T535
CCD Adapter0.5x C-Mount, For 1/2"CCD, Focus AdjustableA55.0930-05
0.35x C-Mount, For 1/2"CCD, Focus AdjustableA55.0930-35
0.65x C-Mount, For 1/2"CCD, Focus AdjustableA55.0930-65
1.0x C-Mount, For 1"CCD, Focus AdjustableA55.0930-10
EyepieceHigh Eyepoint Plan PL10x/25mm, Diopter Adjustable●●●●A51.0904-1025T
High Eyepoint Plan PL10x/26.5mm, Diopter AdjustableA51.0904-10265T
High Eyepoint Plan PL10x/25mm, Diopter Adjustable, With ReticleA51.0905-1025T
High Eyepoint Plan PL10x/26.5mm, Diopter Adjustable, With ReticleA51.0905-10265T
ObjectiveInfinity Plan Semi-APO LWD Metallurgical BF/DF DIC Objective
5x/0.15, W.D.=13.5mmA5M.0941-5
10x/0.30, W.D.=9mmA5M.0941-10
20x/0.50, W.D.=2.5mmA5M.0941-20
20x/0.40, W.D.=8.5mmA5M.0941-20A
50x/0.80, W.D.=1.0mmA5M.0941-50
100x/0.90, W.D.=1.0mmA5M.0941-100
Infinity Plan Semi-APO LWD Metallurgical BF DIC Objective
5x/0.15, W.D..=19.5mmA5M.0942-5
10x/0.30, W.D..=10.9mmA5M.0942-10
20x/0.50, W.D.=3.20mmA5M.0942-20
50x/0.80, W.D.=1.20mmA5M.0942-50
100x/0.90, W.D.=1.0mmA5M.0942-100
Semi-APO Objective With Correcting Ring 50X/0.70, WD=2.3~2.9mmA5M.0945-50
NosepieceBF/DF 5 Holes, With Socket For DIC Slide & Polaring Analyzer Slide, For MetallurgicalA54.0930-RM5BD
BF/DF 6 Holes, With Socket For DIC Slide & Polaring Analyzer Slide, For MetallurgicalA54.0930-RM6BD
BF 6 Holes, With Socket For DIC Slide & Polaring Analyzer Slide, For MetallurgicalA54.0930-RM6
BF 7 Holes, With Socket For DIC Slide & Polaring Analyzer Slide, For MetallurgicalA54.0930-RM7
DICDIC Attachment, Apply For BD ObjectiveA5M.0952
Working Stage4" Three Layer Mechanical Stage, For Transmit & Reflect Light
Moving Range 102*105mm, Low Position X/Y Moving Handle,
With Glass Plate For RT Model, With Metal Plate For R Model
A54.0950-M4
Rotatable Working Stage 4", For Wafer 2", 3", 4"A54.0950-W234
FocusingLow-Position Coaxial Coarse & Fine Adjustment, Coarse Adjustment Distance: 25mm; Fine Precision: 0.001Mm. With Coarse Adjustment Stop And Tightness Adjustment.
Main BodyReflected Body,
Digital Dimming System With Light Indicator, Brightness Set & Reset Function

Reflected/Transmitted Body,
Digital Dimming System With Light Indicator, Brightness Set & Reset Function, With Condenser Holder

Transmit
Light
12V100W Halogen Lamp House, Pre-Centered A56.0915-LH
12V100W Halogen Bulb (Philps 7724) A56.0923-12100
Swing-out Type Achromatic Condenser, N.A.0.9/0.25 A56.0934-R
Built-In Transmit Filters LBD/ND6/ND25
Reflect
Light
BF/DF Reflect Illuminator, With Iris Field Diaphragm and Aperture Diaphragm, Both Central Adjustable, With Filter Slot and Polarizing Slot, With BF/DF SwitchA56.0915-RL
12V100W Halogen Lamp House, Pre-CenteredA56.0915-LH
12V100W Halogen Bulb (Philps 7724)A56.0923-12100

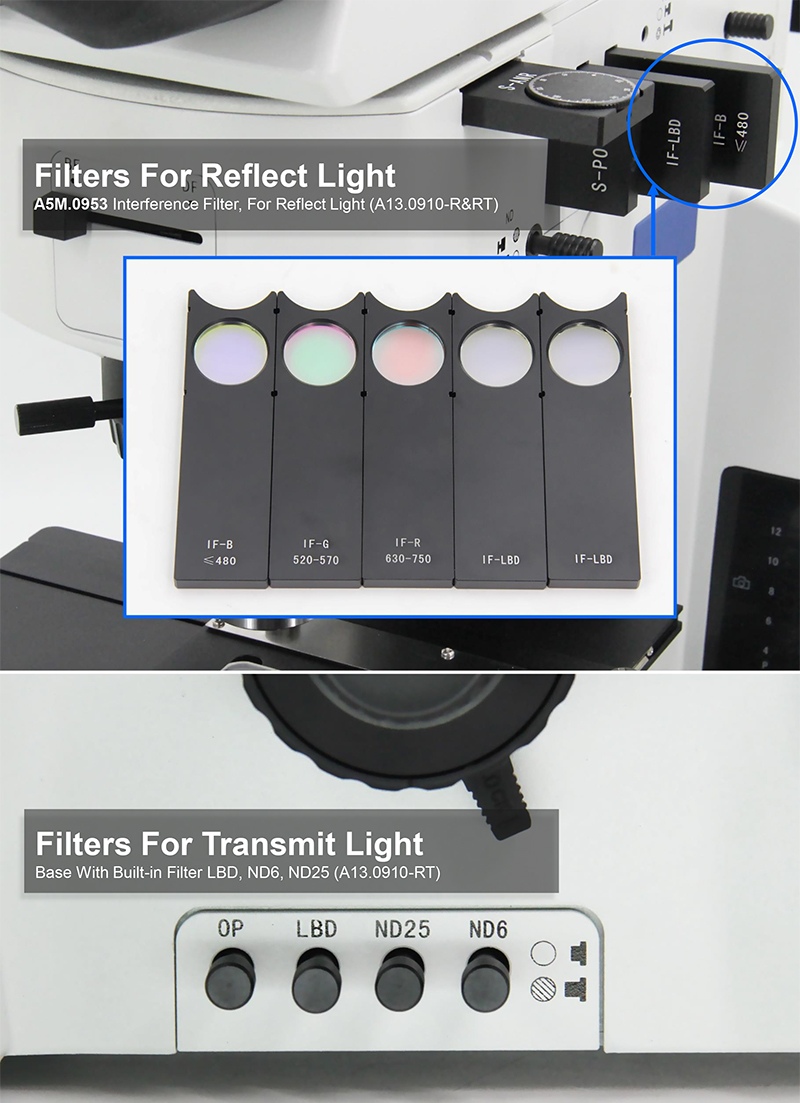

Interference Filter, For Reflect Light, Netural WhiteA5M.0953-LBD
Interference Filter, For Reflect Light, Blue, <480nmA5M.0953-B
Interference Filter, For Reflect Light, Green, 520~570nmA5M.0953-G
Interference Filter, For Reflect Light, Red, 630~750nmA5M.0953-R
Polarizing For Reflect LightFixed Polarizer FlashboardA5P.0924-RP
360° Rotatable Analyzer FlashboardA5P.0924-RA360
Fixed Analyzer FlashboardA5P.0924-RA
PowerBuilt-In 100-240V Wide Voltage Transformer, One Way Power Output
Built-In 100-240V Wide Voltage Transformer, Double-Way Power Output.
OtherAllen Key M3
Allen Key M4
Specimen PresserA5M.0920
Upgrade Series Model
BilogicalA13.0910 DIC Metallurgical Microscope, APO  A13.0910
Fluorescent
Remark: '●' Means Standard Outfit, '○' Means Optional
