Industry Inspection Inverted Metallurgical Microscope A13.0912-A Trinocular

Categories Metallurgical Optical Microscope
Brand Name: CNOEC, OPTO-EDU
Model Number: A13.0912-A
Certification: CE|Rohs
Place of Origin: China
MOQ: 1 pc
Price: Depend on Order Quantity
Payment Terms: T/T, West Union, Paypal
Supply Ability: 5000 pcs/ Month
Delivery Time: 5~20 Days
Packaging Details: Carton Packing, For Export Transportation
Application: Research
Drawtube: Trinocular
Illumination: Halogen Lamp
Magnification: 50X-500X
Theory: Metallurgical Optical Microscope
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Industry Inspection Inverted Metallurgical Microscope A13.0912-A Trinocular


Infinity Color Corrrected Optical System Metallurgical Optical Microscope A13.0912


Introduction


A13.0912 Inverted Metallurgical Microscope is widely applied for the research of cast,smelt,heat treatment and the inspection of raw material and material processing, as well as food safety evaluation, medical test an geological test.



Specification

A13.0912 Inverted Metallurgical Microscope
Optical SystemInfinity Color Corrrected Optical System
FrameOne-piece Construction,With Filter Slot & Polarizing Slot
HeadTrinocular Head, Split Ratio 100:0 or 0:100, 45° Inclined, 360° Rotatable, IPD 50-75mm,
EyepiecePlan WF10x/22mm, Diopter Adjustable, Reticle Attachable,High Eye-point,
FieldBright & Dark Filed, With BD Shifter
ObjectiveInfinity LWD BD Plan Achromatic Metallurgical Objective DIC-5x/0.15 WD11mm
Infinity LWD BD Plan Achromatic Metallurgical Objective DIC-10x/0.3 WD9.5mm
Infinity LWD BD Plan Achromatic Metallurgical Objective DIC-20x/0.45 WD3.4mm
Infinity LWD BD Plan Achromatic Metallurgical Objective 50x/0.55 WD7.5mm
Focus SystemCoaxial Coarse & Fine Focusing System With Adjustable Tension, Coarse Range 9mm (6.5mm up & 2.5mm down), Fine Precision 2μm,
NosepieceBD Quintuple Nosepiece With DIC Slot
CondenserLWD N.A. 0.30 With Iris Diaphragm And Aperture Disphragm, Both Centers Adjustable

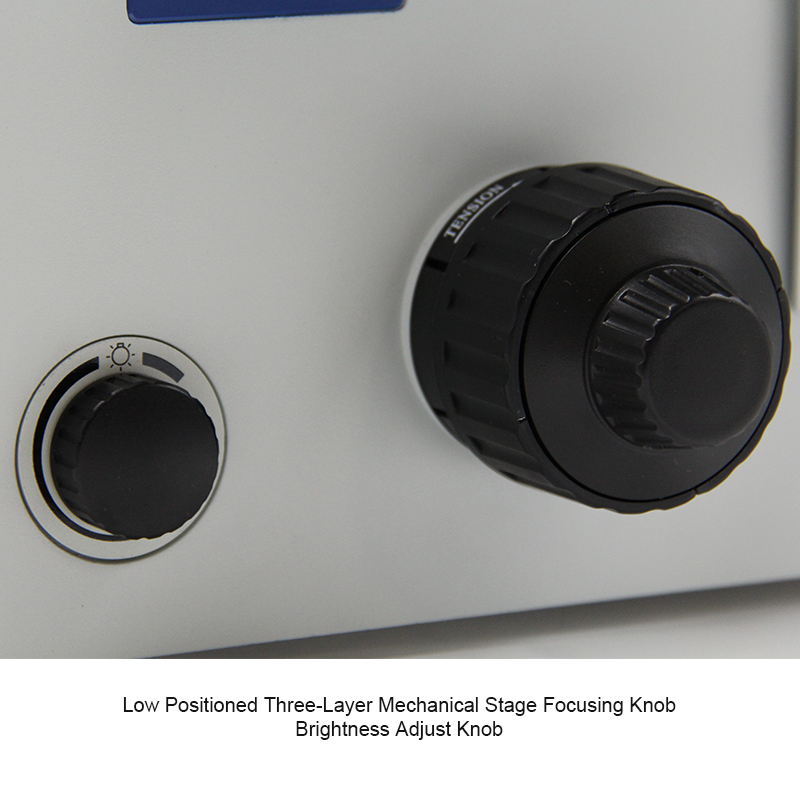

StageRight Hand Controls, Low Positioned, Three-Layer Mechanical stage, size 240x250mm, moving range 50x50mm, Bothway Linear Guide Rail,
Metal Specimen Holder (Dia. 25)
Light SourceReflected Halogen Lamp, 12V100W
Light Indicator
Brightness Adjustable
ECO Infared Induction System (Auto on/off)
External Wide Voltage Transformer, 100V-240V Input, 12V13.4A Output,
PolarzationPolarizer & 360° Analyzer
OtherPower cord
Optional Accessories
Item No.
EyepiecePlan WF15x/16mm, Diopter Adjustable, Reticle Attachable,High Eye-point
ObjectiveInfinity LWD BD Plan Achromatic Metallurgical Objective 100x/0.8 WD2.1mm
Adapter035x C-Mount
0.5x C-Mount
0.65x C-Mount
1x C-Mount
DICDIC Slider
