Brand Name: | YUDA |
Model Number: | Expanded metal mesh |
Place of Origin: | CHINA |
MOQ: | 50 Meters |
Price: | Decide according to requirements |
Payment Terms: | T/T, L/C, D/A, D/P, Western Union, MoneyGram |
Supply Ability: | 200000 Meters/ day |
Delivery Time: | 3-10 day |
Packaging Details: | Customized according to buyer's requirements |
Product Name: | Expanded metal mesh |
Key Words: | Anti-Slip And Fire Resistant |
Material: | Low carbon steel /stainless steel / aluminum/copper etc. |
Hole shape: | Diamond Hole, hexagonal, etc, |
Thickness: | 0.1 - 8mm or custom |
Length: | 1-50m/roll , Customers' Requirement |
Width: | 0.5-2m, Customers' Requirement |
Wire diameter: | Requirement |
Company Info. |
Anping Yuda Wire Mesh Co., Ltd. |
Verified Supplier |
View Contact Details |
Product List |

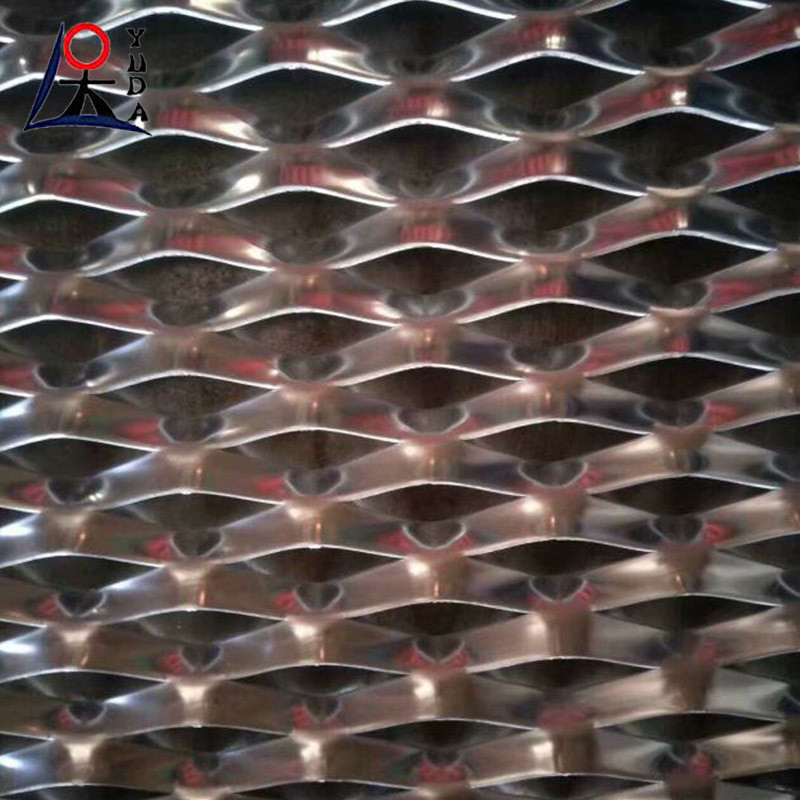

Expanded Steel Mesh Sheets Anti-Slip And Fire Resistant Corrosion Resistance
The process of making plastic sprayed expanded metal mesh usually includes the following steps:
Preparing the metal mesh: firstly, the expanded metal mesh needs to be cleaned and surface treated to ensure that the plastic coating can be firmly adhered to the metal surface.
Spraying the plastic coating: On the prepared expanded metal mesh,
the plastic coating is evenly sprayed onto the surface of the metal
mesh using spraying equipment. Commonly used plastic coatings
include polyester, polyvinyl chloride (PVC) and others.
Curing and drying: After spraying, the expanded metal mesh
undergoes a curing and drying process to ensure that the plastic
coating forms a strong protective layer on the metal mesh.
Common specification of Expanded Metal Walkway Grating | |||||
Thickness (mm) | Strand width (mm) | SWD (mm) | LWD (mm) | SW(mm) | LW(mm) |
5 | 6.5 | 30 | 75 | 2000 2300 1800 3000 | 600 750 900 1200 |
5 | 6.5 | 30 | 80 | ||
5 | 7.5 | 36 | 100 | ||
5 | 7.5 | 36 | 136 | ||
5 | 8 | 40 | 100 | ||
5 | 8 | 40 | 120 | ||
5 | 11 | 55 | 100 | ||
5 | 11 | 55 | 135 |
![]() |
