| Categories | Brine Tank Valve Chemical Tank |
|---|---|
| Brand Name: | Ihomepager |
| Model Number: | ZJ-46+JP999 |
| Keyboard Size: | 140 * 100 *25mm |
| Receiver Size: | 200*123*25mm |
| Sensitivity: | -110dBm |
| Working frequency: | 433.92MHz |
| Decoding: | Learning Code |
| Capacity: | 999 |
| Alert mode: | Dingdong, English Voice |
| Distance: | 500m (in the open area) |
| Receiver Weight: | 0.8kg |
| Packing: | Carton |
| Selling Units: | Single item |
| Single package size : | 30X25X20 cm |
| Single gross weight: | 3.0 kg |
| Package Type: | carton |
| MOQ: | 1-9 Sets |
| Price: | $50.00 |
| Supply Ability: | test |
| Company Info. |
| MJY test Tech.co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
How it works
system configuration
(1) Keyboard--JP999
(2) Signal Receiver---ZJ-46
1.Patient come to the hospital and registered.
2.The nurse give each patient a ticket.
3.When the number is on turn,the doctor will press the keyboard (JP999) .
4.The display receiver(ZJ-46) will display the number.
Specifications and pictures

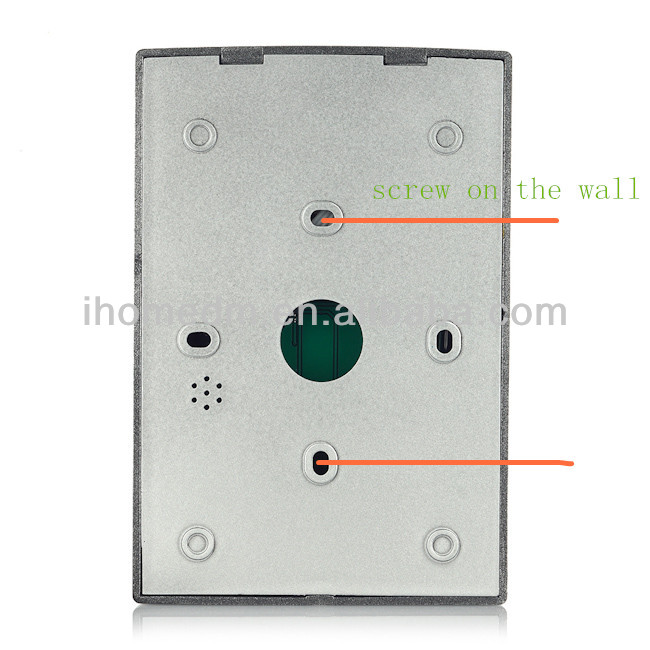

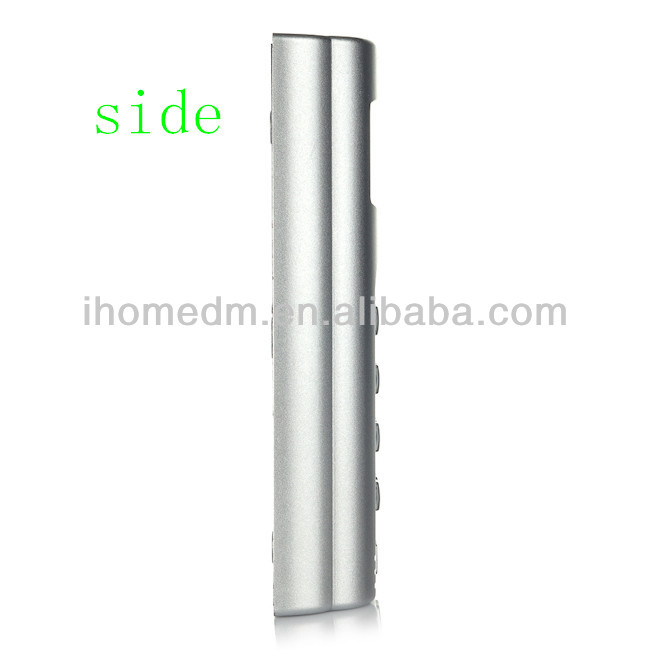

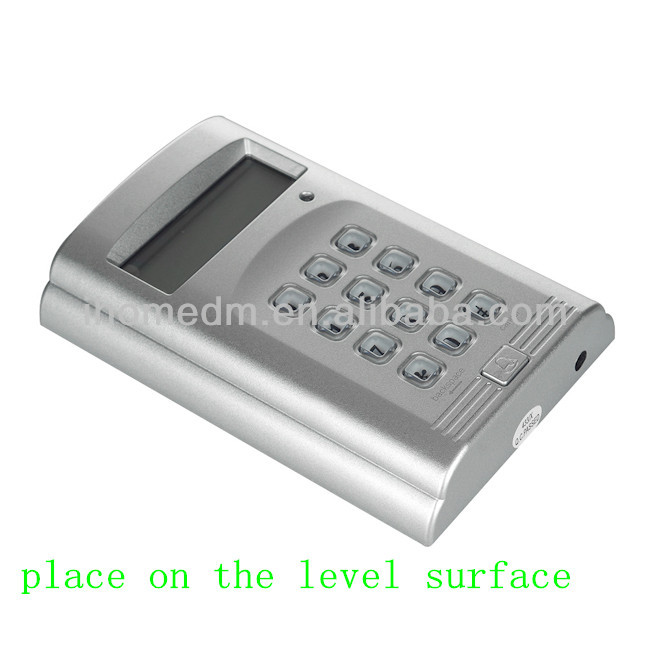

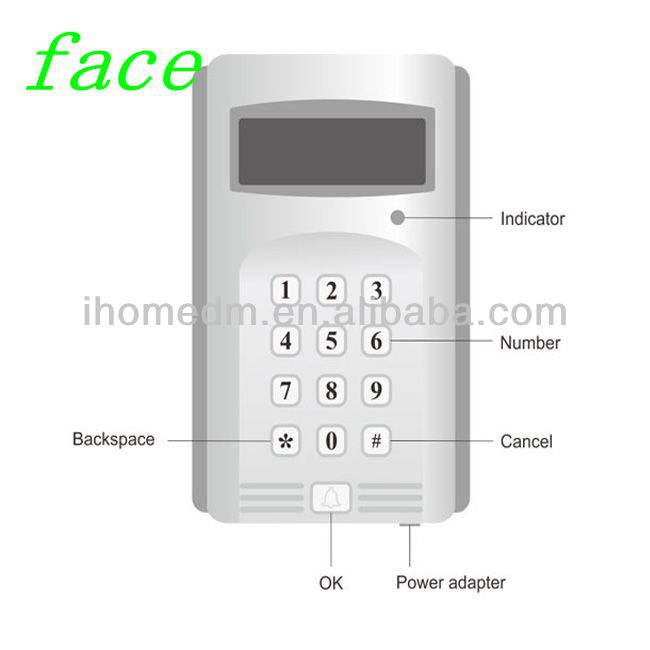

Keyboard--JP999
Specifications
Working frequency | 315MHz/433.92MHz |
Working voltage | DC5~9V (power adapter) |
Working current | ≤ 75mA±5mA |
Encoding mode | learning code |
Working temperature | -10°C~+50°C |
Product size | 140 × 100 × 25mm |

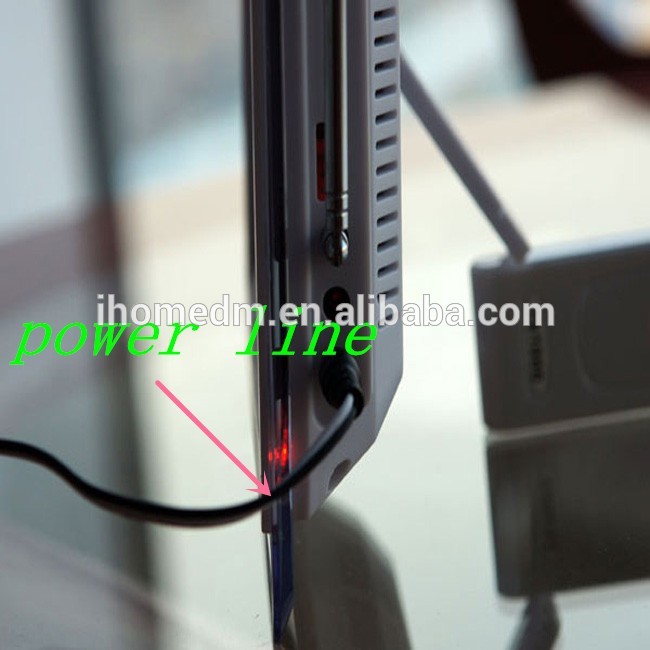

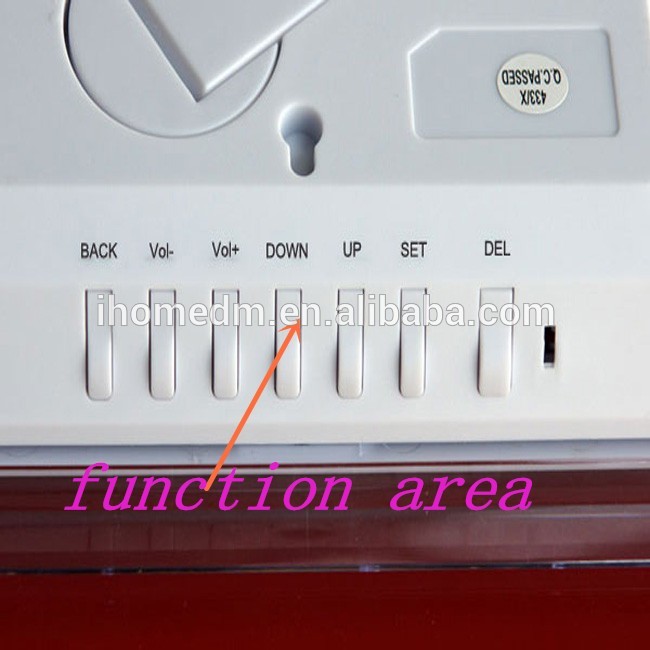

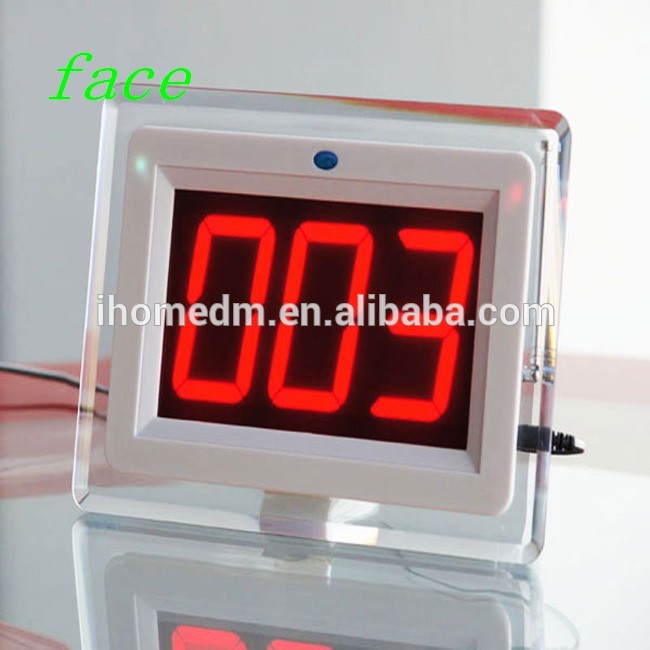

Display Receiver--ZJ-46
Specifications
| ZJ-46 | Specifications | |
 | Voltage | DC9V/1A power supply |
| Frequency | 433.92MHz | |
| Standby current | 60mA | |
| Working current | 600mA | |
| Receiving sensitivity | -110dBm | |
| Decoding | Learning Code | |
| Modulation | AM | |
| Alert mode | Dingdong , English voice | |
| Size | 200*123*25mm | |
| Weight | 0.8kg | |
| Transmitting distance | 500m in the open area | |
| Working temperature | -10℃~+50℃ | |
|
