PVC LSZH Single Mode Armored Fiber Optic Cable Multi-core 144 Cores Bundle Indoor type

Indoor PVC Or LSZH Fiber Armored Cable GJAFKV Multi-core Bundle type

GJAFKV Indoor multi-core bundle type armored fiber optic cable is a multi-strand aramid fiber reinforced with a multi-core bundle mini ф250μm optical fiber surface. A layer of PVC or LSZH inner sheath is extruded on the stranded surface as a subunit, the subunit is wound with a layer of steel wire armor, The sub-unit and the non-metallic reinforcements FRP (and possible mats) are stranded in a circle, wrapped with a dry water-blocking tape between the core and the sheath, and finally the PVC (or LSZH) sheath is extruded cable.

Optical Characteristics​

Cable Type	Fiber Count	Subunit Diameter mm	Cable Diameter mm	Cable Weight Kg/km	Tensile Strength Long/Short Term N	Crush Resistance Long/Short Term N/100m	Bending Radius Static/Dynamic mm
GJFJV+SV	72	3	14	42	300/750	200/1000	20D/10D
GJFJV+SV	144	3	18	65	300/750	200/1000	20D/10D

Application

Various conventional connector products. Pigtail, jumper.

Optical communication equipment, optical patch panels, fiber to the desktop and other light even.

Optical connection of optical equipment, instruments, etc.

Indoor horizontal wiring, vertical wiring within the building; LAN network, multi-information point connection.

Long-distance, outdoor, building wiring, trunking optical hybrid optical connection.

The backbone of the tail cable, access to the equipment inside the building.

Small installation space and occasional wiring.

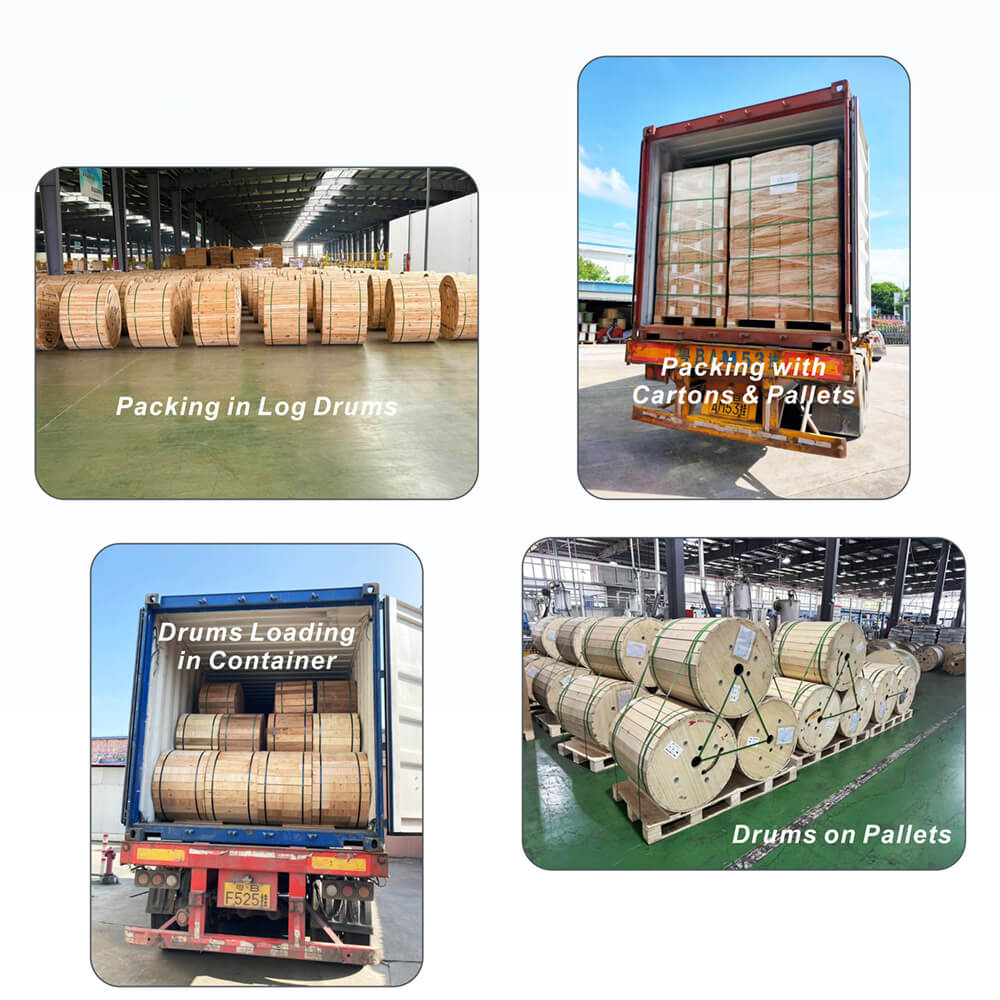

Our Package

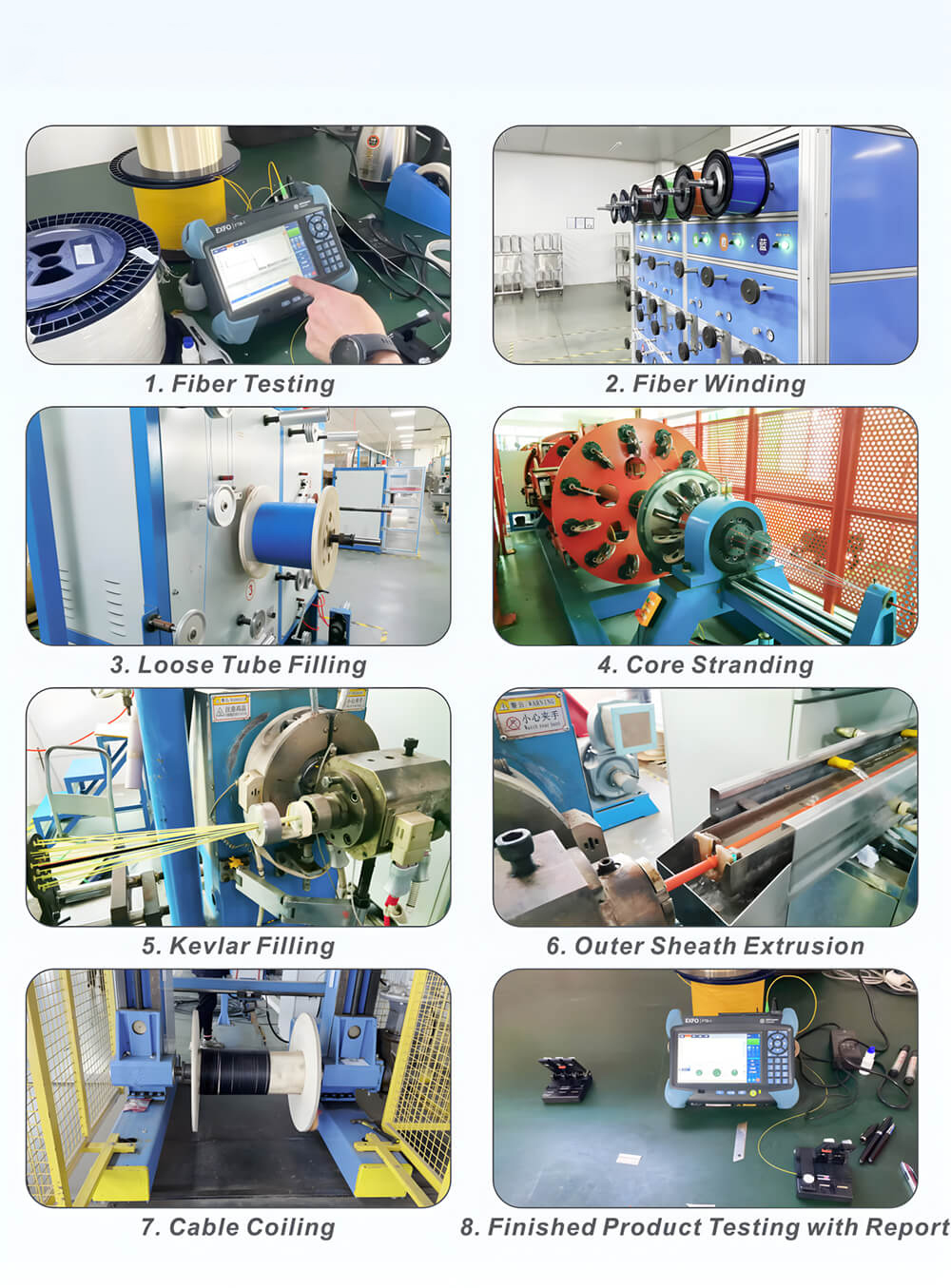

Production Flow

DOWELL Factory Display

We have two subcompanies, one is SHENZHEN DOWELL INDUSTRIAL Which produce Fiber Optic Series and another is NINGBO DOWELL TECH which produce Drop Wire Clamps and Copper Telecom Series. Our products are related to whole cabling system, such as FTTH Cabling, Distribuction Box, LSA Modules and accesspries. Our products are related to whole cableing system, such as FTTH cableing accessories,we will propagate enterprise spirit of civilization unity truth seeking struggle development and try our best to build our company as a leader in telecom area. We also implement the concepe of customer value creation for customer, tailored products to meet the needs of defferent customer and continuously provide customer with solutions and technical problems, further exploration and innovation and excellence.

Our Factory

Excellent Business Partners

our products have been well accepted by more than 50 Countries. Most of them have been used at their telecom projects, and we have become one of the reliable brands among their local telecom companies.

Showroom

Step into our cutting-edge sample room and experience the future of fiber optic communications. Our meticulously curated collection showcases the latest advancements in optical fiber technology, offering a hands-on opportunity to explore our comprehensive range of high-performance products.

Our Team

Our team's expertise spans the entire spectrum of fiber optic communications, from designing and manufacturing high-performance optical fibers to implementing robust network infrastructure. We take pride in our ability to tackle complex challenges and deliver reliable, high-speed connectivity solutions that power the digital world.
