| Categories | Series 6Z, Cylinder Type Crystal Unit |
|---|---|
| Brand Name: | SJK |
| Model Number: | 2*6、3*8 |
| Certification: | SGS,ROHS,REACH |
| Place of Origin: | China |
| MOQ: | 1000pcs |
| Price: | negotiable |
| Payment Terms: | T/T, |
| Supply Ability: | 30Kpcs per Month |
| Delivery Time: | 6-8weeks |
| Packaging Details: | 3000pcs |
| Type: | 6Z Cylindric Crystal |
| Frequency Range: | 3.2MHz to 50MHz |
| Overtone Order: | Fundamental /3rd Overtone |
| Size: | 2*6 ,3*8, |
| Packing Unit: | 1000pcs. |
| Applications: | IoT, Security, PC and Peripherals, Microprocessor Systems, Instrumentation, Automotive Electronics, etc. |
| Frequency Aging: | +/-5ppm max |
| Shunt Capacitance: | 1.0pF max |
| Shock Resistance: | 5000G max |
| Drive Level Dependence: | +/-10ppm max |
| Load Capacitance: | 8pF to 32pF |
| Storage Temperature Range: | -55°C to +125°C |
| Operating Temperature Range: | -40°C to +85°C |
| Vibration Resistance: | 10G max |
| Aging: | +/-3ppm max |
| Frequency Tolerance: | +/-10ppm |
| Company Info. |
| Shenzhen Crystal Technology Industrial Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
Features
Wide frequency range from 3.579MHz to 50MHz
High shock tolerance
Small size
Reliable frequency stability
Low power consuming
Applications: IoT, Security, PC and Peripherals, Microprocessor Systems, Intrumentation, Automotive Electronics, etc
Specifications
| Type | 6Z Cylindric Crystal | |
| Size | 3×9mm / 3×10mm | 2×6mm / 3×8mm |
| Frequency Range | 3.579~4.0MHz | 4.0~50MHz |
| Load Capacitance | 12pF, 16pF, 20pF, or specify | |
| Drive Level | 10~+100μW | |
| Frequency Tolerance | ±10~±30ppm, or specify | |
| Insulation Resistance | 500MΩ AT DC200V | |
| Series Resistance | 40~180Ω (3.579~30MHz) | 80Ω (30~50MHz) |
| Operating Temperature | -20~+70℃, -40~+85℃ | |
| Storage Temperature | -40~+85℃ | |
| Shunt Capacitance | 5pF Typ. | |
| Aging (at 25℃) | ±3ppm /Year Max. | |
| Packing Unit | 1000pcs. | |

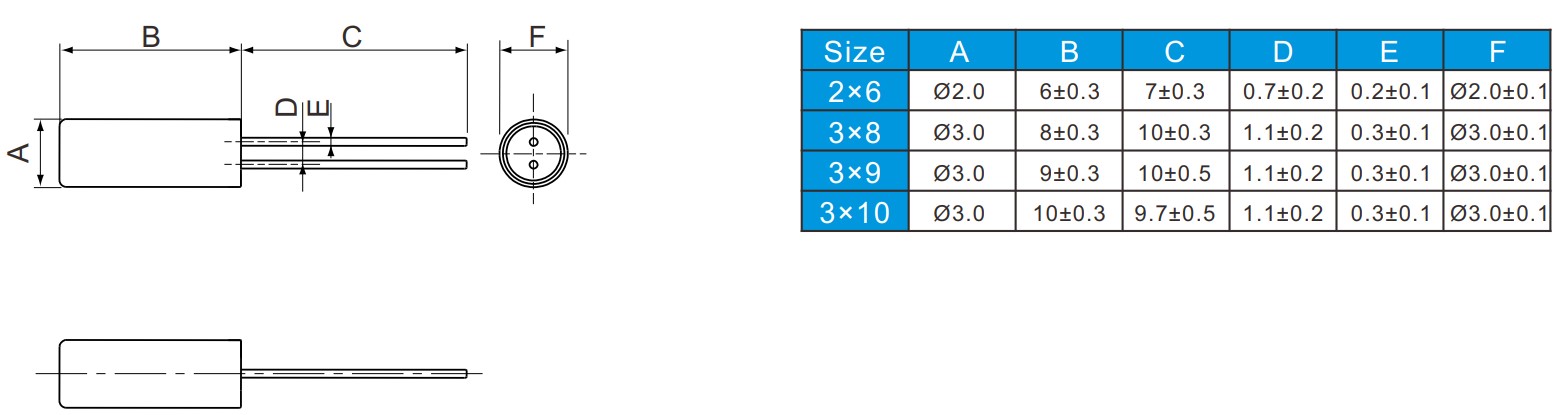

Dimensions [mm]
NOTE 1: Use tweezers if leads need to be bent.
NOTE 2: Soldering the cylinder body can deteriorate the crystal characteristics and should be avoided. Use rubber adhesive instead or leave without soldering.
