Categories | Waterproof Fiber Optic Connector |
---|---|
Place of Origin: | Zhejiang, China |
Brand Name: | DOWELL |
Model Number: | DW-2529 |
Supply Ability: | 10000 PCS Per 7 Days |
MOQ: | 1000 pieces |
Payment Terms: | T/T, Western Union, Paypal |
Delivery Time: | 7-15 Days |
Size: | 45x4.0x4.7mm |
Applicable Mode: | Single & Multimode |
Tight Buffer Diameter: | 250μm & 900μm |
Optical Fiber Diameter: | 125μm (G652D & G657A) |
Return loss: | ≤ -50dB |
Insert loss: | ≤ 0. 15 dB(1310nm & 1490nm& 1550nm ) |
Company Info. |
DOWELL INDUSTRY GROUP LIMITED |
Verified Supplier |
View Contact Details |
Product List |

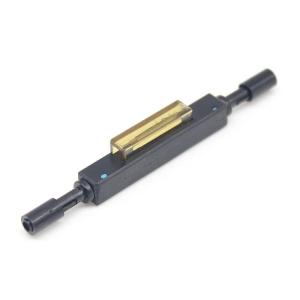

Singlemode Multimode Fibrlok Optic Fiber Mechanical Splice
Be applied to connect φ0.25--φ0.9 fiber/cable; take advantage of mature V-groove technologies, suitable for single mode and multimode; No fixture, operation time less than 1 minute; better performance than the imported products.
Specification:
Applicable for | φ0.25 mm &φ0.90 mm fiber |
Size | 45*4.0*4.7mm |
Optical fiber diameter | 125μm ( G652D & G657A ) |
Tight buffer diameter | 250μm & 900μm |
Applicable mode | single & multimode |
Operation time | about 10s (without fiber cut) |
Insert loss | ≤ 0. 15 dB(1310nm & 1490nm& 1550nm ) |
Return loss | ≤ -50dB |
Application:
1.1 FTTx,CO network restruction.
Relevant solutions:
2.1 Pigtail to on-site fiber, cable to cable, used in optical cross connection cabinet, ODF, cable splice closure, optical fiber splitting cabinet, 86 type outlet.
![]() |
