| Categories | Series 3S, SMD 3225 CMOS Output VCXO |
|---|---|
| Brand Name: | SJK |
| Model Number: | SJK-3S |
| Certification: | SGS, RoHS, REACH |
| Place of Origin: | China |
| MOQ: | 3000pcs |
| Price: | negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 70KKpcs/M |
| Delivery Time: | 4-6 wks |
| Packaging Details: | 3Kpcs/Reel |
| Model: | 3S Series (SMD 3225 VCXO) |
| Frequency range: | 50~200MHz |
| Output type: | CMOS |
| Supply voltage: | 3.3V |
| Size: | 3.2*2.5*0.95mm |
| Applications: | PC, FPGA, DSP, Smart grid, SATA, SAS, etc |
| Company Info. |
| Shenzhen Crystal Technology Industrial Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
SMD 3225 VCXO With CMOS Output 3.3V ±50ppm -40~+85℃ For FPGA
Features of 3S Series SMD 3225 VCXO
Voltage Controlled Crystal Oscillator (VCXO)
3225 size, 0.95mm hign SMD VCXO
CMOS output, output frequency range from 50MHz to 200MHz
Excellent low phase noise and jitter
3-state function available
Automatic mounting and reflow soldering
Applications: Base station, PC, FPGA, DSP, Smart grid, SATA, SAS, etc
RoHS Compliant /Pb-Free
Electrical Specifications Of 3S Series SMD 3225 VCXO
| Item /Type | 3S Series (SMD 3225 VCXO) |
| Output Type | CMOS |
| Output Load | 15pF, or specify |
| Supply Voltage | 3.3V |
| Frequency Range | 50~200MHz |
| Supply Current | 60mA Max. |
| Frequency Stability | ±25ppm, ±50ppm, or specify |
| Operating Temperature | -40~+85℃, or specify |
| Storage Temperature | -55~+125℃ |
| Voltage Vol (Max.) /Voh (Min.) | 0.1Vcc /0.9Vcc |
| Rise (Tr) /Fall (Tf) Time | 5ns Max. |
| Start-up Time | 10ms Max. |
| Duty Cycle | 45~55% |
| Absolute Pulling Range (APR)* | ±50ppm Min., or specify |
| Nominal Control Range | 0.5 Vcc |
| Control Voltage Range | 0~Vcc |
| Lineartiy | 10% Max. |
| Phase Jitter (12KHz~20MHz) | 1pS Max. |
| Packing Unit | 3000pcs./Reel |

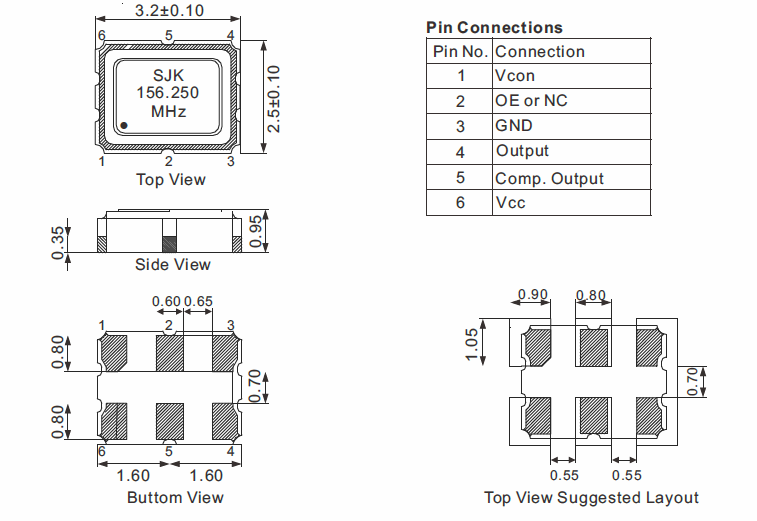

Dimensions[mm]
