| Categories | D-11, DIP Saw Resonator (3 Pin) |
|---|---|
| Brand Name: | SJK |
| Model Number: | D-11 433.92MHz |
| Certification: | SGS,ROHS,REACH |
| Place of Origin: | China |
| MOQ: | 1000pcs |
| Payment Terms: | T/T, |
| Supply Ability: | 30Kpcs per Month |
| Delivery Time: | 6-8weeks |
| Packaging Details: | 1000pcs |
| Model: | D-11 SAW Resonator |
| Frequency Tolerance: | +/- 50ppm |
| Insertion Loss: | 2.1dB Max. |
| Size: | 8.36u00d73.45u00d71.7mm |
| Number Of Pins: | 3 |
| Package Type: | DIP |
| Drive Level: | 100mW |
| Aging: | +/- 5ppm per year |
| Shunt Capacitance: | 5pF |
| Operating Temperature Range: | -20°C to +70°C |
| Frequency Stability: | +/- 50ppm |
| Load Capacitance: | 30pF |
| Storage Temperature Range: | -40°C to +85°C |
| Company Info. |
| Shenzhen Crystal Technology Industrial Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
Features
1-Port SAW Resonator
Metal Case D-11
Electrostatic Sensitive Device (ESD)
Package Size with 8.3*3.45*1.7mm
Application: Remote Control, Security, Alarm, etc.
RoHS Compliant & Pb Free
Specifications
| P/N | Center Frequency (MHz) | Frequency Tolerance (kHz) | Insertion Loss (dB) | Package Type |
| R303.825 | 303.825 | ±30 /±75 | 1.5 | D-11 |
| R303.875 | 303.875 | ±30 /±75 | 1.5 | D-11 |
| R315 | 315.000 | ±30 /±75 | 1.3 | D-11 |
| R316.8 | 316.800 | ±30 /±75 | 1.3 | D-11 |
| R330 | 330.000 | ±30 /±75 | 1.5 | D-11 |
| R350 | 350.000 | ±30 /±75 | 1.5 | D-11 |
| R360 | 360.000 | ±30 /±75 | 1.4 | D-11 |
| R370 | 370.000 | ±30 /±75 | 1.5 | D-11 |
| R390 | 390.000 | ±30 /±75 | 1.4 | D-11 |
| R418 | 418.000 | ±30 /±75 | 1.5 | D-11 |
| R433 | 433.920 | ±30 /±75 | 1.5 | D-11 |
| R868.35 | 868.350 | ±75 /±150 | 2.1 | D-11 |
For other frequencies and specifications, please contact our sales department.

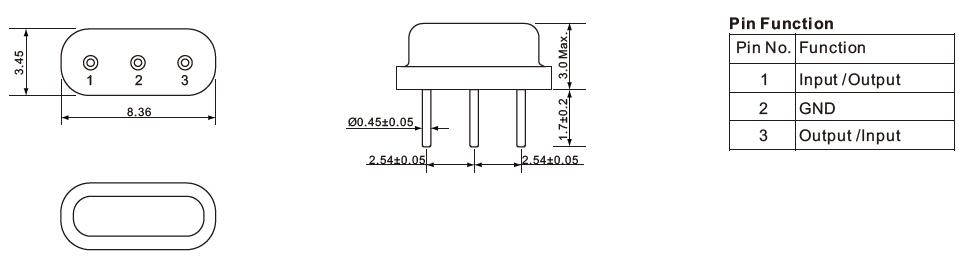

Dimensions [mm]
