| Categories | Motor Direct Drive Gear Units |
|---|---|
| Brand Name: | Giant Precision |
| Model Number: | LHT-32-XX-U-I |
| Certification: | ISO9001 |
| Place of Origin: | China |
| MOQ: | 1 set |
| Price: | To Be Negotiated |
| Payment Terms: | T/T |
| Supply Ability: | 20000 Sets per Month |
| Delivery Time: | 3-4 Weeks |
| Packaging Details: | Carton Box |
| Product: | LHT - I Model 32 Harmonic Reducer |
| Components: | Wave Generator, Flexspline, Circular Spline |
| Reduction Ratio: | 50:1 to120:1 |
| Backlash: | ≤20 Arc Sec |
| Maximum Input Speed: | 4800 r/min |
| Average Input Speed: | 3500 r/min |
| Design Life: | 15000 hours |
| Weight: | 2.54kg |
| Application: | Robotics, Aerospace, Medical Devices, New Energy Industry |
| Features: | High Gear Ratios, Zero Backlash, High Torque Capacity, Compact and Lightweight, Smooth Motion, Load Distribution |
| Warranty: | 1 Year |
| Company Info. |
| Suzhou Giant Precision Industry Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
 | Zero Backlash Low Backlash Harmonic drives offer extremely low to zero backlash, enhancing positioning accuracy and repeatability, which is essential in precision applications like robotics and CNC machinery. Reliability and Durability Long Lifespan Due to the efficient load distribution and robust design, harmonic drives are highly reliable and durable, making them suitable for demanding applications. Flexibility in Design Customizable Harmonic drives can be customized to fit specific application needs, offering flexibility in terms of size, ratio, and integration. |

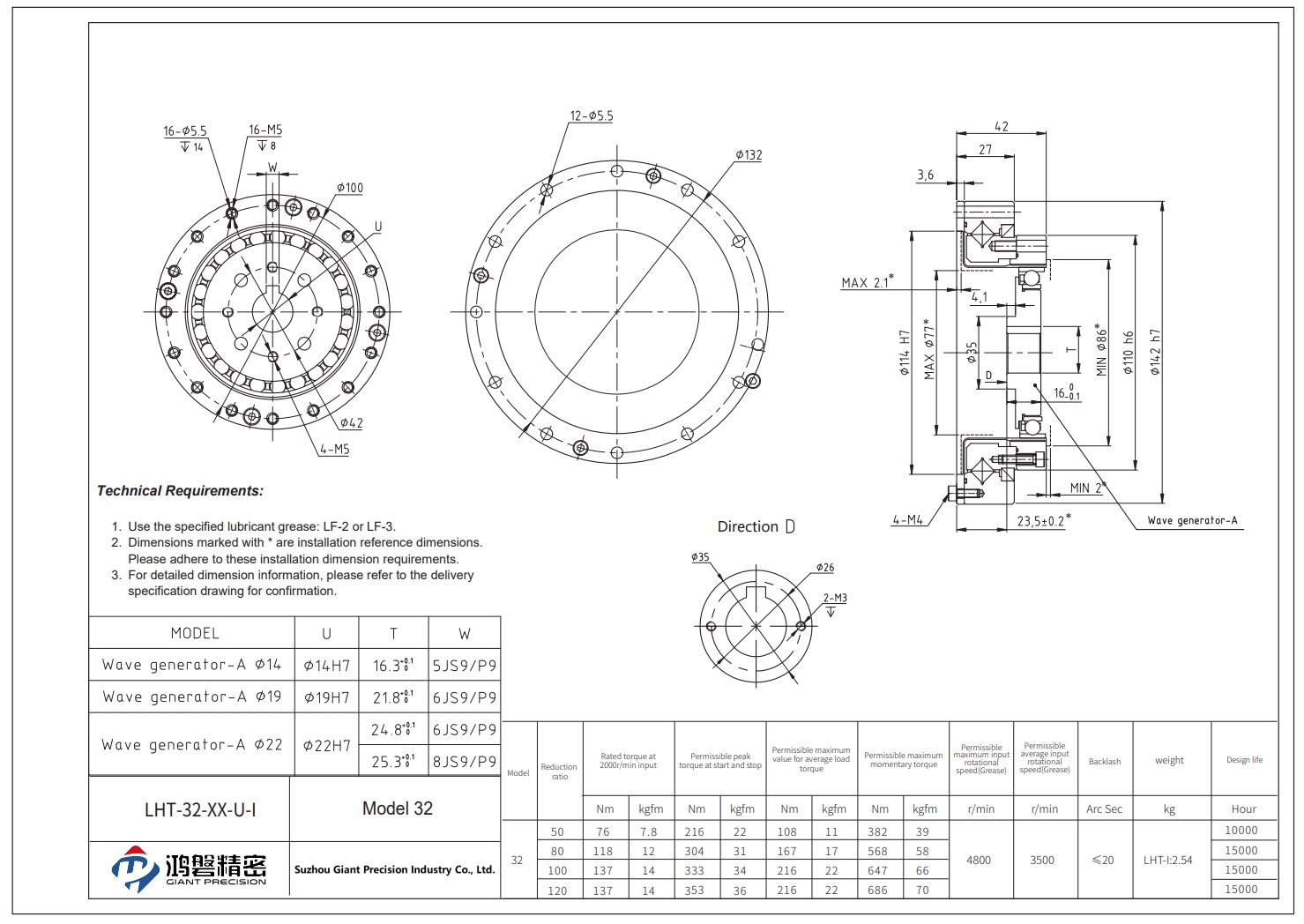

| Model | 32 | |||||
| Reduction ratio | 50 | 80 | 100 | 120 | ||
| Rated torque at 2000r/min input | Nm | 76 | 118 | 137 | 137 | |
| kgfm | 7.8 | 12 | 14 | 14 | ||
| Permissible peak torque at start and stop | Nm | 216 | 304 | 333 | 353 | |
| kgfm | 22 | 31 | 34 | 36 | ||
| Permissible maximum value for average load torque | Nm | 108 | 167 | 216 | 216 | |
| kgfm | 11 | 17 | 22 | 22 | ||
| Permissible maximum momentary torque | Nm | 382 | 568 | 647 | 686 | |
| kgfm | 39 | 58 | 66 | 70 | ||
| Permissible maximum input rotational speed (Grease) | r/min | 4800 | ||||
| Permissible average input rotational speed (Grease) | r/min | 3500 | ||||
| Backlash | Arc Sec | ≤20 | ||||
| Weight | kg | 2.54 | ||||
| Design life | Hour | 10000 | 15000 | 15000 | 15000 | |
 | Key Attributes of LHT - I Model 32 Harmonic Gear Units | |||
| Product | Model 32 Harmonic Drive | |||
Components | Wave Generator, Flexspline, Circular Spline | |||
Reduction Ratio | 50:1, 80:1, 100:1, 120:1 | |||
Backlash | Less than 20 Arc Sec | |||
Average Input Speed | 4800 r/min | |||
Max Input Speed | 3500 r/min | |||
Design Life | 15000 hours | |||
Model | 32 | |||
Weight | 2.54 kg | |||
| Warranty | 1 Year | |||
|
