KPS2000 Series Piezoelectric Jetting Valve (Upgraded) Acoustics Semiconductor Optics Medical Stable and Consistent

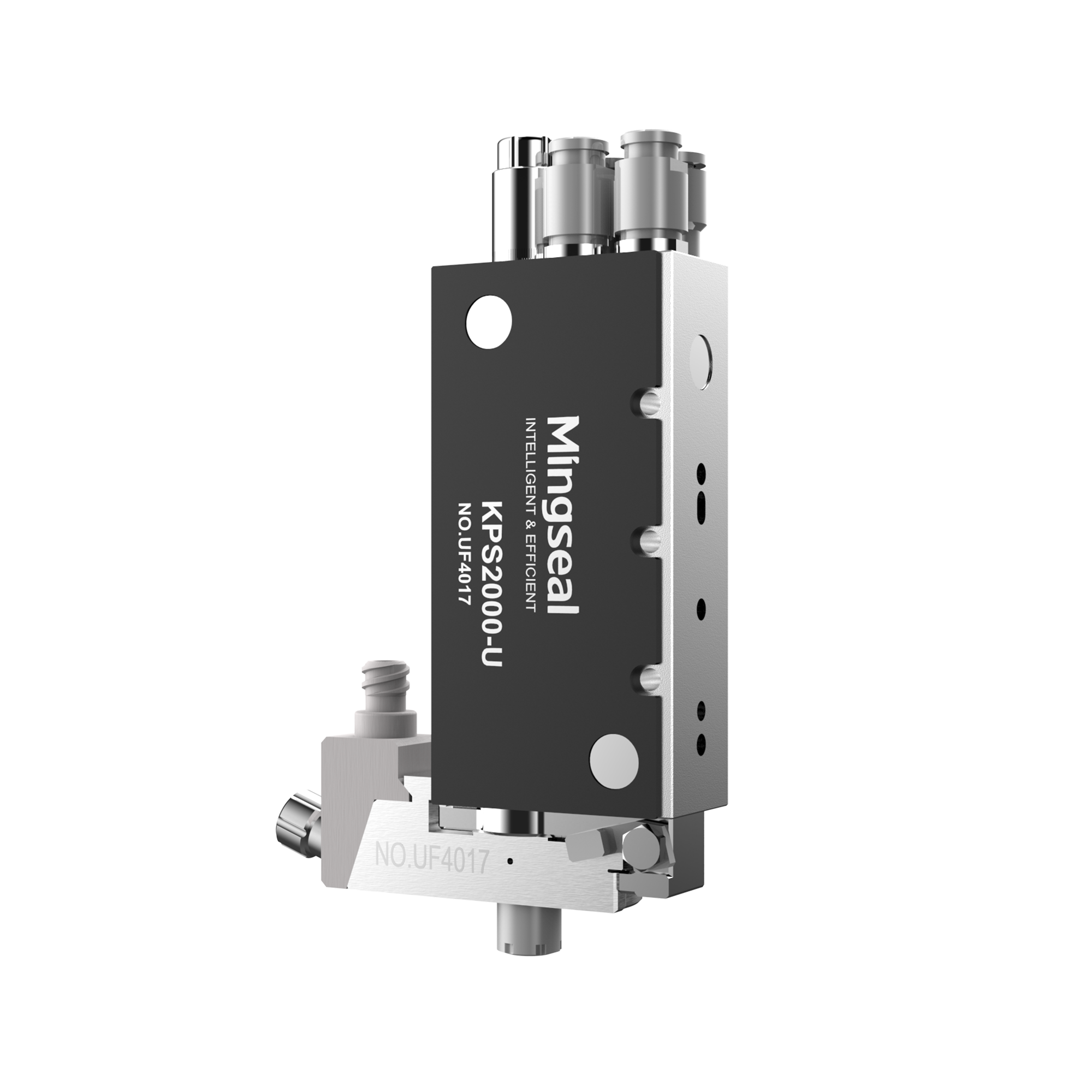

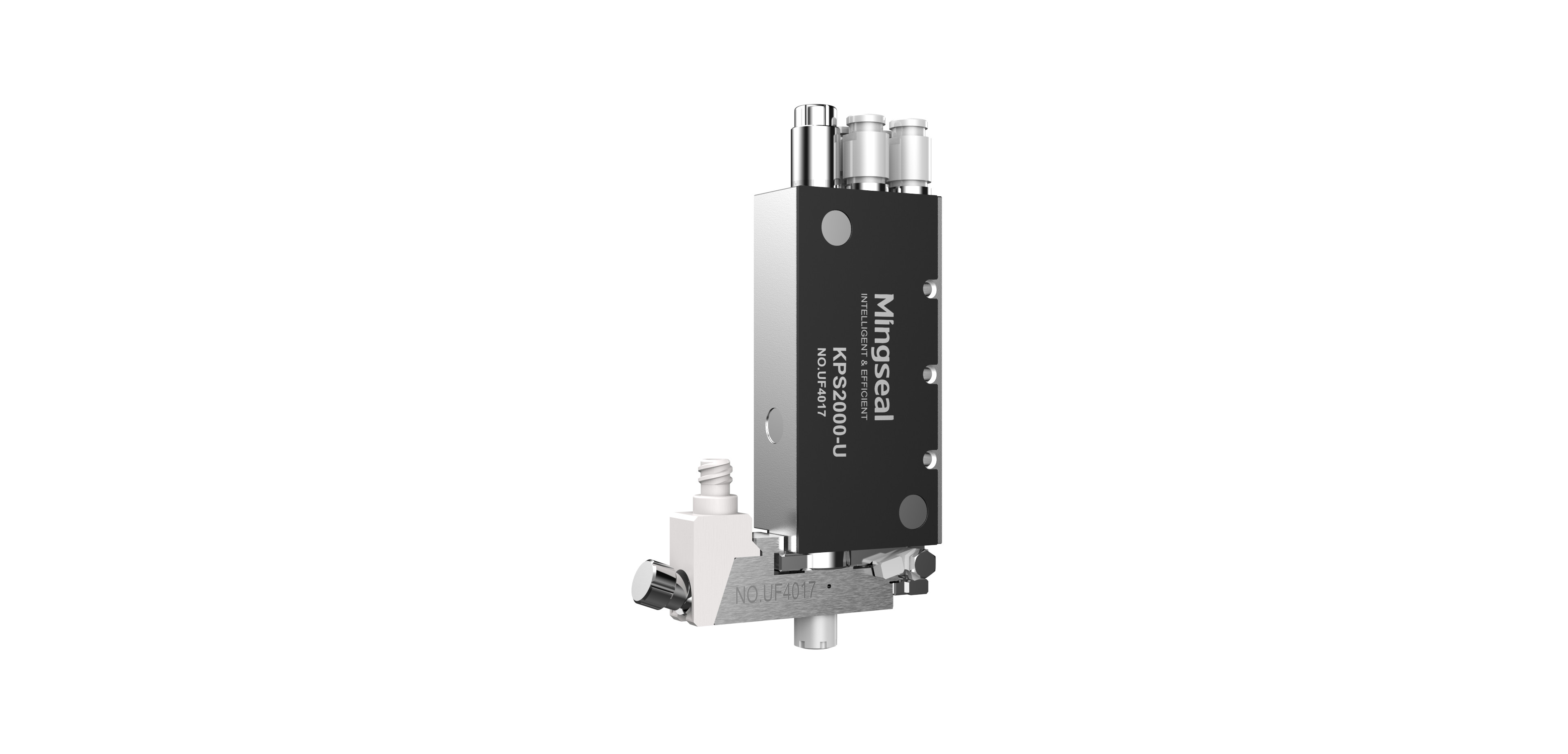

KPS2000 Series Piezoelectric Jetting Valve (Upgraded)

Features and Advantages

Stable and Consistent Dispensing

higher-viscosity glue (up to 500000cps) can be supported.

Lower Usage Costs

With integrated design of nozzle seat, 1 sealing ring + 1 nozzle

sealing seat + 1 installation tool are reduced to decrease

maintenance and usage costs.

Faster Process Recovery Capability

Auxiliary enhanced version of ADJ calibration function and

repeAfter routine cleaning and assembly, jetting can be done

directly without ADJ calibration, and the process recovery

time is less than 2 minutes.atability of 0.01mm.

Technical Specification

KPS2000 Plezoelectric Jetting Valve						KPC2000 Plezoelectrie Jeting Valve Controller
Supply Pressure Range	0.1～8 Bar					Rated Power Supply			AC 220V±20%
Vlscoslty Range	Medium and high viscosity up to 500000mpas					Dispensing time and min.step 0.01ms-6000.00ms,0.01ms
Maimum Jetting Freq	1200H2					Jetting Freq			1~1200HZ
Working Temp.Range	10～50℃					Display			TFT color screen
Corrosion Resistance	All water-based glue,organic solvents,weak acids and alkali					Parameters memory			10 sets
Valve Dimensions	125.5×40×20mm(w/o runner)					Reserved Interface			Supporting STD.RS232/RS485 MODBUS RTU agreement
	125.5×75×20mm(runner assembled )					Controller Weight			3.55KG
Valve Weight	430g(with runner,w/o cable)					Controller Dimensions			232×170×165mm
Supply Pressure Range	0.1～8 Bar					Rated Power			275W
