General

Base station dedicated DC energy meter AMC16-DETT is specially designed for base stations where have sharing requirements, and switch power supply is without the function of sub-user metering.The meter could measure6 circuits DC energy, and supply working current to the matched hall sensors. Meanwhile, it can realize zero drift calibration by upper computer software.have the functions of telemetering,teleindication,teleadjusting, metering at real time,energy quality abnormal alarm, data storage and processing, data interaction.

Characteristics

Communication Single channel RS485 communication protocol Standard or customized Rated U and I:Total 200A/5V Accuracy 1%In≤I≤10%In error±2.5%;I>10%In error±2% Power consumption:≤2W( no hall power supply output) Voltage range:-40V~-60VDC

Power supply output +12V/100Ma, -12V/50mA Power consumption ≤2W( no hall power supply output) Dimension(L*W*H):89.7*87.8*52mm Installation:DIN 35 mm Clock:≤0.5S/d(23℃), ≤1S/d(-20℃-60℃) Current:1.2 times continued

Front Panel

① Digital input ② Brand/Model ③ Panel ④ Digital output ⑤ Pluse output

Wiring

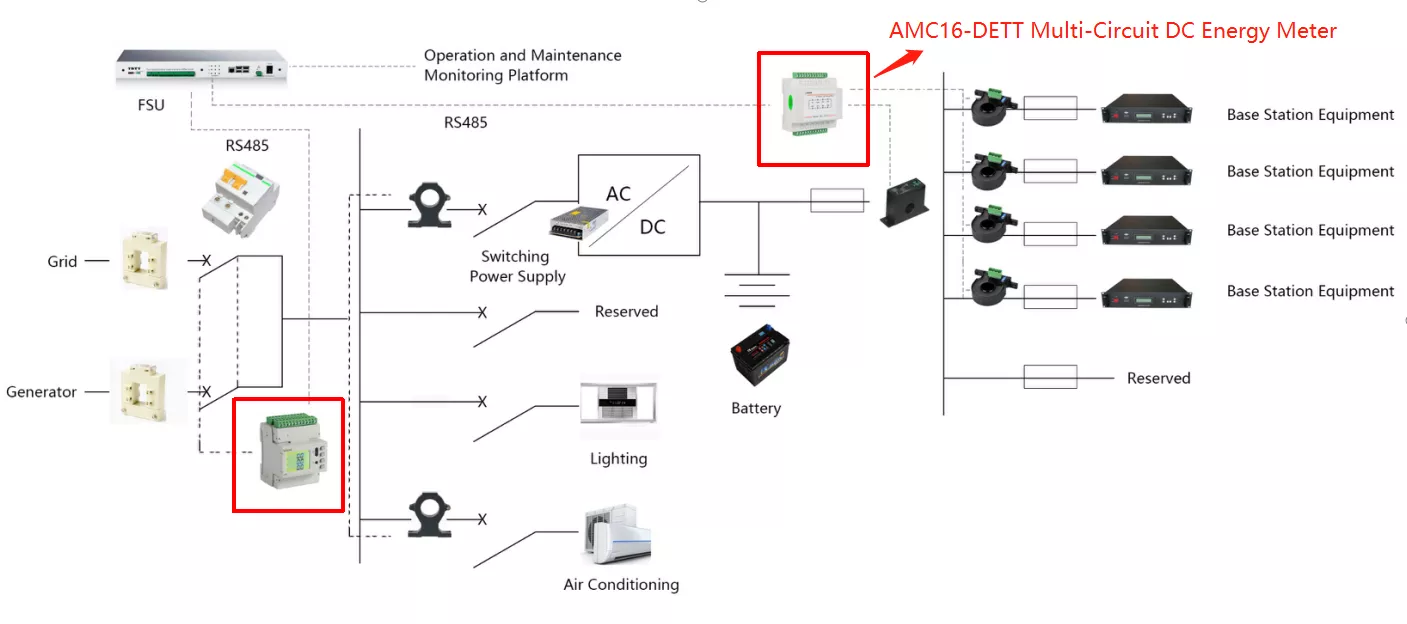

Connection
