Categories | Compressed Air Dryers |
---|---|
Brand Name: | Atlas |
Model Number: | F6 |
Certification: | ISO 8573-1 CLASS 0 |
Place of Origin: | China |
MOQ: | 5pcs |
Price: | be negotiated |
Payment Terms: | L/C, T/T, D/A, Western Union, D/P |
Supply Ability: | 100pcs per month |
Delivery Time: | 7~30days |
Packaging Details: | Atlas standard packing |
Material: | Aluminum Alloy |
Model: | F6 |
Brand: | Atlas |
Inlet Capacity: | 0.36m³/min |
Maximum Working Pressure: | 13 bar |
Rated Power: | 0.22 kW |
Weight: | 30 kg |
Warranty: | 1 year |
Company Info. |
CEBE GROUP HK CO.,LTD |
Verified Supplier |
View Contact Details |
Product List |

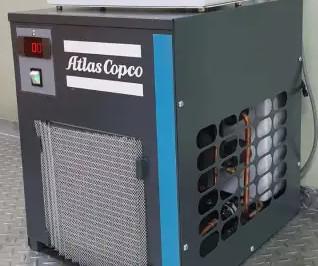

Atlas Cools Compressed Air Dryers F6 Refrigerant Dryer Clean Air
Click to open our catalog:F6-400 wuxi leaflet EN-.pdf
Dry, clean air: reliable, safe production
The Atlas F dryer cools compressed air to remove all moisture:
- Protect your tools
- Safeguard your products
- Minimize maintenance
- Reduce costs
Features & Benefits
Great performance and reliability
• Lower production and product failure rate
• Steady pressure dewpoint
• Quality rotary compressor with low power requirements
• Efficient and reliable 3-1 heat exchanger
• Hot gas bypass valve saves energy
Cost Savings
• Your tools last longer
• Fewer system and tool repairs
• Low maintenance Easy installation and operation
• Plug and play
Easy installation and operation
• Plug and play
• Only one electrical connection
• Digital controller with easy pressure dewpoint display
Environment-Friendly
• Low power consumption
• Low impact R134a/R410a refrigerant
TECHNICAL SPECIFICATIONS
Model | Inlet capacity | Pressure drop | Rated Power | Maximum working pressure | Dimension(mm) | Weight | Compressed air connections | ||
l/s | bar | kW | bar | L | W | H | kg | ||
F6 | 6 | 0.28 | 0.22 | 13 | 430 | 354 | 463 | 30 | G 3/4" F |
![]() |
