| Categories | Linear LED Wall Washer Light |
|---|---|
| Brand Name: | COMI LIGHTING |
| Model Number: | B6RB3656 |
| Certification: | CE ,ROSH |
| Place of Origin: | CHINA |
| MOQ: | NO MOQ |
| Payment Terms: | T/T, Western Union, D/P, D/A, L/C, MoneyGram |
| Delivery Time: | 5-8 working days |
| Input Voltage: | AC100-240V,24DC |
| Function: | Optional ON/OFF, PWM, DMX |
| Color Or Cct: | 2700-6500K |
| Installation: | Surface Mount, screws fixed |
| Bracket: | Standard Low Bracket / High Bracket |
| Working Temperature: | -20℃-+45℃ |
| Color: | Single Color or RGB Color |
| Led Brand: | Cree, Epistar, Osram |
| Ip Rate: | IP65 |
| Led: | 36pcs 1W Osram |
| Materials: | Aluminum +Tempered Glass Cover |
| Le Quantity: | 18pcs,24PCS,36PCS |
| Company Info. |
| COMI LIGHTING LIMITED |
| Verified Supplier |
| View Contact Details |
| Product List |

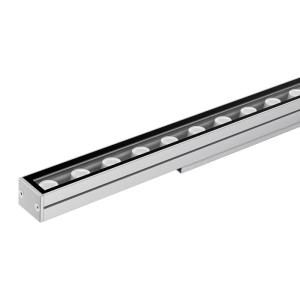

The COMI Landscape Lighting B6RA-series IP65 LED linear wall
washing light bar are ideal for the illumination of large surfaces,
e.g. facade lighting for buildings or walls in outdoor areas. They
are also suitable for ambient lighting in indoor applications.
Because of the RGB 3-in-1 or RGBW 4-in-1 high power LEDs the
B6RA-series IP65 LED Linear Light bar offers homogeneous color
mixing.
Features and Benefits:
▪ Cross sectional dimensions for lamp housing :W42*H35mm.
▪ Length available in:300mm, 500mm, 784mm, 1000mm and etc.
▪ LED brand:Cree, Osram, or Lumileds and etc.
▪ Light source (for 1000mm): 18pcs, 24pcs, 36pcs.
▪ Light color options: single color, RGB, RGBW.
▪ Power: 18W, 24W, 36W, 48W(24LEDs, RGBW)
▪ Input voltage: 24VDC or 110-240Vac input voltage.
▪ Installation by angle adjustable and side to side adjustable
bracket.
▪ Control method: ON/OFF or DMX 512(For other way, please inquire
separately).
▪ Materials: aluminum alloy.
▪ Finished color: anodized silver finished color.
▪ Inline external waterproof driver on back of fitting for
100-240VAC version.
▪ 35000hrs@70% Lumen depreciation.
▪ IP Rate: IP65.
▪ Applicable environment temperature: -20 ℃~+50℃.
▪ Standard 3 Years warranty.
▪ Compliance:CE RoHS.
Material Specifications for IP65 Outdoor LED Wall washer:
| Housing | Silver Anodized Aluminum Alloy |
| Lens | Optical lens, efficiency≥90% |
| Light Window Glass | Step tempered glass.T=4mm |
| Cable Gland | IP-68 PG-9 PVC |
| Gasket | Glass and housing are silicone sealed |
| LED | CREE, OSRAM, LUMILEDS |
| Operating Temperature | -20˚C~+50˚C |
| Bracket | Aluminum |
| Power Cable | H05RN-F 2×1.0mm², L=0.5m(24VDC) H05RN-F 3×1.0mm², L=0.5m(high voltage) H05RN-F 4×0.75mm², L=0.5m(for RGB) H05RN-F 5×0.75mm², L=0.5m(for RGBW or DMX512) |
| Controllable Support | ON/OFF, DMX512 or PWM |
Technical Specifications for IP65 Outdoor LED Linear Light for Facade Lighting:
Item Number | Light source | CRI (White) | Optional Color | Lens Degree Selected (Θ1/2) | Length L=(mm) | Input Voltage (V) | Typical Operating Current(mA) | Typical Power(W) | Typical Luminance(lm) | IK rate |
B6RA1856(Mono) B6RA1816(RGB) | 18×1W LUMILEDS LED | Ra>80 | Single, or RGB (6R/6G/6B) | 8°, 12.5°, 20°, 30°, 60°, 15×30°, 10×60° | 1000 | 24Vdc, 120/240 | 24V=750 120V=150 240V=75 | 18 | Cool white=1790 Warm white=1432 | 05 |
| B6RA2456(Mono) B6RA2416(RGB) | 24×1W LUMILEDS LED | Ra>80 | Single, or RGB (8R/8G/8B) | 8°, 12.5°, 20°, 30°, 60°, 15×30°, 10×60° | 1000 | 24Vdc, 120/240 | 24V=1000 120V=200 240V=100 | 24 | Cool white=2281 Warm white=1824 | 05 |
| B6RA3656(Mono) B6RA3616(RGB) | 36×1W LUMILEDS LED | Ra>80 | Single, or RGB (12R/12G/12B) | 8°, 12.5°, 20°, 30°, 60°, 15×30°, 10×60° | 1000 | 24Vdc, | 24V=1500 120V=300 240V=150 | 36 | Cool white=3420 Warm white=2735 | 05 |
| B6RA1820 | 18×2W Cree or Osram RGBW 4-in-1LED | Ra>80 | RGBW 4-in-1 Full Color | 20°, 40°, 60°, 15×60°, 15×25° | 1000 | 24Vdc | 1500 | 36 | 1429 | 05 |
| B6RA2420 | 24×2W Cree or Osram RGBW 4-in-1LED | Ra>80 | RGBW 4-in-1 Full Color | 20°, 40°, 60°, 15×60°, 15×25° | 1000 | 24Vdc | 2000 | 48 | 1960 | 05 |
Notes:
1. Length avaialble: 300mm, 500mm, 784mm, 1000mm and etc.
2. Please choose one of input voltage for single color version:
24VDC, or 220~240Vac, or 110~240VAC.
3. Specifications are subjected to change without notice.
|
