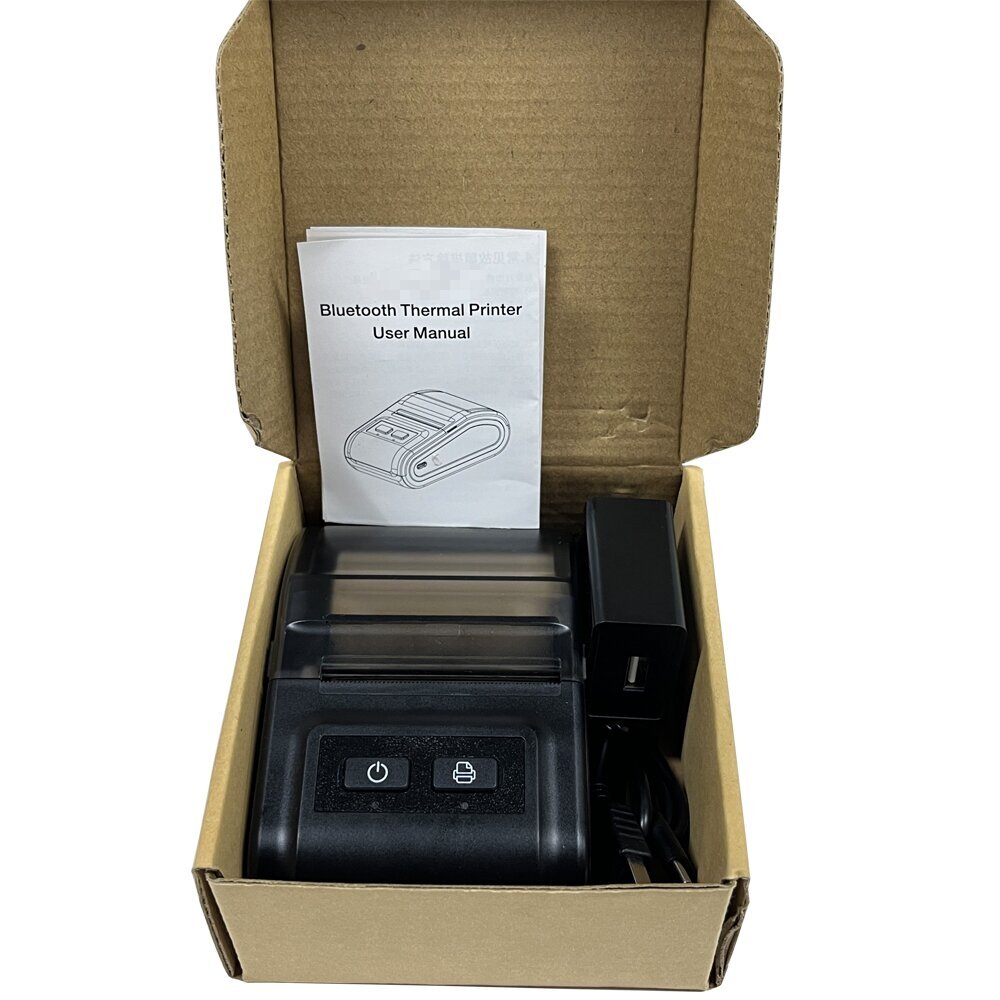

58mm portable handheld printer bluetooth with rechargeable battery

58mm portable handheld printer bluetooth with rechargeable battery

Product Description
Features:

• roll diameter: 58 mm

• extreme exquisite lightweight structure design is easy to carry

• easy paper structure is easy to use and maintenance

• equipped with large capacity rechargeable lithium battery 7.4V, 1200 Ma

• 1.2 meters cement ground height of fall

Multiple wired and wireless interfaces optional

• support the client local program upgrade

• equipped with Windows computer end drive

• equipped with WM, dynamic link library Android platform

• Bluetooth host function

Applications:

• copy watch - electrical water meter charge

• Insurance - insurance field fast loss

• warehousing, inventory / distribution / warehousing

• parking - confirm parking time charge of Statistics

• logistics, express transportation invoices / goods delivery order

• mobile sales - ticket / fast consumer goods such as mobile sales

• police and police / management / business field Enforcement / health supervision

Parts list

• • • • leather belt buckle battery serial line USB interface line • rolls • charger

Detail specification

Print line thermal

The printing speed of 70 mm / s.

Effective print width 58 mm

The density of 8 / mm, 384 point / line

Printing character ANK: 8 x 16, 12 x 24 GBK:16 x 16, 24 x 24

Characters per line ANK: 48, 32 GBK:24, 16

The paper type thermal label paper

Paper width of 58mm(2 inch)

Paper roll diameter: 40 mm

Roll core diameter of 15 mm (minimum)

Paper thickness 0.12 mm

The paper simple paper

The life of the printhead 50 km

Bar code 1-D:UPC-A, UPC-E, EAN-13, EAN-8, CODE39, ITF25, CODABAR, CODE93, CODE128

2-D:QR Code

ESC/POS instruction set

Interface USB, Bluetooth,

Power supply AC00-250V/1.0A

DC7.4V battery, rechargeable lithium battery 1.5A

The weight of 197 grams (not including rolls, including the battery)

Dimensions (WxLxH) 115mm*75mm*45mm

Working temperature -10 ~ 50 ° C

Storage temperature -20 ~ 70 ° C

Work humidity 20 ~ 85%

Storage humidity 5 ~ 95%

Our company has the core platform motherboard design ability, motherboard, appearance mold are independent design and development. Have the ability to modify the core operating system. The company is engaged in this kind of related technology 13 years of experience in product design and development personnel. The products are mainly based on the Android platform, involving bar code, RFID, fingerprint, printing, UHF, LF, HF, industrial tablet computer, etc., after strict testing, users have China Power, Shanghai Automobile, Foxconn, BYD, Industrial and Commercial Bank of China and other large enterprises. Welcome to choose. We will provide you with quality products and services. The main products include: Android PDA, handheld scanning and printing machine, industrial tablet computer, bar code handheld terminal, RFID handheld, RFID reader, optical fingerprint tablet, HF handheld, LF low frequency 134.2K handheld, UHF industrial tablet, UHF module, UHF card, etc. Our products are diversified in configuration and stable in performance. Companies adhering to the customer first, forge ahead of the business philosophy, adhere to the principle of customer first to provide our customers with quality service. Welcome! Shenzhen Jizan Technology Co., LTD., referred to as Jizan Technology, is a leading domestic intelligent handheld terminal equipment manufacturing and sales enterprises. Have a deep technical background in intelligent terminal product development and customization functions. Focus on the commercialization of Internet of Things industry technology and provide excellent services. It has taken a leading position in the fields of handheld mobile intelligent terminals, Internet of Things and industrial PDAs.
