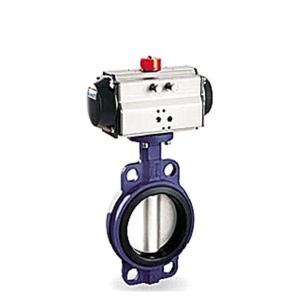

PTFE Seat Wafer Ductile Iron Single Acting Air Actuator Butterfly Valve
Product Description:
Wafer Ductile Iron Single Acting Air Actuator Butterfly Valve/Anti-corrosive/PTFE Seat
Description:
This butterfly valve adopts polytetrafluoroethylene (PTFE) as anti-corrosion lining material which has
very superior anti-corrosion and abrasion resistance. The unique structure of upper lip type elastic seal
lining well extends service life of the product.
Pneumatic piston actuator is divided into spring-type and
spring-free type. When the valve is required to
be fully opened or closed under fault it is equipped with spring type (by restoring tension of spring).
When it is required to maintain position under fault it is equipped with no spring type.
Features:
*Small volume and light weight easy to disassemble and maintain and
can be installed in any position
*Linearity flow characteristics,Excellent regulated performance
*Simple and compact structure
Specification:
Power supply | AC220V |
Nominal diameter | DN40-800 |
Fluid temp. | -50ºC-160ºC(No coagelation) |
Nominal pressure | PN1.0~1.6(MPa) |
Control mode | Regualtion / Switch to on-off |
Connection type | Flange Wafer |
Body material | WCB,QT450-10,HT200,HT250 |
Disc material | WCB,QT450-10,HT200,HT250 |
Seal ring | PTFE |
Actuator material | Aluminum alloy |
Design standard | GB/T 12238 / API 609 / MSS SP-67 |
Suitable fluid | Acid alkali salt chlorine gas steam source water mine pulp and paper pulp aqua regia oxidant corrosive chemical liquid |
Standards of product
Design and manufacture standard | GB12237-89 AP16D |
Flange standard | JB79 GB9113 ANSI B16.5 JIS B2212 |
Length standard | GB1221-89 |
Inspection standard | JB/T 9092 API598 |
CV data of centerline butterfly valve
Size | mm | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 | 700 | 800 | 900 | 1000 | 1200 |
| inch | 2" | 2.5" | 3" | 4" | 5" | 6" | 8" | 10" | 12" | 14" | 16" | 18" | 20" | 24" | 28" | 32" | 36" | 40" | 48" | |
| CV data Full 90°Open | 135 | 220 | 302 | 600 | 1022 | 1579 | 3136 | 5340 | 8250 | 11917 | 16388 | 21705 | 27908 | 43116 | 49500 | 68250 | 86375 | 119750 | 187300 | |

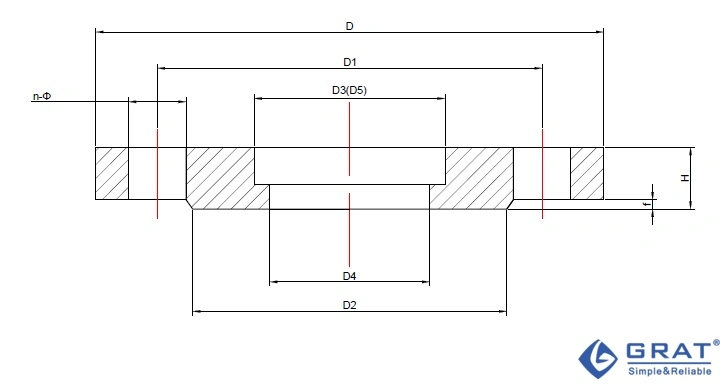

Figure and connection size
| Size(mm) | D | D1 | D2 | D3 | D4 | n-Φ | H | f | D5 | b |
| 50 | 165 | 125 | 59 | 52 | 52 | 4-Φ 18 | 20 | 3 | 62 | 8 |
| 65 | 185 | 145 | 122 | 75 | 67 | 4-Φ 18 | 20 | 3 | 78 | 8 |
| 80 | 200 | 160 | 133 | 91 | 82 | 8-Φ 18 | 20 | 3 | 91 | 8 |
| 100 | 220 | 180 | 158 | 110 | 102 | 8-Φ 18 | 22 | 3 | 116 | 8 |
| 125 | 250 | 210 | 184 | 135 | 127 | 8-Φ 18 | 22 | 3 | 142 | 8 |
| 150 | 285 | 240 | 212 | 161 | 152 | 8-Φ 22 | 24 | 3 | 170 | 10 |
| 200 | 340 | 295 | 268 | 221 | 208 | 12-Φ 22 | 26 | 3 | 221 | 10 |
| 250 | 405 | 355 | 320 | 275 | 255 | 12-Φ 26 | 29 | 3 | 275 | 10 |
| 300 | 460 | 410 | 370 | 327 | 308 | 12-Φ 26 | 32 | 4 | 326 | 14 |
| 350 | 520 | 470 | 430 | 379 | 355 | 16-Φ 26 | 34 | 4 | 358 | 14 |
| 400 | 580 | 525 | 482 | 429 | 405 | 16-Φ 30 | 36 | 4 | 409 | 14 |
| 450 | 640 | 585 | 532 | 481 | 455 | 20-Φ 30 | 38 | 4 | 460 | 16 |
| 500 | 715 | 650 | 585 | 532 | 505 | 20-Φ 33 | 42 | 4 | 511 | 16 |
| 600 | 840 | 770 | 685 | 633 | 605 | 20-Φ 36 | 44 | 5 | 613 | 18 |

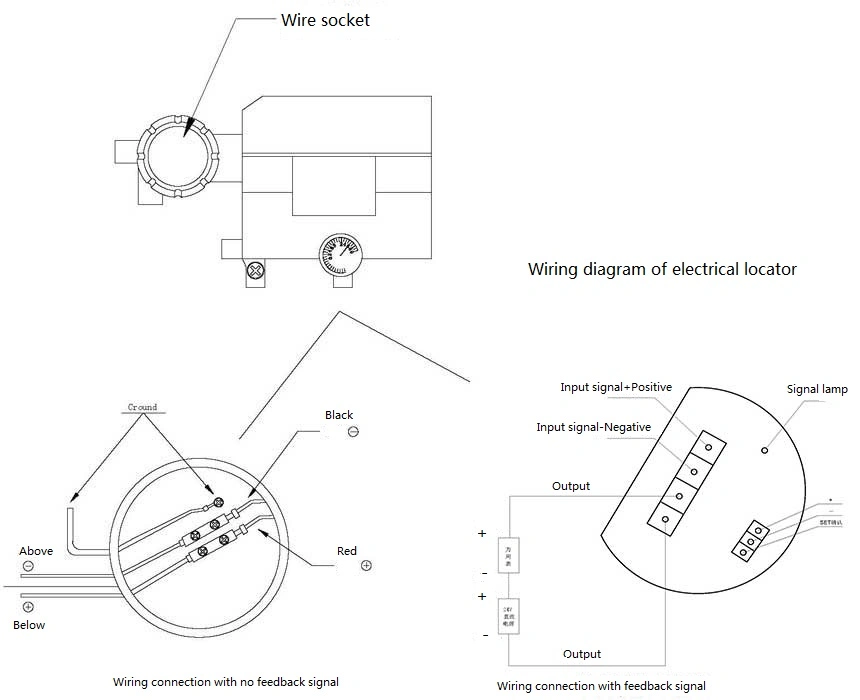

Locator wiring diagram- Regulation type

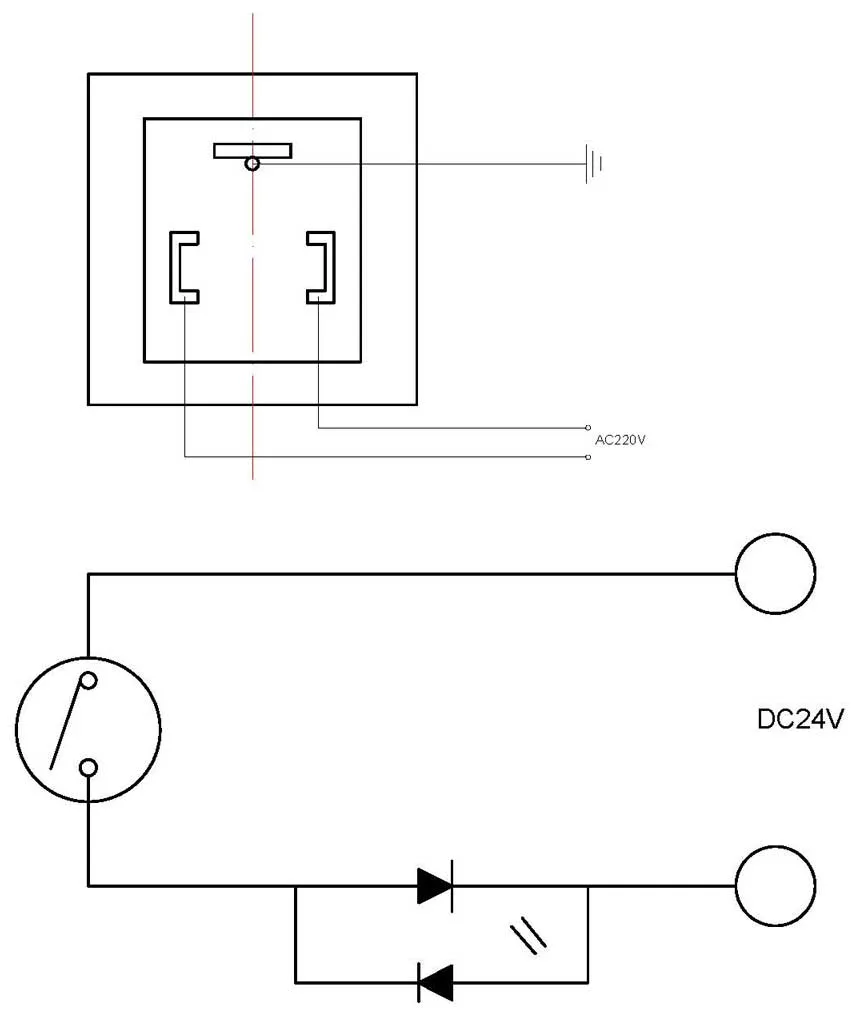

Soleniod valve wiring diagram- On-off type
Packing & Shipping:
1.Packing: inner with bubble wrap,outer with cardboard box and
wooden case.
2.Transportation:by sea, by air,by train.
If you have other requirements, please feel free to tell us.
|
